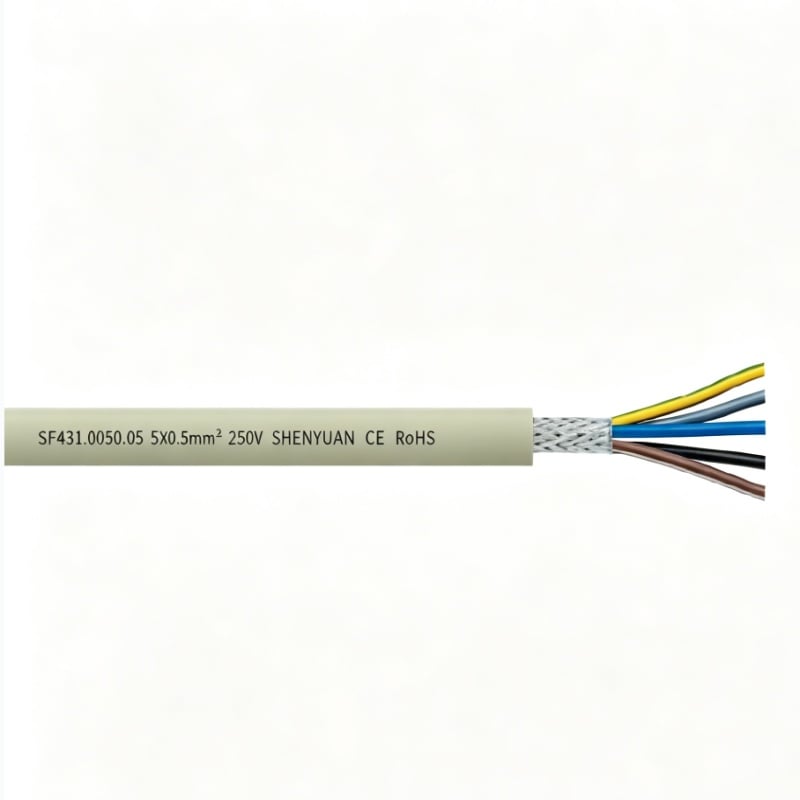

High Speed Drag Chain Data Cables (PVC Sheath) SF430
Cable Construction
Stranded fine bare copper conductors complying with IEC 60228 for fine strand flexible copper
TPEE elastomer insulation
Coloured cores complying with DIN47100
Optimized layered stranding
PVC TM4 sheath
Light grey (RAL 7032)
Properties
Flame retardant complying with IEC 60332-1-2
Oil resistant acc. to EN50290, 70℃, 4 h
UV resistant; black sheath available
Optional Enhancements
-40 ℃ low temperature resistant compound for cold environment applications
105 ℃ high grade compound for high temperature environment applications
High oil resistance PVC for oily condition applications

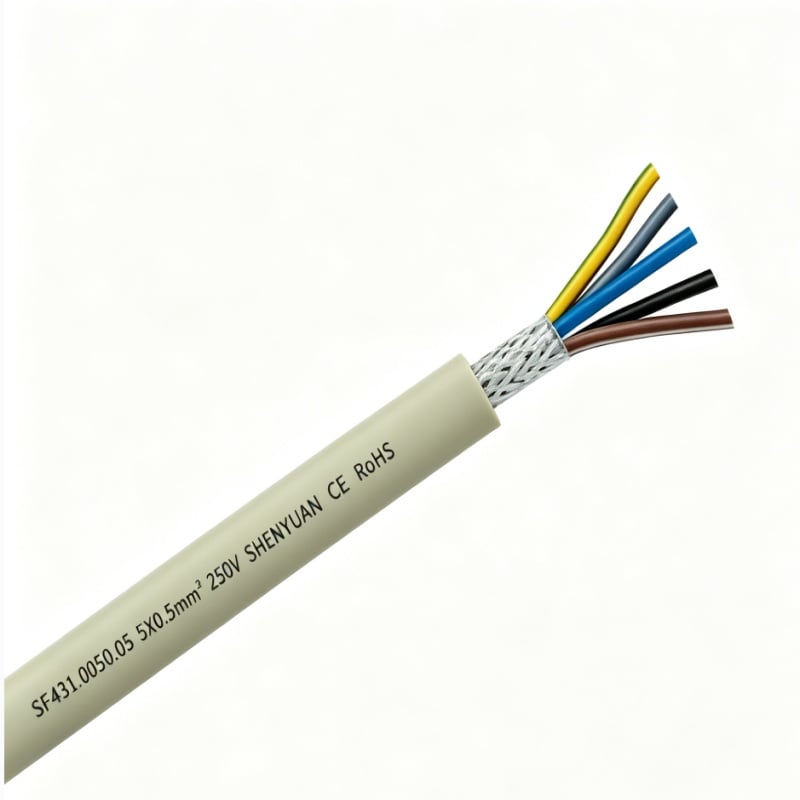

Corresponding shielded version: SF431
ETFE insulation option for extended service life
Product Features
Designed for harsh environment applications
Short stranding pitch for conductors
Fatigue resistant, highly abrasion resistant insulation
Core twist relief design to reduce mechanical stress
Suitable for twist optimized cable stranding
High toughness, high elasticity, abrasion resistant outer sheath
Applications
These cables are designed for drag chain applications without heavy gravitational torsion load. Suitable for indoor dry and damp environments; not suitable for open air outdoor use. As data cables, they apply to long travel moving devices requiring stable data transmission under repeated flexing, such as CNC machine tools, electronic equipment, computers, measuring instruments and automated warehouses. Also fit robot arms and robot bodies with ±180° torsional motion.
| Material Code | Size mm2 | OD mm | Copper Weight kg/km | Cable Weight kg/km |
| SF430.0014.02 | 2X0.14 | 4.1 | 2.6 | 20.4 |
| SF430.0014.03 | 3X0.14 | 4.2 | 3.9 | 22.9 |
| SF430.0014.04 | 4X0.14 | 4.5 | 5.2 | 26.3 |
| SF430.0014.05 | 5X0.14 | 4.8 | 6.5 | 30.1 |
| SF430.0014.06 | 6X0.14 | 5.1 | 7.8 | 32.8 |
| SF430.0014.07 | 7X0.14 | 5.4 | 9.1 | 36.8 |
| SF430.0014.08 | 8X0.14 | 5.7 | 10.4 | 41.0 |
| SF430.0014.09 | 9X0.14 | 6.0 | 11.7 | 45.4 |
| SF430.0014.10 | 10X0.14 | 6.3 | 13.0 | 49.9 |
| SF430.0014.12 | 12X0.14 | 6.9 | 15.6 | 59.4 |
| SF430.0014.14 | 14X0.14 | 6.5 | 18.2 | 55.5 |
| SF430.0014.16 | 16X0.14 | 6.7 | 20.9 | 61.3 |
| SF430.0014.18 | 18X0.14 | 7.0 | 23.5 | 67.2 |
| SF430.0014.20 | 20X0.14 | 7.4 | 26.1 | 74.0 |
| SF430.0014.21 | 21X0.14 | 7.8 | 27.4 | 80.0 |
| SF430.0014.24 | 24X0.14 | 8.1 | 31.3 | 88.8 |
| SF430.0014.25 | 25X0.14 | 8.1 | 32.6 | 90.9 |
| SF430.0014.27 | 27X0.14 | 8.5 | 35.2 | 95.0 |
| SF430.0014.30 | 30X0.14 | 8.7 | 39.1 | 102.9 |
| SF430.0014.32 | 32X0.14 | 9.0 | 41.7 | 109.9 |
| SF430.0014.36 | 36X0.14 | 9.4 | 46.9 | 121.3 |
| Material Code | Size mm2 | OD mm | Copper Weight kg/km | Cable Weight kg/km |
| SF430.0020.02 | 2X0.2 | 4.3 | 3.7 | 23.0 |
| SF430.0020.03 | 3X0.2 | 4.4 | 5.6 | 26.1 |
| SF430.0020.04 | 4X0.2 | 4.7 | 7.4 | 30.4 |
| SF430.0020.05 | 5X0.2 | 5.0 | 9.3 | 34.9 |
| SF430.0020.06 | 6X0.2 | 5.4 | 11.2 | 38.3 |
| SF430.0020.07 | 7X0.2 | 5.7 | 13.0 | 43.2 |
| SF430.0020.08 | 8X0.2 | 6.0 | 14.9 | 48.4 |
| SF430.0020.09 | 9X0.2 | 6.4 | 16.8 | 53.7 |
| SF430.0020.10 | 10X0.2 | 6.7 | 18.6 | 59.2 |
| SF430.0020.12 | 12X0.2 | 7.4 | 22.3 | 71.6 |
| SF430.0020.14 | 14X0.2 | 6.9 | 26.1 | 66.8 |
| SF430.0020.16 | 16X0.2 | 7.2 | 29.8 | 74.3 |
| SF430.0020.18 | 18X0.2 | 7.6 | 33.5 | 82.8 |
| SF430.0020.20 | 20X0.2 | 8.0 | 37.2 | 91.6 |
| SF430.0020.21 | 21X0.2 | 8.5 | 39.1 | 98.0 |
| SF430.0020.24 | 24X0.2 | 8.8 | 44.7 | 110.1 |
| SF430.0020.25 | 25X0.2 | 8.8 | 46.5 | 112.9 |
| SF430.0020.27 | 27X0.2 | 9.2 | 50.3 | 118.2 |
| SF430.0020.30 | 30X0.2 | 9.4 | 55.9 | 128.3 |
| SF430.0020.32 | 32X0.2 | 9.8 | 59.6 | 137.1 |
| SF430.0020.36 | 36X0.2 | 10.1 | 67.0 | 151.7 |
