CAT6 high speed data communication cable

CAT6 high speed data communication cable Featured Image
  • CAT6 high speed data communication cable
  • CAT6 high speed data communication cable
  • CAT6 high speed data communication cable

Description:

Product Features:CAT6 high speed data communication cable delivers a bandwidth of 250 MHz. It supports 1 Gbps data transmission up to 100 meters and 10 Gbps transmission for short-reach applications. Adopting an internal shielded construction, it effectively suppresses crosstalk between twisted pairs and maintains stable signal integrity for high-speed networking.

Application:CAT6 high speed data communication cable is suitable for high-bandwidth applications including enterprise office networks, HD video surveillance systems and multimedia classroom signal interconnection.


Product Detail

Product Tags

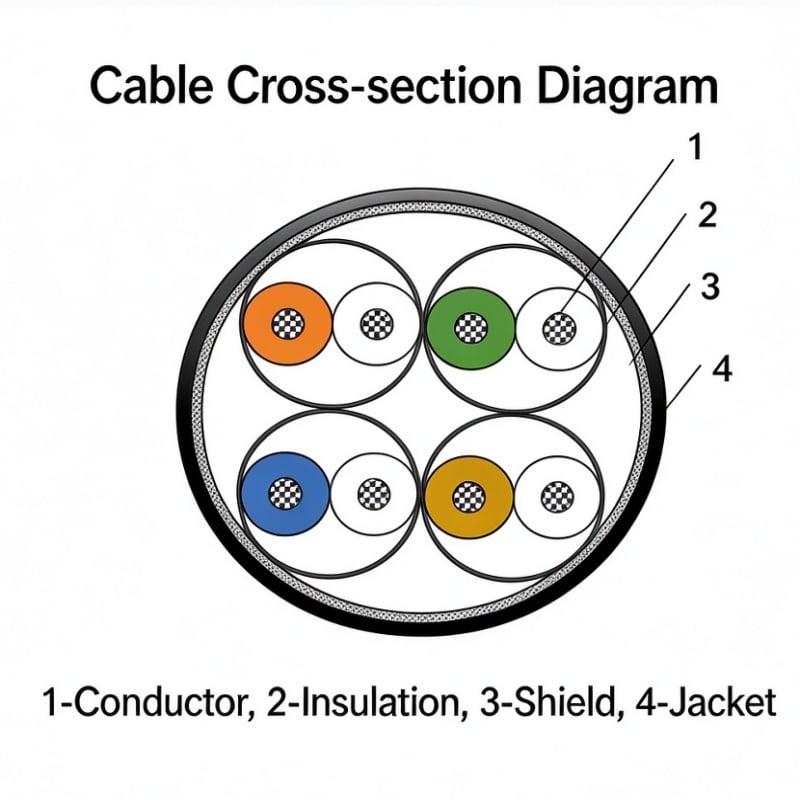

Product Construction Parameters



Product Performance Parameters

Product Specification Product Performance
Electrical Performance Mechanical
Performance		 Environmental
Performance
Characteristic Impedance Operating Frequency (MHz) Attenuation (≤dB/m) Transmission Rate Withstand Voltage
(Conductor-Conductor)		 Withstand Voltage
(Conductor-Shield)		 Bending Radius Mold Flame Retardant
CAT6T-100E-2*2*20U-4 100±10 10 0.072 69 2.0kV 1.5kV 10D / Complies with VW-1
100 0.238
200 0.348
250 0.394
CAT6T-100E-2*2*22U-4 100±10 10 0.576 69 2.0kV 1.5kV 10D / Complies with VW-1
100 0.078
200 0.252
250 0.366
CAT6T-100E-2*2*24U-4 100±10 10 0.097 69 2.0kV 1.5kV 10D / Complies with VW-1
100 0.315
200 0.455
250 0.513
CAT6T-100E-2*2*26U-4 100±10 10 0.097 69 2.0kV 1.5kV 10D / Complies with VW-1
100 0.315
200 0.455
250 0.513
CAT6T-100E-2*2*28U-4 100±10 10 0.097 69 1.5kV 1.5kV 10D / Complies with VW-1
100 0.315
200 0.455
250 0.513
CAT6T-100E-4*2*20U-4 100±10 10 0.066 69 2.0kV 1.5kV 10D / Complies with VW-1
100 0.218
200 0.319
250 0.361
CAT6T-100E-4*2*22U-4 100±10 10 0.528 69 2.0kV 1.5kV 10D / Complies with VW-1
100 0.072
200 0.231
250 0.336
CAT6T-100E-4*2*24U-4 100±10 10 0.097 69 2.0kV 1.5kV 10D / Complies with VW-1
100 0.315
200 0.455
250 0.513
CAT6T-100E-4*2*26U-4 100±10 10 0.097 69 2.0kV 1.5kV 10D / Complies with VW-1
100 0.315
200 0.455
250 0.513
CAT6T-100E-4*2*28U-4 100±10 10 0.097 69 1.5kV 1.5kV 10D / Complies with VW-1
100 0.315
200 0.455
250 0.513
CAT6S-100F-2*2*20F-3 100±10 10 0.066 69 2.0kV 1.5kV 10D Class II strains, *Scopulariopsis brevicaulis*, Grade 1 or better. Complies with VW-1
100 0.218
200 0.319
250 0.361
CAT6S-100F-2*2*22F-3 100±10 10 0.528 69 2.1kV 1.5kV 10D Class II strains, *Scopulariopsis brevicaulis*, Grade 1 or better. Complies with VW-1
100 0.072
200 0.231
250 0.336
CAT6S-100F-2*2*24F-3 100±10 10 0.081 69 2.0kV 1.5kV 10D Class II strains, *Scopulariopsis brevicaulis*, Grade 1 or better. Complies with VW-1
100 0.263
200 0.380
250 0.428
CAT6S-100F-2*2*26F-3 100±10 10 0.081 69 2.0kV 1.5kV 10D Class II strains, *Scopulariopsis brevicaulis*, Grade 1 or better. Complies with VW-1
100 0.263
200 0.380
250 0.428
CAT6S-100F-2*2*28F-3 100±10 10 0.081 69 1.5kV 1.5kV 10D Class II strains, *Scopulariopsis brevicaulis*, Grade 1 or better. Complies with VW-1
100 0.263
200 0.380
250 0.428
CAT6S-100F-4*2*20F-3 100±10 10 0.066 69 2.0kV 1.5kV 10D Class II strains, *Scopulariopsis brevicaulis*, Grade 1 or better. Complies with VW-1
100 0.218
200 0.319
250 0.361
CAT6S-100F-4*2*22F-3 100±10 10 0.528 69 2.0kV 1.5kV 10D Class II strains, *Scopulariopsis brevicaulis*, Grade 1 or better. Complies with VW-1
100 0.072
200 0.231
250 0.336
CAT6S-100F-4*2*24F-3 100±10 10 0.081 69 2.0kV 1.5kV 10D Class II strains, *Scopulariopsis brevicaulis*, Grade 1 or better. Complies with VW-1
100 0.263
200 0.380
250 0.428
CAT6S-100F-4*2*26F-3 100±10 10 0.081 69 2.0kV 1.5kV 10D Class II strains, *Scopulariopsis brevicaulis*, Grade 1 or better. Complies with VW-1
100 0.263
200 0.380
250 0.428
CAT6S-100F-4*2*28F-3 100±10 10 0.081 69 1.5kV 1.5kV 10D Class II strains, *Scopulariopsis brevicaulis*, Grade 1 or better. Complies with VW-1
100 0.263
200 0.380
250 0.428
CAT6S-100FT-2*2*20FK-3 100±10 10 0.073 69 2.0kV 1.5kV 10D Class II strains, *Scopulariopsis brevicaulis*, Grade 1 or better. Complies with VW-1
100 0.240
200 0.351
250 0.397
CAT6S-100FT-2*2*22FK-3 100±10 10 0.581 69 2.0kV 1.5kV 10D Class II strains, *Scopulariopsis brevicaulis*, Grade 1 or better. Complies with VW-1
100 0.079
200 0.254
250 0.369
CAT6S-100FT-2*2*24FK-3 100±10 10 0.089 69 2.0kV 1.5kV 10D Class II strains, *Scopulariopsis brevicaulis*, Grade 1 or better. Complies with VW-1
100 0.287
200 0.414
250 0.467
CAT6S-100FT-2*2*26FK-3 100±10 10 0.089 69 2.0kV 1.5kV 10D Class II strains, *Scopulariopsis brevicaulis*, Grade 1 or better. Complies with VW-1
100 0.287
200 0.414
250 0.467
CAT6S-100FT-2*2*28FK-3 100±10 10 0.089 69 1.5kV 1.5kV 10D Class II strains, *Scopulariopsis brevicaulis*, Grade 1 or better. Complies with VW-1
100 0.287
200 0.414
250 0.467
CAT6S-100FT-4*2*20FK-3 100±10 10 0.066 69 2.0kV 1.5kV 10D Class II strains, *Scopulariopsis brevicaulis*, Grade 1 or better. Complies with VW-1
100 0.218
200 0.319
250 0.361
CAT6S-100FT-4*2*22FK-3 100±10 10 0.528 69 2.0kV 1.5kV 10D Class II strains, *Scopulariopsis brevicaulis*, Grade 1 or better. Complies with VW-1
100 0.072
200 0.231
250 0.336
CAT6S-100FT-4*2*24FK-3 100±10 10 0.089 69 2.0kV 1.5kV 10D Class II strains, *Scopulariopsis brevicaulis*, Grade 1 or better. Complies with VW-1
100 0.287
200 0.414
250 0.467
CAT6S-100FT-4*2*26FK-3 100±10 10 0.089 69 2.0kV 1.5kV 10D Class II strains, *Scopulariopsis brevicaulis*, Grade 1 or better. Complies with VW-1
100 0.287
200 0.414
250 0.467
CAT6S-100FT-4*2*28FK-3 100±10 10 0.089 69 1.5kV 1.5kV 10D Class II strains, *Scopulariopsis brevicaulis*, Grade 1 or better. Complies with VW-1
100 0.287
200 0.414
250 0.467
