Description:

Product Features:CAT5 high speed data communication cable (HP Vision) is an optimized Category 5 high-speed data communication cable, also known as Cat5e (Enhanced Category 5). It delivers a bandwidth of 100 MHz and supports 1 Gbps gigabit-rate data transmission. Designed for reliable high-speed networking, this cable achieves superior signal integrity through the adoption of higher pair twist density and advanced crosstalk suppression technologies. These design measures effectively reduce near-end and far-end crosstalk, mitigate signal attenuation and electromagnetic interference, and ensure stable, low-error data transmission even under continuous long-distance operation. It is suitable for high-performance industrial data communication, local area networks and other high-speed signal interconnection scenarios.

Application:CAT5 high speed data communication cable(HP Vision) is suitable for Gigabit Ethernet connections and security surveillance transmission in residential and small office networks.


Product Detail

Product Tags

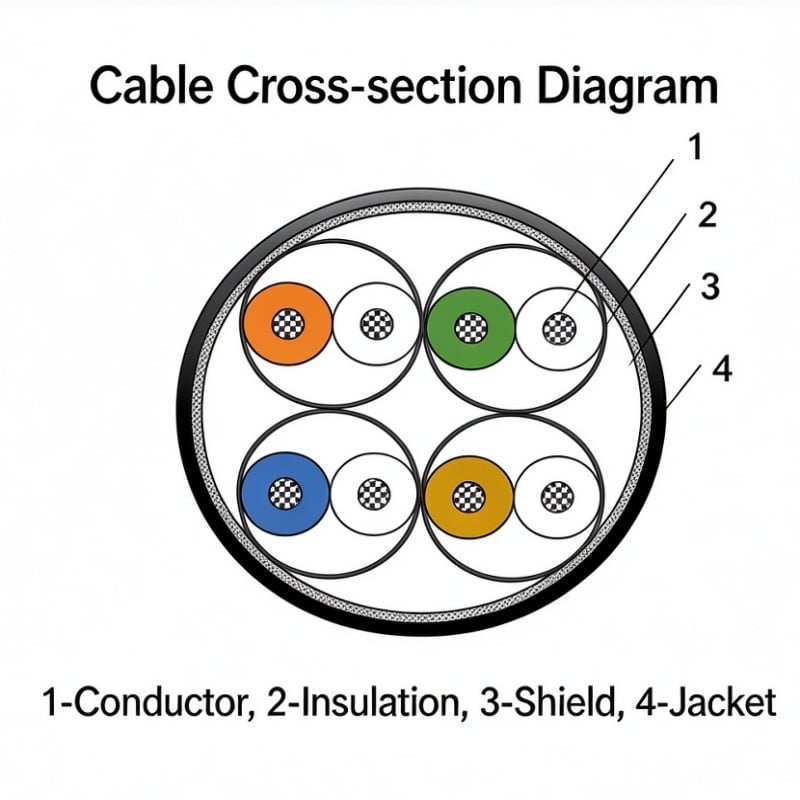

Product Construction Parameters

Category Specification Structural Dimensions Rated Operating
Voltage
Conductor Size (mm) Insulation Size (mm) Finished Cable Size (mm)
High Temperature Series
（-100-250℃）		 CAT5S-100FR-2*2*20FK-3 0.9 1.9 9.6 500
CAT5S-100FR-2*2*22FK-3 0.8 1.7 8.8 500
CAT5S-100FR-2*2*24FK-3 0.6 1.3 6.6 500
CAT5S-100FR-2*2*26FK-3 0.5 1.1 5.8 200
CAT5S-100FR-2*2*28FK-3 0.36 0.8 4.6 30
CAT5S-100FR-4*2*20FK-3 0.9 1.7 10.2076 500
CAT5S-100FR-4*2*22FK-3 0.8 1.5 9.242 500
CAT5S-100FR-4*2*24FK-3 0.6 1.2 7.1936 500
CAT5S-100FR-4*2*26FK-3 0.5 1.0 6.228 200
CAT5S-100FR-4*2*28FK-3 0.36 0.7 4.7796 30

Product Performance Parameters

Product Specification Product Performance
Electrical Performance Mechanical
Performance		 Environmental
Performance
Characteristic Impedance Operating Frequency (MHz) Attenuation (≤dB/m) Transmission Rate Withstand Voltage
(Conductor to Conductor)		 Withstand Voltage
(Conductor to Shield)		 Bending Radius Mold Resistance Flame Retardant
CAT5S-100FR-2*2*20FK-3 100±10 1 1.701 75 2.0kV 1.5kV 10D Class II strains, *Scopulariopsis brevicaulis*, Grade 1 or better. Complies with VW-1
4 3.321
10 5.265
16 6.723
20 7.533
31.25 9.477
62.5 13.770
100 17.820
CAT5S-100FR-2*2*22FK-3 100±10 1 1.701 75 2.0kV 1.5kV 10D Class II strains, *Scopulariopsis brevicaulis*, Grade 1 or better. Complies with VW-1
4 3.321
10 5.265
16 6.723
20 7.533
31.25 9.477
62.5 13.770
100 17.820
CAT5S-100FR-2*2*24FK-3 100±10 1 1.701 75 2.0kV 1.5kV 10D Class II strains, *Scopulariopsis brevicaulis*, Grade 1 or better. Complies with VW-1
4 3.321
10 5.265
16 6.723
20 7.533
31.25 9.477
62.5 13.770
100 17.820
CAT5S-100FR-2*2*26FK-3 100±10 1 1.701 75 2.0kV 1.5kV 10D Class II strains, *Scopulariopsis brevicaulis*, Grade 1 or better. Complies with VW-1
4 3.321
10 5.265
16 6.723
20 7.533
31.25 9.477
62.5 13.770
100 17.820
CAT5S-100FR-2*2*28FK-3 100±10 1 1.701 75 1.5kV 1.5kV 10D Class II strains, *Scopulariopsis brevicaulis*, Grade 1 or better. Complies with VW-1
4 3.321
10 5.265
16 6.723
20 7.533
31.25 9.477
62.5 13.770
100 17.820
CAT5S-100FR-4*2*20FK-3 100±10 1 1.616 75 2.0kV 1.5kV 11D Class II strains, *Scopulariopsis brevicaulis*, Grade 2 or better. Complies with VW-2
4 3.155
10 5.002
16 6.387
20 7.156
31.25 9.003
62.5 13.082
100 16.929
CAT5S-100FR-4*2*22FK-3 100±10 1 1.535 75 2.0kV 1.5kV 12D Class II strains, *Scopulariopsis brevicaulis*, Grade 3 or better. Complies with VW-3
4 2.997
10 4.752
16 6.068
20 6.799
31.25 8.553
62.5 12.427
100 16.083
CAT5S-100FR-4*2*24FK-3 100±10 1 1.458 75 2.0kV 1.5kV 13D Class II strains, *Scopulariopsis brevicaulis*, Grade 4 or better. Complies with VW-4
4 2.847
10 4.514
16 5.764
20 6.459
31.25 8.125
62.5 11.806
100 15.278
CAT5S-100FR-4*2*26FK-3 100±10 1 1.385 75 2.0kV 1.5kV 14D Class II strains, *Scopulariopsis brevicaulis*, Grade 5 or better. Complies with VW-5
4 2.705
10 4.288
16 5.476
20 6.136
31.25 7.719
62.5 11.216
100 14.515
CAT5S-100FR-4*2*28FK-3 100±10 1 1.316 75 1.5kV 1.5kV 15D Class II strains, *Scopulariopsis brevicaulis*, Grade 6 or better. Complies with VW-6
4 2.570
10 4.074
16 5.202
20 5.829
31.25 7.333
62.5 10.655
100 13.789
