CAT5 high speed data communication cable

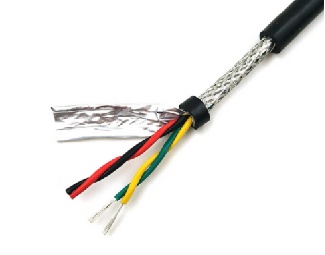

CAT5 high speed data communication cable Featured Image
  • CAT5 high speed data communication cable
  • CAT5 high speed data communication cable

Description:

Product Features:CAT5 high-speed data communication cable, with 100 MHz bandwidth. It mainly supports 100 Mbps Fast Ethernet transmission, adopts 4-pair twisted pair structure and features basic crosstalk suppression capability.

Application:CAT5 high speed data communication cable is suitable for early LAN cabling, connection of 10/100 Mbps network devices, telephone voice communication and low-speed data transmission applications.


Product Detail

Product Tags

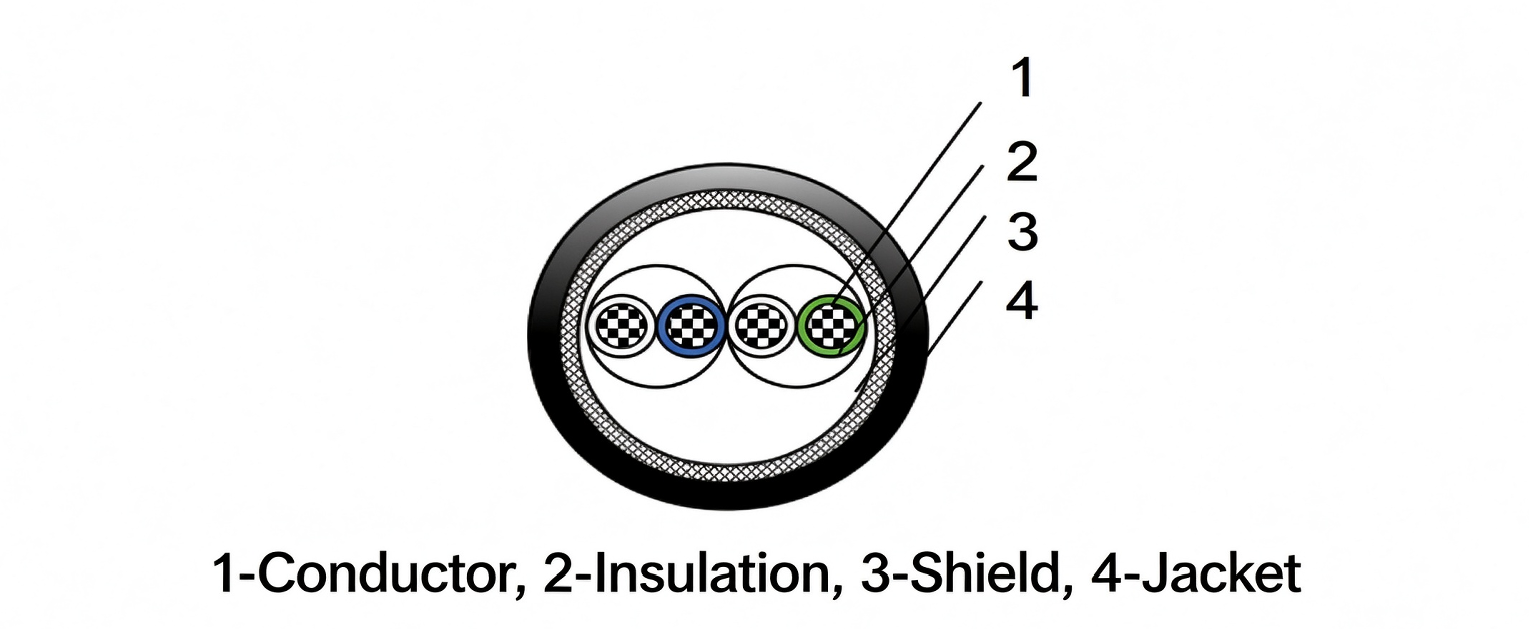

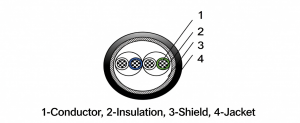

Product Construction Parameters

Category Specification Structural Dimensions Rated Operating Voltage
Conductor Size (mm) Insulation Size (mm) Finished Cable Size (mm)
Normal Temperature Series
（-20-80℃）		 CAT5T-100E-2*2*20U-4 0.9 2.2 11.6 500
CAT5T-100E-2*2*22U-4 0.8 1.9 10.4 500
CAT5T-100E-2*2*24U-4 0.6 1.4 7.6 500
CAT5T-100E-2*2*26U-4 0.5 1.2 6.8 200
CAT5T-100E-2*2*28U-4 0.36 0.9 5.6 30
CAT5T-100E-4*2*20U-4 0.9 1.9 11.9732 500
CAT5T-100E-4*2*22U-4 0.8 1.7 11.0076 500
CAT5T-100E-4*2*24U-4 0.6 1.3 9.0764 500
CAT5T-100E-4*2*26U-4 0.5 1.1 7.3108 200
CAT5T-100E-4*2*28U-4 0.36 0.8 5.8624 30
High Temperature Series
（-60-200℃）		 CAT5S-100F-2*2*20F-3 0.9 2.1 10.4 500
CAT5S-100F-2*2*22F-3 0.8 1.8 9.2 500
CAT5S-100F-2*2*24F-3 0.6 1.4 7.6 500
CAT5S-100F-2*2*26F-3 0.5 1.1 5.8 200
CAT5S-100F-2*2*28F-3 0.36 0.8 4.6 30
CAT5S-100F-4*2*20F-3 0.9 1.8 10.6904 500
CAT5S-100F-4*2*22F-3 0.8 1.6 9.7248 500
CAT5S-100F-4*2*24F-3 0.6 1.2 7.7936 500
CAT5S-100F-4*2*26F-3 0.5 1.0 6.828 200
CAT5S-100F-4*2*28F-3 0.36 0.7 5.3796 30
High Temperature Series
（-100-250℃）		 CAT5S-100FT-2*2*20FK-3 0.9 2.2 10.8 500
CAT5S-100FT-2*2*22FK-3 0.8 1.9 9.6 500
CAT5S-100FT-2*2*24FK-3 0.6 1.4 7.6 500
CAT5S-100FT-2*2*26FK-3 0.5 1.2 6.2 200
CAT5S-100FT-2*2*28FK-3 0.36 0.9 5 30
CAT5S-100FT-4*2*20FK-3 0.9 1.9 11.1732 500
CAT5S-100FT-4*2*22FK-3 0.8 1.7 10.2076 500
CAT5S-100FT-4*2*24FK-3 0.6 1.3 8.2764 500
CAT5S-100FT-4*2*26FK-3 0.5 1.1 7.3108 200
CAT5S-100FT-4*2*28FK-3 0.36 0.8 5.8624 30

Product Performance Parameters

Product Specification Product Performance
Electrical Performance 机械性能 环境性能
Characteristic Impedance Operating Frequency (MHz) Attenuation (≤dB/m) Transmission Rate Withstand Voltage
(Conductor to Conductor)		 Withstand Voltage
(Conductor to Shield)		 Bending Radius Mold Resistance Flame Retardant
CAT5T-100E-2*2*20U-4 100±15 1 0.021 69 2.0kV 1.5kV 10D / Complies with VW-1
4 0.041
10 0.065
16 0.083
20 0.093
31.25 0.117
62.5 0.170
100 0.220
CAT5T-100E-2*2*22U-4 100±15 1 0.021 69 2.1kV 1.5kV 10D / Complies with VW-1
4 0.041
10 0.065
16 0.083
20 0.093
31.25 0.117
62.5 0.170
100 0.220
CAT5T-100E-2*2*24U-4 100±15 1 0.021 69 2.2kV 1.5kV 10D / Complies with VW-1
4 0.041
10 0.065
16 0.083
20 0.093
31.25 0.117
62.5 0.170
100 0.220
CAT5T-100E-2*2*26U-4 100±15 1 0.021 69 2.3kV 1.5kV 10D / Complies with VW-1
4 0.041
10 0.065
16 0.083
20 0.093
31.25 0.117
62.5 0.170
100 0.220
CAT5T-100E-2*2*28U-4 100±15 1 0.021 69 1.5kV 1.5kV 10D / Complies with VW-1
4 0.041
10 0.065
16 0.083
20 0.093
31.25 0.117
62.5 0.170
100 0.220
CAT5T-100E-4*2*20U-4 100±15 1 0.021 69 2.0kV 1.5kV 10D / Complies with VW-1
4 0.041
10 0.065
16 0.083
20 0.093
31.25 0.117
62.5 0.170
100 0.220
CAT5T-100E-4*2*22U-4 100±15 1 0.021 69 2.1kV 1.5kV 10D / Complies with VW-1
4 0.041
10 0.065
16 0.083
20 0.093
31.25 0.117
62.5 0.170
100 0.220
CAT5T-100E-4*2*24U-4 100±15 1 0.021 69 2.2kV 1.5kV 10D / Complies with VW-1
4 0.041
10 0.065
16 0.083
20 0.093
31.25 0.117
62.5 0.170
100 0.220
CAT5T-100E-4*2*26U-4 100±15 1 0.021 69 2.3kV 1.5kV 10D / Complies with VW-1
4 0.041
10 0.065
16 0.083
20 0.093
31.25 0.117
62.5 0.170
100 0.220
CAT5T-100E-4*2*28U-4 100±15 1 0.021 69 1.5kV 1.5kV 10D / Complies with VW-1
4 0.041
10 0.065
16 0.083
20 0.093
31.25 0.117
62.5 0.170
100 0.220
CAT5S-100F-2*2*20F-3 100±10 1 0.019 69 2.0kV 1.5kV 10D Class II strain requirement, *Scopulariopsis brevicaulis*, no worse than Grade 1. Complies with VW-1
4 0.037
10 0.059
16 0.075
20 0.084
31.25 0.105
62.5 0.153
100 0.198
CAT5S-100F-2*2*22F-3 100±10 1 0.019 69 2.1kV 1.5kV 10D Class II strain requirement, *Scopulariopsis brevicaulis*, no worse than Grade 1. Complies with VW-1
4 0.037
10 0.059
16 0.075
20 0.084
31.25 0.105
62.5 0.153
100 0.198
CAT5S-100F-2*2*24F-3 100±10 1 0.019 69 2.2kV 1.5kV 10D Class II strain requirement, *Scopulariopsis brevicaulis*, no worse than Grade 1. Complies with VW-1
4 0.037
10 0.059
16 0.075
20 0.084
31.25 0.105
62.5 0.153
100 0.198
CAT5S-100F-2*2*26F-3 100±10 1 0.019 69 2.3kV 1.5kV 10D Class II strain requirement, *Scopulariopsis brevicaulis*, no worse than Grade 1. Complies with VW-1
4 0.037
10 0.059
16 0.075
20 0.084
31.25 0.105
62.5 0.153
100 0.198
CAT5S-100F-2*2*28F-3 100±10 1 0.019 69 1.5kV 1.5kV 10D Class II strain requirement, *Scopulariopsis brevicaulis*, no worse than Grade 1. Complies with VW-1
4 0.037
10 0.059
16 0.075
20 0.084
31.25 0.105
62.5 0.153
100 0.198
CAT5S-100F-4*2*20F-3 100±10 1 0.019 69 2.0kV 1.5kV 10D Class II strain requirement, *Scopulariopsis brevicaulis*, no worse than Grade 1. Complies with VW-1
4 0.037
10 0.059
16 0.075
20 0.084
31.25 0.105
62.5 0.153
100 0.198
CAT5S-100F-4*2*22F-3 100±10 1 0.019 69 2.0kV 1.5kV 10D Class II strain requirement, *Scopulariopsis brevicaulis*, no worse than Grade 1. Complies with VW-1
4 0.037
10 0.059
16 0.075
20 0.084
31.25 0.105
62.5 0.153
100 0.198
CAT5S-100F-4*2*24F-3 100±10 1 0.019 69 2.0kV 1.5kV 10D Class II strain requirement, *Scopulariopsis brevicaulis*, no worse than Grade 1. Complies with VW-1
4 0.037
10 0.059
16 0.075
20 0.084
31.25 0.105
62.5 0.153
100 0.198
CAT5S-100F-4*2*26F-3 100±10 1 0.019 69 2.0kV 1.5kV 10D Class II strain requirement, *Scopulariopsis brevicaulis*, no worse than Grade 1. Complies with VW-1
4 0.037
10 0.059
16 0.075
20 0.084
31.25 0.105
62.5 0.153
100 0.198
CAT5S-100F-4*2*28F-3 100±10 1 0.019 69 2.0kV 1.5kV 10D Class II strain requirement, *Scopulariopsis brevicaulis*, no worse than Grade 1. Complies with VW-1
4 0.037
10 0.059
16 0.075
20 0.084
31.25 0.105
62.5 0.153
100 0.198
CAT5S-100FT-2*2*20FK-3 100±10 1 0.019 69 2.0kV 1.5kV 10D Class II strain requirement, *Scopulariopsis brevicaulis*, no worse than Grade 1. Complies with VW-1
4 0.037
10 0.059
16 0.075
20 0.084
31.25 0.105
62.5 0.153
100 0.198
CAT5S-100FT-2*2*22FK-3 100±10 1 0.019 69 2.0kV 1.5kV 10D Class II strain requirement, *Scopulariopsis brevicaulis*, no worse than Grade 1. Complies with VW-1
4 0.037
10 0.059
16 0.075
20 0.084
31.25 0.105
62.5 0.153
100 0.198
CAT5S-100FT-2*2*24FK-3 100±10 1 0.019 69 2.0kV 1.5kV 10D Class II strain requirement, *Scopulariopsis brevicaulis*, no worse than Grade 1. Complies with VW-1
4 0.037
10 0.059
16 0.075
20 0.084
31.25 0.105
62.5 0.153
100 0.198
CAT5S-100FT-2*2*26FK-3 100±10 1 0.019 69 2.0kV 1.5kV 10D Class II strain requirement, *Scopulariopsis brevicaulis*, no worse than Grade 1. Complies with VW-1
4 0.037
10 0.059
16 0.075
20 0.084
31.25 0.105
62.5 0.153
100 0.198
CAT5S-100FT-2*2*28FK-3 100±10 1 0.019 69 1.5kV 1.5kV 10D Class II strain requirement, *Scopulariopsis brevicaulis*, no worse than Grade 1. Complies with VW-1
4 0.037
10 0.059
16 0.075
20 0.084
31.25 0.105
62.5 0.153
100 0.198
CAT5S-100FT-4*2*20FK-3 100±10 1 0.019 69 2.0kV 1.5kV 10D Class II strain requirement, *Scopulariopsis brevicaulis*, no worse than Grade 1. Complies with VW-1
4 0.037
10 0.059
16 0.075
20 0.084
31.25 0.105
62.5 0.153
100 0.198
CAT5S-100FT-4*2*22FK-3 100±10 1 0.019 69 2.0kV 1.5kV 10D Class II strain requirement, *Scopulariopsis brevicaulis*, no worse than Grade 1. Complies with VW-1
4 0.037
10 0.059
16 0.075
20 0.084
31.25 0.105
62.5 0.153
100 0.198
CAT5S-100FT-4*2*24FK-3 100±10 1 0.019 69 2.0kV 1.5kV 10D Class II strain requirement, *Scopulariopsis brevicaulis*, no worse than Grade 1. Complies with VW-1
4 0.037
10 0.059
16 0.075
20 0.084
31.25 0.105
62.5 0.153
100 0.198
CAT5S-100FT-4*2*26FK-3 100±10 1 0.019 69 2.0kV 1.5kV 10D Class II strain requirement, *Scopulariopsis brevicaulis*, no worse than Grade 1. Complies with VW-1
4 0.037
10 0.059
16 0.075
20 0.084
31.25 0.105
62.5 0.153
100 0.198
CAT5S-100FT-4*2*28FK-3 100±10 1 0.019 69 2.0kV 1.5kV 10D Class II strain requirement, *Scopulariopsis brevicaulis*, no worse than Grade 1. Complies with VW-1
4 0.037
10 0.059
16 0.075
20 0.084
31.25 0.105
62.5 0.153
100 0.198
  • Previous:
  • Next:

    • Related Products

    CAT5 high speed data communication cable(HP Vision)

    CAT5 high speed data communication cable(HP Vis...

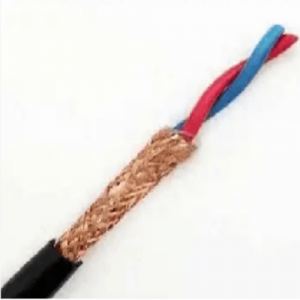

    CAN BUS Cable (HP Version)

    CAN BUS Cable (HP Version)

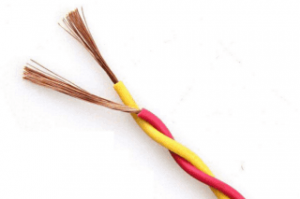

    CAN BUS Cable
