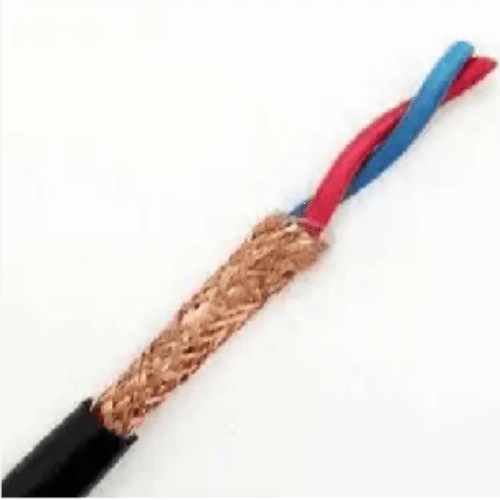

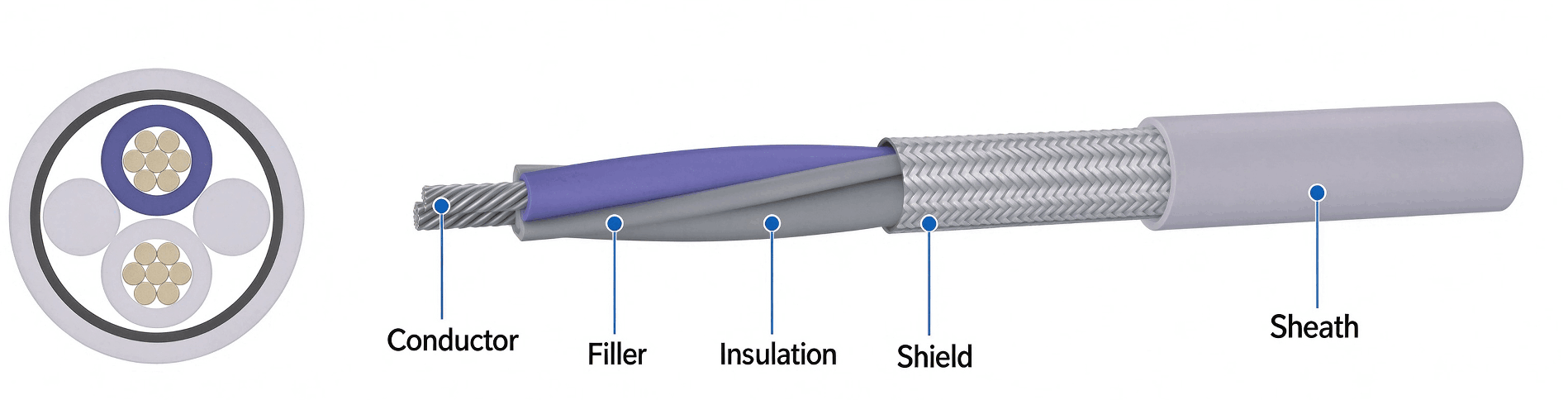

CAN BUS Cable (HP Version)

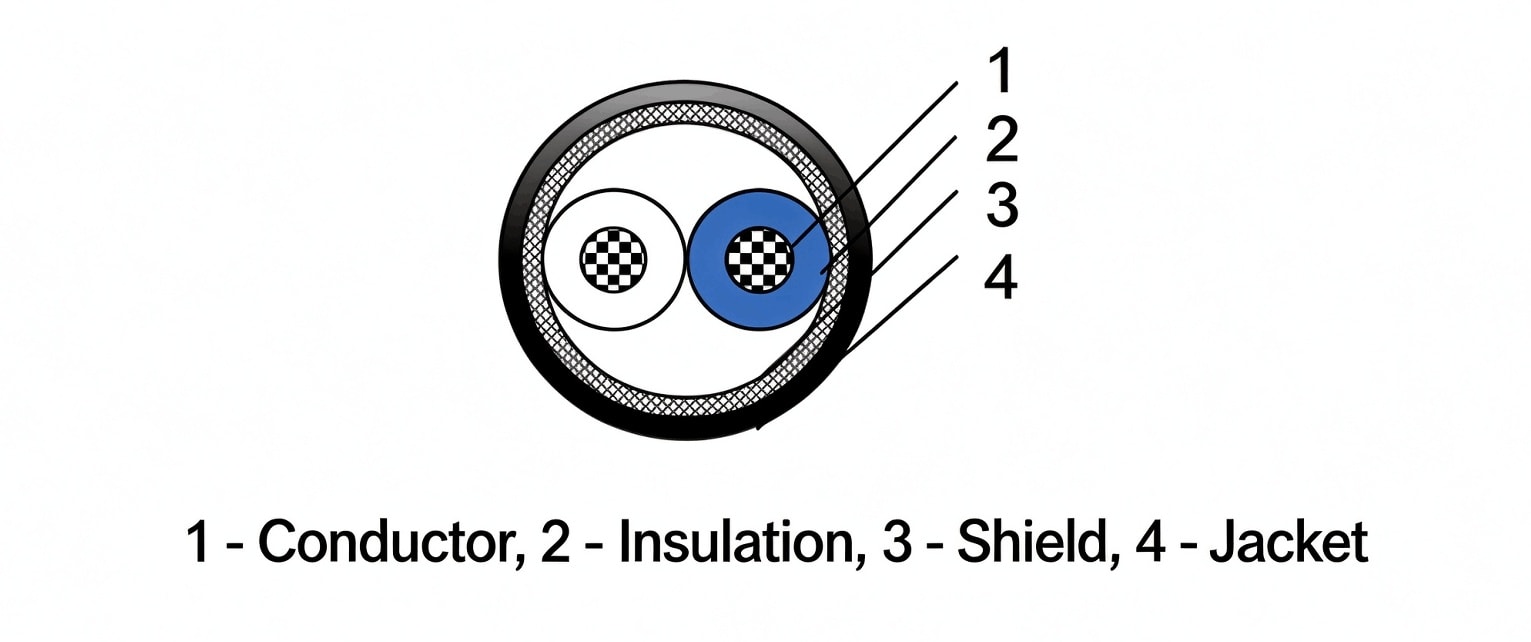

Product Construction Parameters
| Category | Specification | Structural Dimensions | Rated Operating Voltage |
||
| Conductor Size (mm) | Insulation Size (mm) | Finished Cable Size (mm) | |||
| Normal Temperature Series （-20-80℃） |
CANT-120E-2*20U-1 | 0.9 | 3.4 | 8.8 | 500 |
| CANT-120E-2*22U-1 | 0.8 | 3 | 8 | 500 | |
| CANT-120E-2*24U-1 | 0.6 | 2.2 | 6.4 | 500 | |
| CANT-120E-2*26U-1 | 0.5 | 1.9 | 5.8 | 200 | |
| CANT-120E-2*28U-1 | 0.36 | 1.4 | 4.2 | 30 | |
| Normal Temperature Series （-40-150℃） |
CANT-120F-2*20FK-1 | 0.9 | 3.4 | 8.8 | 500 |
| CANT-120F-2*22FK-1 | 0.8 | 3 | 8 | 500 | |
| CANT-120F-2*24FK-1 | 0.6 | 2.2 | 6.4 | 500 | |
| CANT-120F-2*26FK-1 | 0.5 | 1.9 | 5.8 | 200 | |
| CANT-120F-2*28FK-1 | 0.36 | 1.4 | 4.2 | 30 | |
| High Temperature Series （-60-200℃） |
CANS-120FR-2*20F-1 | 0.9 | 2.9 | 7.8 | 500 |
| CANS-120FR-2*22F-1 | 0.8 | 2.6 | 7.2 | 500 | |
| CANS-120FR-2*24F-1 | 0.6 | 1.9 | 5.2 | 500 | |
| CANS-120FR-2*26F-1 | 0.5 | 1.6 | 4.6 | 200 | |
| CANS-120FR-2*28F-1 | 0.36 | 1.3 | 4.2 | 30 | |
| High Temperature Series （-100-250℃） |
CANS-120FR-2*20FK-1 | 0.9 | 2.9 | 7.8 | 500 |
| CANS-120FR-2*22FK-1 | 0.8 | 2.6 | 7.2 | 500 | |
| CANS-120FR-2*24FK-1 | 0.6 | 1.9 | 5.8 | 500 | |
| CANS-120FR-2*26FK-1 | 0.5 | 1.6 | 4.6 | 200 | |
| CANS-120FR-2*28FK-1 | 0.36 | 1.3 | 4.2 | 30 | |
Product Performance Parameters
| Product Specification | Product Performance | ||||||||
| Electrical Performance | Mechanical Performance |
Environmental Performance | |||||||
| Characteristic Impedance | Operating Frequency (MHz) | Attenuation (≤dB/m) | Transmission Rate | Withstand Voltage (Conductor to Conductor) | Withstand Voltage (Conductor to Shield) |
Bending Radius | Mold Resistance | Flame Retardant | |
| CANT-120E-2*20U-1 | 120±15 | 1 | 0.218 | 69 | 2.0kV | 1.5kV | 10D | / | Complies with VW-1 |
| 5 | 0.349 | ||||||||
| CANT-120E-2*22U-1 | 120±15 | 1 | 0.238 | 69 | 2.0kV | 1.5kV | 10D | / | Complies with VW-1 |
| 5 | 0.381 | ||||||||
| CANT-120E-2*24U-1 | 120±15 | 1 | 0.294 | 69 | 2.0kV | 1.5kV | 10D | / | Complies with VW-1 |
| 5 | 0.431 | ||||||||
| CANT-120E-2*26U-1 | 120±15 | 1 | 0.390 | 69 | 2.0kV | 1.5kV | 10D | / | Complies with VW-1 |
| 5 | 0.615 | ||||||||
| CANT-120E-2*28U-1 | 120±15 | 1 | 0.641 | 69 | 1.5kV | 1.5kV | 10D | / | Complies with VW-1 |
| 5 | 0.953 | ||||||||
| CANT-120F-2*20FK-1 | 120±15 | 1 | 0.198 | 69 | 1.5kV | 1.5kV | 10D | / | Complies with VW-1 |
| 5 | 0.318 | ||||||||
| CANT-120F-2*22FK-1 | 120±15 | 1 | 0.216 | 69 | 1.5kV | 1.5kV | 10D | / | Complies with VW-1 |
| 5 | 0.346 | ||||||||
| CANT-120F-2*24FK-1 | 120±15 | 1 | 0.268 | 69 | 1.5kV | 1.5kV | 10D | / | Complies with VW-1 |
| 5 | 0.392 | ||||||||
| CANT-120F-2*26FK-1 | 120±15 | 1 | 0.354 | 69 | 1.5kV | 1.5kV | 10D | / | Complies with VW-1 |
| 5 | 0.559 | ||||||||
| CANT-120F-2*28FK-1 | 120±15 | 1 | 0.583 | 69 | 1.5kV | 1.5kV | 10D | / | Complies with VW-1 |
| 5 | 0.866 | ||||||||
| CANS-120FR-2*20F-1 | 120±15 | 1 | 0.169 | 75 | 1.5kV | 1.5kV | 10D | Class II mold requirement, short-term mold resistance ≥ Class 1 | Complies with VW-1 |
| 5 | 0.270 | ||||||||
| CANS-120FR-2*22F-1 | 120±15 | 1 | 0.180 | 75 | 1.5kV | 1.5kV | 10D | Class II mold requirement, short-term mold resistance ≥ Class 1 | Complies with VW-1 |
| 5 | 0.289 | ||||||||
| CANS-120FR-2*24F-1 | 120±15 | 1 | 0.223 | 75 | 1.5kV | 1.5kV | 10D | Class II mold requirement, short-term mold resistance ≥ Class 1 | Complies with VW-1 |
| 5 | 0.327 | ||||||||
| CANS-120FR-2*26F-1 | 120±15 | 1 | 0.295 | 75 | 1.5kV | 1.5kV | 10D | Class II mold requirement, short-term mold resistance ≥ Class 1 | Complies with VW-1 |
| 5 | 0.466 | ||||||||
| CANS-120FR-2*28F-1 | 120±15 | 1 | 0.486 | 75 | 1.5kV | 1.5kV | 10D | Class II mold requirement, short-term mold resistance ≥ Class 1 | Complies with VW-1 |
| 5 | 0.722 | ||||||||
| CANS-120FR-2*20FK-1 | 120±15 | 1 | 0.169 | 75 | 1.5kV | 1.5kV | 10D | Class II mold requirement, short-term mold resistance ≥ Class 1 | Complies with VW-1 |
| 5 | 0.270 | ||||||||
| CANS-120FR-2*22FK-1 | 120±15 | 1 | 0.180 | 75 | 1.5kV | 1.5kV | 10D | Class II mold requirement, short-term mold resistance ≥ Class 1 | Complies with VW-1 |
| 5 | 0.289 | ||||||||
| CANS-120FR-2*24FK-1 | 120±15 | 1 | 0.223 | 75 | 1.5kV | 1.5kV | 10D | Class II mold requirement, short-term mold resistance ≥ Class 1 | Complies with VW-1 |
| 5 | 0.327 | ||||||||
| CANS-120FR-2*26FK-1 | 120±15 | 1 | 0.295 | 75 | 1.5kV | 1.5kV | 10D | Class II mold requirement, short-term mold resistance ≥ Class 1 | Complies with VW-1 |
| 5 | 0.466 | ||||||||
| CANS-120FR-2*28FK-1 | 120±15 | 1 | 0.486 | 75 | 1.5kV | 1.5kV | 10D | Class II mold requirement, short-term mold resistance ≥ Class 1 | Complies with VW-1 |
| 5 | 0.722 | ||||||||
