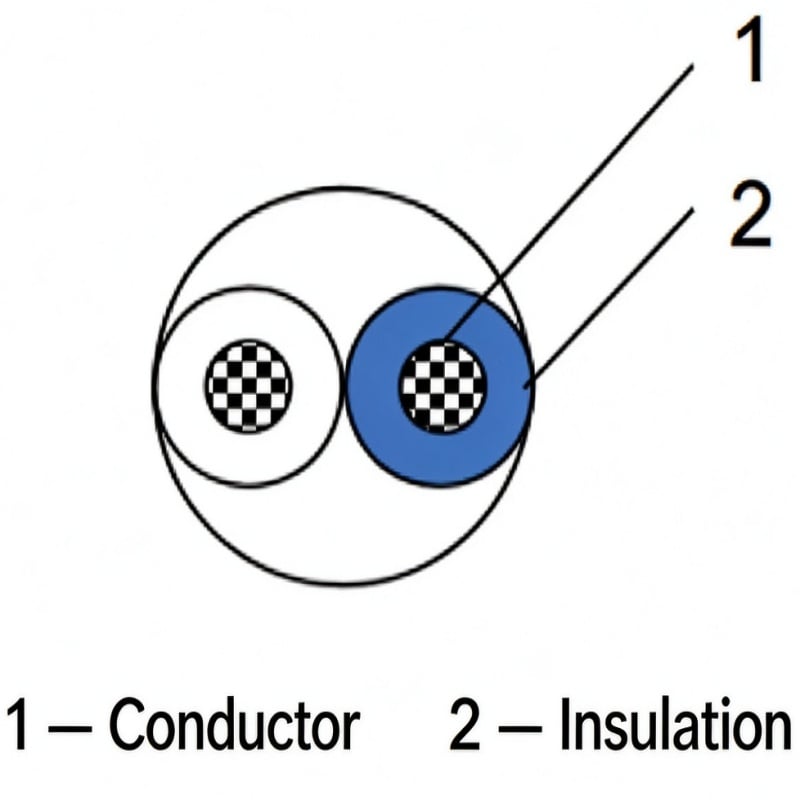

CAN BUS Cable Featured Image
  • CAN BUS Cable
  • CAN BUS Cable

Description:

Product Features:

Dedicated data cable for Controller Area Network (CAN) communication. It adopts twisted‑pair construction with a nominal characteristic impedance of 120 Ω, supports differential‑signal transmission, and delivers excellent anti‑interference performance and real‑time response.

Application:

Mainly used for communication between equipment in automotive electronics, industrial automation equipment, intelligent buildings and rail transit.


Product Detail

Product Tags

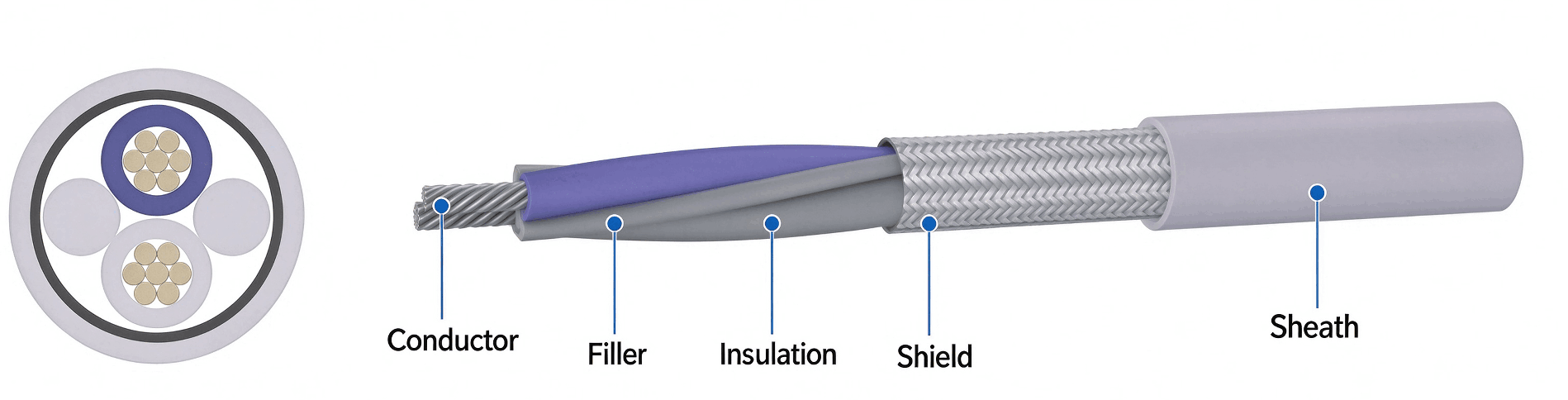

Product Construction Parameters

Category Size No. Structural Dimensions Operating Voltage
Conductor Dimension (mm) Insulation Dimension (mm) Finished Cable Dimension (mm)
Normal Temperature Series
(-20~80℃)		 CANT-120E-2*20 0.9 2.0 4 500
CANT-120E-2*22 0.8 1.8 3.6 500
CANT-120E-2*24 0.6 1.3 2.6 500
CANT-120E-2*26 0.5 1.1 2.2 200
CANT-120E-2*28 0.36 0.8 1.6 30
High Temperature Series
(-60-200℃)		 CANS-120F-2*20 0.9 1.9 3.8 500
CANS-120F-2*22 0.8 1.7 3.4 500
CANS-120F-2*24 0.6 1.3 2.6 500
CANS-120F-2*26 0.5 1.1 2.2 200
CANS-120F-2*28 0.36 0.8 1.6 30
High Temperature Series
(-100-250℃)		 CANS-120F-2*20 0.9 1.9 3.8 500
CANS-120F-2*22 0.8 1.7 3.4 500
CANS-120F-2*24 0.6 1.3 2.6 500
CANS-120F-2*26 0.5 1.1 2.2 200
CANS-120F-2*28 0.36 0.8 1.6 30

Product Performance Parameters

Product Part No. Product Performance Specifications
Electrical Properties Mechanical Environmental
Characteristic Impedance Frequency (MHz) Attenuation (dB/m) Voltage (C-C) Data Rate Voltage (C-S) Bending Radius Mold Resistance Flame Retardant
CANT-120E-2*20 120±15 1MHz 0.2045 2.0kV 69 1.5kV 10D / Compliant with VW-1
CANT-120E-2*22 120±15 1MHz 0.23452 2.0kV 69 1.5kV 10D / Compliant with VW-1
CANT-120E-2*24 120±15 1MHz 0.29003 2.0kV 69 1.5kV 10D / Compliant with VW-1
CANT-120E-2*26 120±15 1MHz 0.38389 2.0kV 69 1.5kV 10D / Compliant with VW-1
CANT-120E-2*28 120±15 1MHz 0.63128 1.5kV 69 1.5kV 10D / Compliant with VW-1
CANS-120F-2*20 120±15 1MHz 0.18405 2.0kV 69 1.5kV 10D Fungal Resistant Compliant with VW-1
CANS-120F-2*22 120±15 1MHz 0.211068 2.0kV 69 1.5kV 10D Fungal Resistant Compliant with VW-1
CANS-120F-2*24 120±15 1MHz 0.2755285 2.0kV 69 1.5kV 10D Fungal Resistant Compliant with VW-1
CANS-120F-2*26 120±15 1MHz 0.3646955 2.0kV 69 1.5kV 10D Fungal Resistant Compliant with VW-1
CANS-120F-2*28 120±15 1MHz 0.599716 1.5kV 69 1.5kV 10D Fungal Resistant Compliant with VW-1
