CAT6 high speed data communication cable(HP Vision)

CAT6 high speed data communication cable(HP Vision) Featured Image
  • CAT6 high speed data communication cable(HP Vision)
  • CAT6 high speed data communication cable(HP Vision)
  • CAT6 high speed data communication cable(HP Vision)

Description:

Product Features:CAT6 high speed data communication cable(HP Vision) is cat6a (Augmented Category 6) and industrial-grade Cat6 cables feature an upgraded bandwidth of 500 MHz, supporting 10 Gbps 10-gigabit transmission up to 100 meters. Constructed with fully shielded or high-density shielding structures, they deliver outstanding resistance to electromagnetic interference (EMI).

Application:CAT6 high speed data communication cable(HP Vision) is suitable for data centers, industrial automation and high-density network cabling environments.


Product Detail

Product Tags

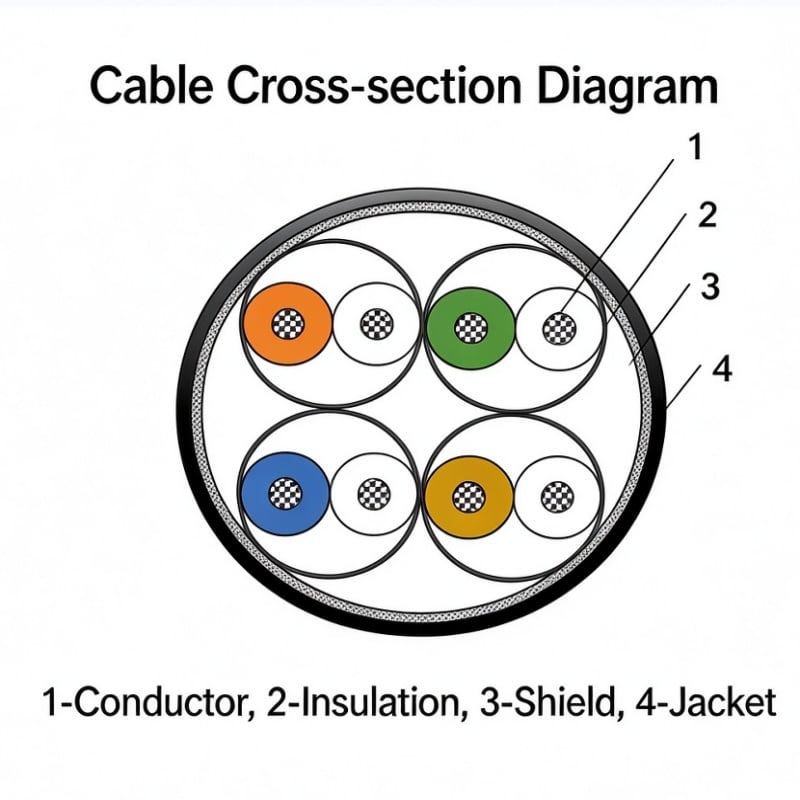

Product Construction Parameters

Product Performance Parameters

Product Part No. Product Performance
Electrical Properties Mechanical Properties Environmental Properties
Characteristic Impedance Operating Frequency(MHz) Attenuation（≤dB/m） Data Transmission Rate Voltage Withstand
(Conductor-Conductor)		 Voltage Withstand
(Conductor-Shield)		 Bending Radius Mold Resistance Flame Retardant
CAT6S-100FR-2*2*20FK-3 100±10 10 0.060 75 2.0kV 1.5kV 10D Class II strains, *Scopulariopsis brevicaulis*, Grade 1 or better. Compliant with VW-1
100 0.198
200 0.290
250 0.328
500 0.480
CAT6S-100FR-2*2*22FK-3 100±10 10 0.065 75 2.0kV 1.5kV 10D Class II strains, *Scopulariopsis brevicaulis*, Grade 1 or better. Compliant with VW-1
100 0.210
200 0.305
250 0.645
500 0.505
CAT6S-100FR-2*2*24FK-3 100±10 10 0.074 75 2.0kV 1.5kV 10D Class II strains, *Scopulariopsis brevicaulis*, Grade 1 or better. Compliant with VW-1
100 0.239
200 0.345
250 0.389
500 0.566
CAT6S-100FR-2*2*26FK-3 100±10 10 0.074 75 2.0kV 1.5kV 10D Class II strains, *Scopulariopsis brevicaulis*, Grade 1 or better. Compliant with VW-1
100 0.239
200 0.345
250 0.389
500 0.566
CAT6S-100FR-2*2*28FK-3 100±10 10 0.074 75 1.5kV 1.5kV 10D Class II strains, *Scopulariopsis brevicaulis*, Grade 1 or better. Compliant with VW-1
100 0.239
200 0.345
250 0.389
500 0.566
CAT6S-100FR-4*2*20FK-3 100±10 10 0.060 75 2.0kV 1.5kV 10D Class II strains, *Scopulariopsis brevicaulis*, Grade 1 or better. Compliant with VW-1
100 0.198
200 0.290
250 0.328
500 0.480
CAT6S-100FR-4*2*22FK-3 100±10 10 0.065 75 2.0kV 1.5kV 10D Class II strains, *Scopulariopsis brevicaulis*, Grade 1 or better. Compliant with VW-1
100 0.210
200 0.305
250 0.645
500 0.505
CAT6S-100FR-4*2*24FK-3 100±10 10 0.066 75 2.0kV 1.5kV 10D Class II strains, *Scopulariopsis brevicaulis*, Grade 1 or better. Compliant with VW-1
100 0.215
200 0.311
250 0.350
500 0.510
CAT6S-100FR-4*2*26FK-3 100±10 10 0.066 75 2.0kV 1.5kV 10D Class II strains, *Scopulariopsis brevicaulis*, Grade 1 or better. Compliant with VW-1
100 0.215
200 0.311
250 0.350
500 0.510
CAT6S-100FR-4*2*28FK-3 100±10 10 0.066 75 1.5kV 1.5kV 10D Class II strains, *Scopulariopsis brevicaulis*, Grade 1 or better. Compliant with VW-1
100 0.215
200 0.311
250 0.350
500 0.510
