CAT7 high speed data communication cable

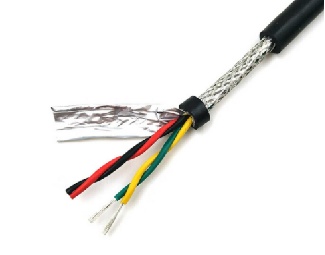

CAT7 high speed data communication cable Featured Image
  • CAT7 high speed data communication cable
  • CAT7 high speed data communication cable
  • CAT7 high speed data communication cable

Description:

Product Features:CAT7 high speed data communication cable is category 7 shielded twisted-pair (STP) network cables feature a bandwidth of 600 MHz and support transmission rates of 10 Gbps and above. Adopting a structure with individual shielding for each pair plus overall shielding, they often require matching dedicated connectors.

Application:CAT7 high speed data communication cable is suitable for industrial workshops with intense electromagnetic interference, financial trading systems and core infrastructure.


Product Detail

Product Tags

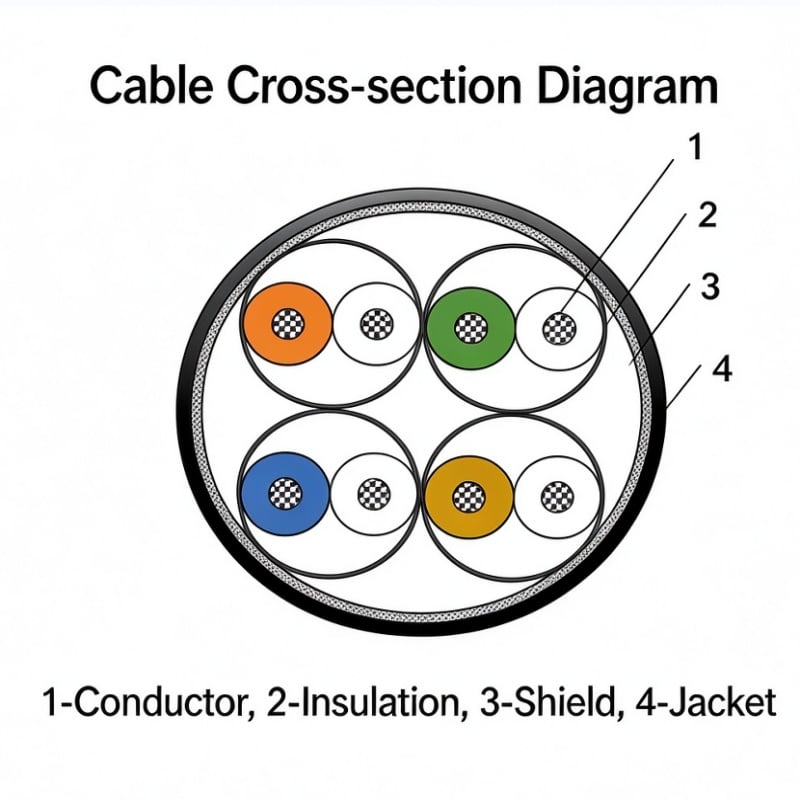

Product Construction Parameters

Product Performance Parameters

Product Part No. Product Performance
Electrical Properties Mechanical Properties Environmental Properties
Characteristic Impedance Operating Frequency(MHz) Attenuation（≤dB/m） Data Transmission Rate Voltage Withstand
(Conductor-Conductor)		 Voltage Withstand
(Conductor-Shield)		 Bending Radius Mold Resistance Flame Retardant
CAT7T-100E-2*2*20U-4 100±10 10 0.061 69 2.0kV 1.5kV 10D / Compliant with VW-1
100 0.202
200 0.296
250 0.335
500 0.490
CAT7T-100E-2*2*22U-4 100±10 10 0.066 69 2.0kV 1.5kV 10D / Compliant with VW-1
100 0.214
200 0.311
250 0.083
500 0.268
CAT7T-100E-2*2*24U-4 100±10 10 0.387 69 2.0kV 1.5kV 10D / Compliant with VW-1
100 0.436
200 0.083
250 0.268
500 0.387
CAT7T-100E-2*2*26U-4 100±10 10 0.436 69 2.0kV 1.5kV 10D / Compliant with VW-1
100 0.083
200 0.268
250 0.387
500 0.436
CAT7T-100E-2*2*28U-4 100±10 10 0.056 69 1.5kV 1.5kV 10D / Compliant with VW-1
100 0.185
200 0.271
250 0.307
500 0.449
CAT7T-100E-4*2*20U-4 100±10 10 0.061 69 2.0kV 1.5kV 10D / Compliant with VW-1
100 0.196
200 0.285
250 0.083
500 0.268
CAT7T-100E-4*2*22U-4 100±10 10 0.387 69 2.0kV 1.5kV 10D / Compliant with VW-1
100 0.436
200 0.083
250 0.268
500 0.387
CAT7T-100E-4*2*24U-4 100±10 10 0.436 69 2.0kV 1.5kV 10D / Compliant with VW-1
100 0.083
200 0.268
250 0.387
500 0.436
CAT7T-100E-4*2*26U-4 100±10 10 0.056 69 2.0kV 1.5kV 10D / Compliant with VW-1
100 0.185
200 0.271
250 0.307
500 0.449
CAT7T-100E-4*2*28U-4 100±10 10 0.061 69 1.5kV 1.5kV 10D / Compliant with VW-1
100 0.196
200 0.285
250 0.069
500 0.223
CAT7S-100F-2*2*20F-3 100±10 10 0.058 69 2.0kV 1.5kV 10D Class II strains, *Scopulariopsis brevicaulis*, Grade 1 or better. Compliant with VW-1
100 0.187
200 0.271
250 0.066
500 0.212
CAT7S-100F-2*2*22F-3 100±10 10 0.055 69 2.0kV 1.5kV 10D Class II strains, *Scopulariopsis brevicaulis*, Grade 1 or better. Compliant with VW-1
100 0.177
200 0.257
250 0.062
500 0.201
CAT7S-100F-2*2*24F-3 100±10 10 0.052 69 2.0kV 1.5kV 10D Class II strains, *Scopulariopsis brevicaulis*, Grade 1 or better. Compliant with VW-1
100 0.168
200 0.245
250 0.059
500 0.191
CAT7S-100F-2*2*26F-3 100±10 10 0.050 69 2.0kV 1.5kV 10D Class II strains, *Scopulariopsis brevicaulis*, Grade 1 or better. Compliant with VW-1
100 0.160
200 0.232
250 0.056
500 0.182
CAT7S-100F-2*2*28F-3 100±10 10 0.047 69 1.5kV 1.5kV 10D Class II strains, *Scopulariopsis brevicaulis*, Grade 1 or better. Compliant with VW-1
100 0.152
200 0.221
250 0.053
500 0.173
CAT7S-100F-4*2*20F-3 100±10 10 0.045 69 2.0kV 1.5kV 10D Class II strains, *Scopulariopsis brevicaulis*, Grade 1 or better. Compliant with VW-1
100 0.144
200 0.210
250 0.051
500 0.164
CAT7S-100F-4*2*22F-3 100±10 10 0.042 69 2.0kV 1.5kV 10D Class II strains, *Scopulariopsis brevicaulis*, Grade 1 or better. Compliant with VW-1
100 0.137
200 0.199
250 0.048
500 0.156
CAT7S-100F-4*2*24F-3 100±10 10 0.040 69 2.0kV 1.5kV 10D Class II strains, *Scopulariopsis brevicaulis*, Grade 1 or better. Compliant with VW-1
100 0.130
200 0.189
250 0.046
500 0.148
CAT7S-100F-4*2*26F-3 100±10 10 0.038 69 2.0kV 1.5kV 10D Class II strains, *Scopulariopsis brevicaulis*, Grade 1 or better. Compliant with VW-1
100 0.124
200 0.180
250 0.043
500 0.141
CAT7S-100F-4*2*28F-3 100±10 10 0.036 69 1.5kV 1.5kV 10D Class II strains, *Scopulariopsis brevicaulis*, Grade 1 or better. Compliant with VW-1
100 0.118
200 0.171
250 0.041
500 0.134
CAT7S-100FT-2*2*20FK-3 100±10 10 0.035 69 2.0kV 1.5kV 10D Class II strains, *Scopulariopsis brevicaulis*, Grade 1 or better. Compliant with VW-1
100 0.112
200 0.162
250 0.039
500 0.127
CAT7S-100FT-2*2*22FK-3 100±10 10 0.038 69 2.0kV 1.5kV 10D Class II strains, *Scopulariopsis brevicaulis*, Grade 1 or better. Compliant with VW-1
100 0.123
200 0.178
250 0.043
500 0.140
CAT7S-100FT-2*2*24FK-3 100±10 10 0.042 69 2.0kV 1.5kV 10D Class II strains, *Scopulariopsis brevicaulis*, Grade 1 or better. Compliant with VW-1
100 0.135
200 0.196
250 0.047
500 0.154
CAT7S-100FT-2*2*26FK-3 100±10 10 0.046 69 2.0kV 1.5kV 10D Class II strains, *Scopulariopsis brevicaulis*, Grade 1 or better. Compliant with VW-1
100 0.149
200 0.216
250 0.052
500 0.169
CAT7S-100FT-2*2*28FK-3 100±10 10 0.051 69 1.5kV 1.5kV 10D Class II strains, *Scopulariopsis brevicaulis*, Grade 1 or better. Compliant with VW-1
100 0.164
200 0.237
250 0.057
500 0.186
CAT7S-100FT-4*2*20FK-3 100±10 10 0.056 69 2.0kV 1.5kV 10D Class II strains, *Scopulariopsis brevicaulis*, Grade 1 or better. Compliant with VW-1
100 0.180
200 0.261
250 0.063
500 0.204
CAT7S-100FT-4*2*22FK-3 100±10 10 0.061 69 2.0kV 1.5kV 10D Class II strains, *Scopulariopsis brevicaulis*, Grade 1 or better. Compliant with VW-1
100 0.198
200 0.287
250 0.069
500 0.225
CAT7S-100FT-4*2*24FK-3 100±10 10 0.067 69 2.0kV 1.5kV 10D Class II strains, *Scopulariopsis brevicaulis*, Grade 1 or better. Compliant with VW-1
100 0.218
200 0.316
250 0.076
500 0.247
CAT7S-100FT-4*2*26FK-3 100±10 10 0.074 69 2.0kV 1.5kV 10D Class II strains, *Scopulariopsis brevicaulis*, Grade 1 or better. Compliant with VW-1
100 0.239
200 0.348
250 0.084
500 0.272
CAT7S-100FT-4*2*28FK-3 100±10 10 0.082 69 1.5kV 1.5kV 10D Class II strains, *Scopulariopsis brevicaulis*, Grade 1 or better. Compliant with VW-1
100 0.263
200 0.382
250 0.092
500 0.299
