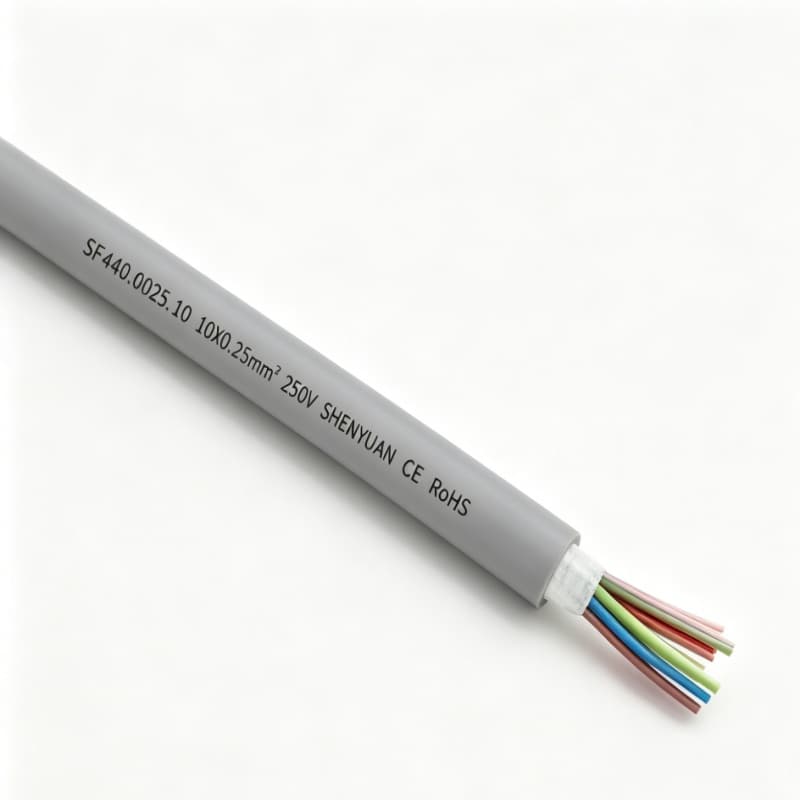

High Speed Drag Chain Data Cables SF440
Cable Construction
Stranded fine bare copper conductors complying with IEC 60228 for fine strand flexible copper
TPEE elastomer insulation
Colour coded cores to DIN47100
Optimized layered stranding
Separator layer
Polyether based PUR sheath, Grey (RAL 7001)
Properties
Flame retardant in accordance with IEC 60332-1-2
Oil resistant complying with EN50290, 90 °C, 168 h
Wear resistant, scratch resistant, chemical resistant and hydrolysis resistant
Cold resistant down to -40 °C, microbe resistant, UV resistant
Optional Enhancements
Halogen free auxiliary materials are available
Corresponding shielded type: SF441
ETFE insulation option for extended service life
Product Features
Designed for harsh environment applications
Stable data transmission performance
Short stranding pitch for conductors and core wires
Fatigue resistant and high abrasion resistant insulation
Core twist relief structure to reduce mechanical stress
Non adhesive cores for easy stripping
High toughness, high elasticity and wear resistant outer sheath
Applications
These cables are suitable for drag chain applications without heavy gravitational torsion load. They can be used in indoor dry or damp environments as well as harsh open air outdoor conditions. As data cables, they apply to long distance moving devices requiring repeated flexing and stable data transmission, such as CNC machine tools, electronic equipment, computers, measuring instruments and automated warehouses. They are also suitable for robot arms and robot bodies with ±180° torsional motion.
| Material Code | Size mm2 | ODmm | Copper Weight kg/km | Cable Weight kg/km |
| SF440.0014.02 | 2X0.14 | 4.1 | 2.6 | 18.4 |
| SF440.0014.03 | 3X0.14 | 4.2 | 3.9 | 20.8 |
| SF440.0014.04 | 4X0.14 | 4.5 | 5.2 | 24.1 |
| SF440.0014.05 | 5X0.14 | 4.8 | 6.5 | 27.6 |
| SF440.0014.06 | 6X0.14 | 5.1 | 7.8 | 30.1 |
| SF440.0014.07 | 7X0.14 | 5.4 | 9.1 | 34.0 |
| SF440.0014.08 | 8X0.14 | 5.7 | 10.4 | 38.0 |
| SF435.0014.16 | 9X0.14 | 6.0 | 11.7 | 42.2 |
| SF440.0014.10 | 10X0.14 | 6.3 | 13.0 | 46.5 |
| SF440.0014.12 | 12X0.14 | 6.9 | 15.6 | 55.6 |
| SF440.0014.14 | 14X0.14 | 6.5 | 18.2 | 52.0 |
| SF440.0014.16 | 16X0.14 | 6.7 | 20.9 | 57.5 |
| SF440.0014.18 | 18X0.14 | 7.0 | 23.5 | 63.3 |
| SF440.0014.20 | 20X0.14 | 7.4 | 26.1 | 69.8 |
| SF440.0014.21 | 21X0.14 | 7.8 | 27.4 | 75.3 |
| SF440.0014.24 | 24X0.14 | 8.1 | 31.3 | 83.9 |
| SF440.0014.25 | 25X0.14 | 8.1 | 32.6 | 86.0 |
| SF440.0014.27 | 27X0.14 | 8.5 | 35.2 | 89.8 |
| SF440.0014.30 | 30X0.14 | 8.7 | 39.1 | 97.5 |
| SF440.0014.32 | 32X0.14 | 9.0 | 41.7 | 104.0 |
| SF440.0014.36 | 36X0.14 | 9.4 | 46.9 | 115.1 |
| Material Code | Size mm2 | ODmm | Copper Weight kg/km | Cable Weight kg/km |
| SF440.0020.02 | 2X0.2 | 4.3 | 3.7 | 20.8 |
| SF440.0020.03 | 3X0.2 | 4.4 | 5.6 | 23.9 |
| SF440.0020.04 | 4X0.2 | 4.7 | 7.4 | 28.0 |
| SF440.0020.05 | 5X0.2 | 5.0 | 9.3 | 32.3 |
| SF440.0020.06 | 6X0.2 | 5.4 | 11.2 | 35.4 |
| SF440.0020.07 | 7X0.2 | 5.7 | 13.0 | 40.2 |
| SF434.0020.08 | 8X0.2 | 6.0 | 14.9 | 45.1 |
| SF440.0020.09 | 9X0.2 | 6.4 | 16.8 | 50.2 |
| SF440.0020.10 | 10X0.2 | 6.7 | 18.6 | 55.5 |
| SF440.0020.12 | 12X0.2 | 7.4 | 22.3 | 67.3 |
| SF440.0020.14 | 14X0.2 | 6.9 | 26.1 | 63.0 |
| SF440.0020.16 | 16X0.2 | 7.2 | 29.8 | 70.2 |
| SF440.0020.18 | 18X0.2 | 7.6 | 33.5 | 78.4 |
| SF440.0020.20 | 20X0.2 | 8.0 | 37.2 | 86.8 |
| SF440.0020.21 | 21X0.2 | 8.5 | 39.1 | 92.8 |
| SF440.0020.24 | 24X0.2 | 8.8 | 44.7 | 104.6 |
| SF440.0020.25 | 25X0.2 | 8.8 | 46.5 | 107.3 |
| SF440.0020.27 | 27X0.2 | 9.2 | 50.3 | 112.2 |
| SF440.0020.30 | 30X0.2 | 9.4 | 55.9 | 122.1 |
| SF440.0020.32 | 32X0.2 | 9.8 | 59.6 | 130.4 |
| SF440.0020.36 | 36X0.2 | 10.1 | 67.0 | 144.6 |
