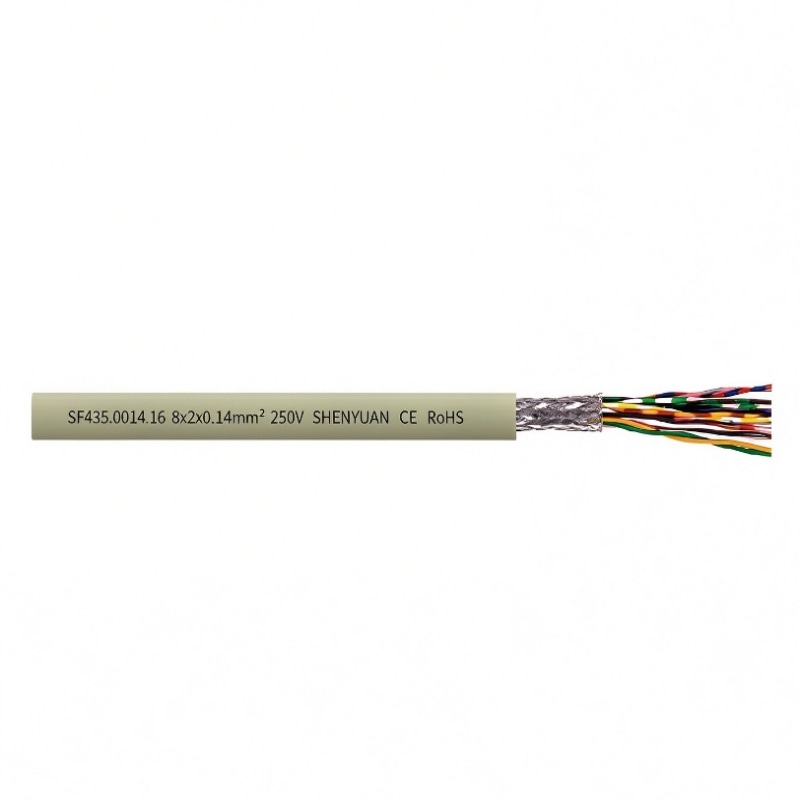

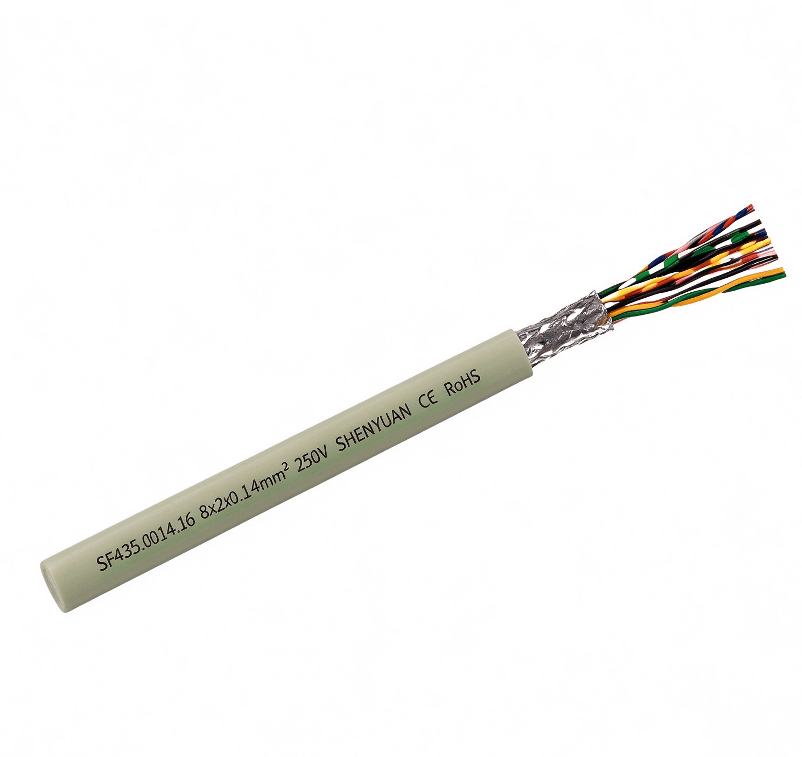

High Speed Drag Chain Data Cables (PVC Sheath) SF435
Cable Construction
Stranded fine bare copper conductors, compliant with IEC 60228 fine flexible copper wire
TPEE elastomer insulation
Colour‑coded cores per DIN 47100
Pair‑twisted cores
Layered stranding of twisted pairs for optimized geometry
Separator layer
Tinned‑copper braided shield
PVC outer sheath (TM4)
Light grey (RAL 7032)
Characteristics
Flame‑retardant per IEC 60332‑1‑2
Oil‑resistant compliant with EN 50290, 70 °C, 4 hours
Electromagnetic compatibility complies with EU EMC Directive
UV‑resistant; black outer sheath
Optional Upgrades
‑40 °C cold‑resistant material available for low‑temperature environments
105 °C‑rated material available for high‑temperature environments
High‑oil‑resistance PVC variant available for oil‑prone environment
ETFE insulation option for extended service life
Product Features
Stable data transmission
Short lay length for conductors and core wires
Fatigue‑resistant and highly wear‑resistant insulation
Core‑wire untwisting to reduce mechanical stress
Non‑adhesive core wires, easy stripping
High‑toughness, high‑elasticity, wear‑resistant outer sheath
Excellent anti‑electromagnetic‑interference performance
Applications
High Speed Drag Chain Data Cables (PVC Sheath) SF435 are designed for non‑load‑bearing moving drag‑chain applications. Suitable for indoor dry or damp environments; not suitable for open‑air outdoor exposure. This data cable applies to CNC machine tools, electronic equipment, computers, measuring instruments, automated warehouses and other equipment subject to repeated long‑distance movement requiring stable data transmission. Also suitable for robot arms or robot bodies with ±180° torsion. The braided shield provides protection against electromagnetic interference
| Material Code | Size mm2 | OD mm | Copper Weight kg/km | Cable Weight kg/km |
| SF435.0014.02 | 1X2X0.14 | 4.6 | 10.2 | 30.3 |
| SF435.0014.04 | 2X2X0.14 | 5.9 | 17.4 | 48.5 |
| SF435.0014.06 | 3X2X0.14 | 6.2 | 20.9 | 53.9 |
| SF435.0014.08 | 4X2X0.14 | 6.6 | 24.9 | 62.0 |
| SF435.0014.10 | 5X2X0.14 | 7.1 | 29.2 | 67.5 |
| SF435.0014.12 | 6X2X0.14 | 7.7 | 33.4 | 78.4 |
| SF435.0014.14 | 7X2X0.14 | 8.3 | 37.7 | 90.1 |
| SF435.0014.16 | 8X2X0.14 | 8.9 | 42.1 | 102.6 |
| SF435.0014.18 | 9X2X0.14 | 9.5 | 46.4 | 115.7 |
| SF435.0014.20 | 10X2X0.14 | 10.2 | 50.8 | 129.5 |
| SF435.0014.22 | 11X2X0.14 | 10.8 | 55.1 | 144.0 |
| SF435.0014.24 | 12X2X0.14 | 11.4 | 59.5 | 159.3 |
| SF435.0014.26 | 13X2X0.14 | 10.5 | 59.6 | 135.9 |
| SF435.0014.28 | 14X2X0.14 | 10.5 | 62.3 | 140.0 |
| SF435.0014.30 | 15X2X0.14 | 11.1 | 66.5 | 151.6 |
| SF435.0014.32 | 16X2X0.14 | 11.1 | 69.1 | 155.7 |
| SF435.0014.34 | 17X2X0.14 | 11.7 | 73.4 | 168.2 |
| SF435.0014.36 | 18X2X0.14 | 11.7 | 76.0 | 172.4 |
| SF435.0014.38 | 19X2X0.14 | 11.7 | 78.7 | 174.5 |
| SF435.0014.40 | 20X2X0.14 | 12.3 | 82.9 | 189.7 |
| SF435.0014.42 | 21X2X0.14 | 13.1 | 87.8 | 206.1 |
| Material Code | Size mm2 | OD mm | Copper Weight kg/km | Cable Weight kg/km |
| SF435.0014.46 | 23X2X0.14 | 13.3 | 93.6 | 219.6 |
| SF435.0014.48 | 24X2X0.14 | 13.5 | 96.9 | 226.8 |
| SF435.0014.50 | 25X2X0.14 | 13.5 | 99.5 | 231.0 |
| SF435.0020.02 | 1X2X0.2 | 4.7 | 12.0 | 33.5 |
| SF435.0020.04 | 2X2X0.2 | 6.3 | 20.7 | 54.7 |
| SF435.0020.06 | 3X2X0.2 | 6.6 | 25.4 | 61.5 |
| SF435.0020.08 | 4X2X0.2 | 7.0 | 30.7 | 71.2 |
| SF435.0020.10 | 5X2X0.2 | 7.6 | 36.2 | 79.3 |
