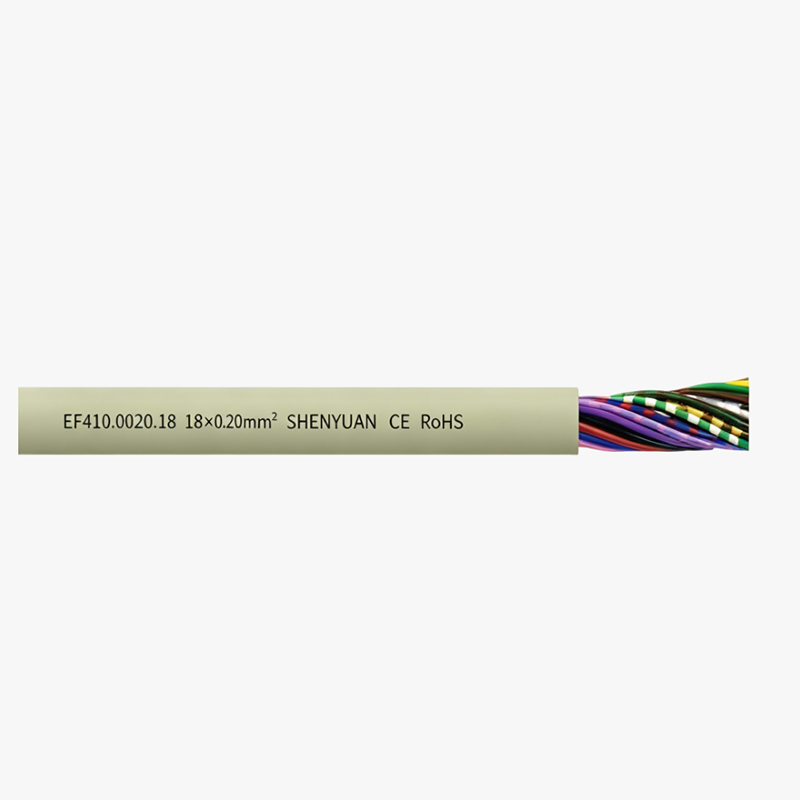

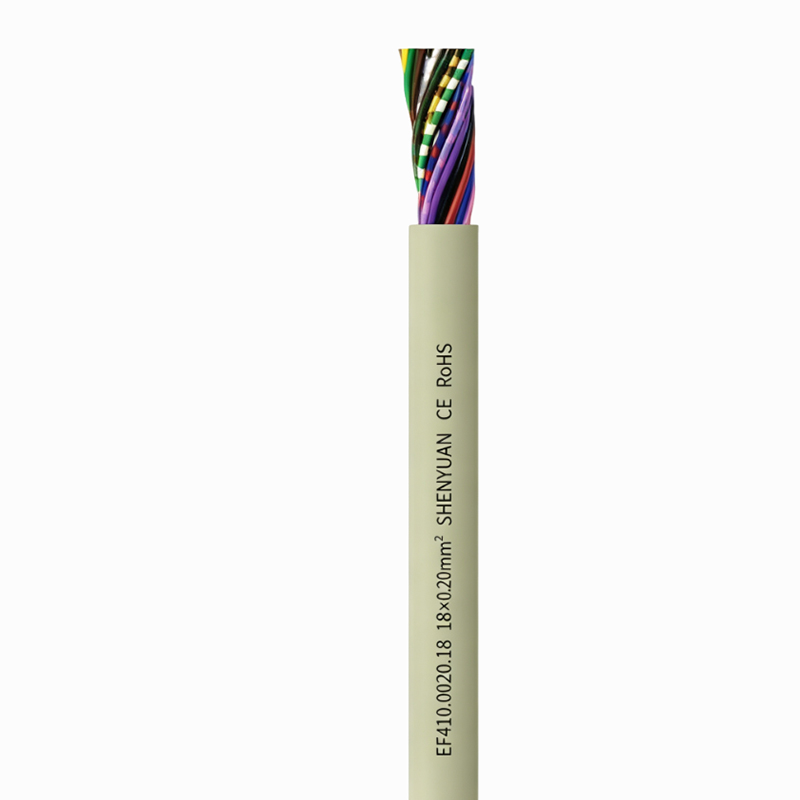

Low Speed Drag Chain Data Cable EF410

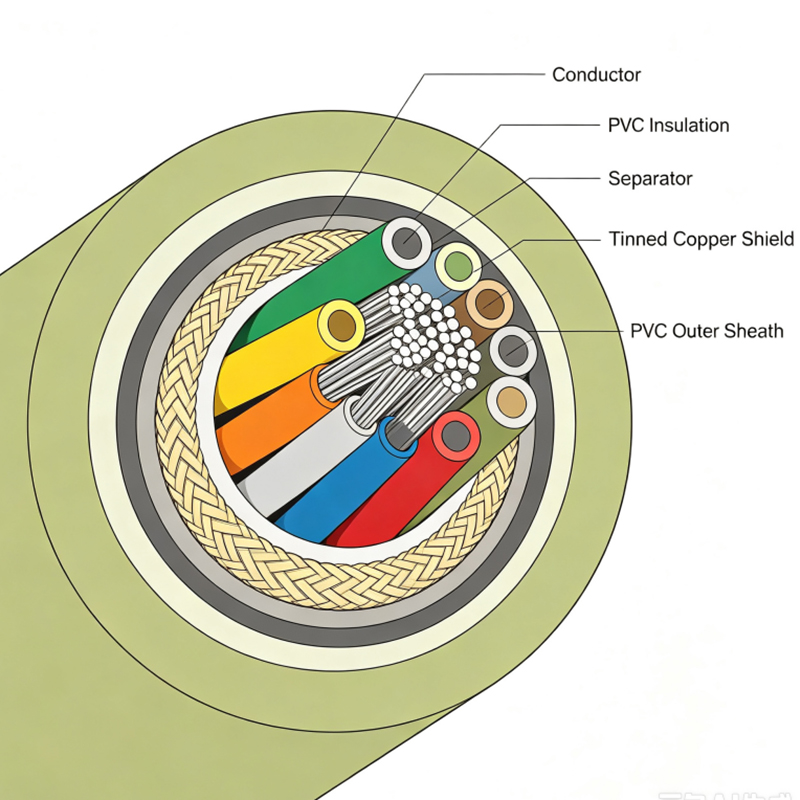

Cable Construction
Stranded bare fine copper wires
Compliant with IEC 60228 Class 6
PVC insulation TI2
Coloured cores to DIN 47100
Optimized layered stranding
PVC outer sheath TM4
Light grey (RAL 7032)
Characteristics
Flame retardant to IEC 60332-1-2
Oil resistant in accordance with EN50290, 70 °C, 4 h
UV resistant; black outer sheath
Optional Enhancements
-40 °C cold-resistant compound available for low-temperature environme nts
105 °C rated material available for high-temperature environments
High-oil-resistant PVC available for oily environments
Non-woven fabric wrapping design for weight-reduction purpose
Corresponding shielded version: Model EF411
Product Features
Stable data transmission
Short lay length for conductors and core wires
Twisting relief of core wires to reduce mechanical stress
Non-adhesive core wires, easy to strip
High-toughness,high-elasticity and abrasion-resistant outer sheath
Applications
These cables are intended for non-load-bearing moving drag-chain applications, for indoor use in dry or humid conditions. Not suitable for open-air outdoor exposure.As data cables, they are used in CNC machine tools, electronic equipment computers, measuring instruments, automated warehouses and other equipment requiring repeated movement together with stable signal & data transmission.
| Material Code | Size mm2 |
ODmm | Copper Weight kg/km |
Cable Weight kg/km |
| EF410.0014.02 | 2X0.14 | 3.3 | 2.6 | 15.1 |
| EF410.0014.03 | 3X0.14 | 3.5 | 3.9 | 17.6 |
| EF410.0014.04 | 4X0.14 | 3.9 | 5.2 | 21.4 |
| EF410.0014.05 | 5X0.14 | 4.2 | 6.5 | 25.7 |
| EF410.0014.06 | 6X0.14 | 4.6 | 7.9 | 30.3 |
| EF410.0014.07 | 7X0.14 | 5.0 | 9.2 | 35.2 |
| EF410.0014.08 | 8X0.14 | 5.4 | 10.5 | 40.5 |
| EF410.0014.09 | 9X0.14 | 5.8 | 11.8 | 46.5 |
| EF410.0014.10 | 10X0.14 | 6.2 | 13.1 | 53.4 |
| EF410.0014.12 | 12X0.14 | 7.0 | 15.7 | 65.6 |
| EF410.0014.14 | 14X0.14 | 6.4 | 18.3 | 58.6 |
| EF410.0014.16 | 16X0.14 | 6.7 | 20.9 | 65.8 |
| EF410.0014.18 | 18X0.14 | 7.1 | 23.6 | 73.5 |
| EF410.0014.20 | 20X0.14 | 7.5 | 26.2 | 81.0 |
| EF410.0014.21 | 21X0.14 | 8.0 | 27.5 | 88.1 |
| EF410.0014.24 | 24X0.14 | 8.3 | 31.4 | 99.7 |
| EF410.0014.25 | 25X0.14 | 8.3 | 32.7 | 102.7 |
| EF410.0014.27 | 27X0.14 | 8.7 | 35.3 | 105.2 |
| EF410.0014.30 | 30X0.14 | 8.9 | 39.3 | 114.3 |
| EF410.0014.32 | 32X0.14 | 9.3 | 41.9 | 122.9 |
| EF410.0014.36 | 36X0.14 | 9.7 | 47.1 | 135.2 |
| Material Code | Size mm2 |
ODmm | Copper Weight kg/km |
Cable Weight kg/km |
| EF410.0025.02 | 2X0.25 | 3.7 | 4.7 | 19.8 |
| EF410.0025.03 | 3X0.25 | 3.9 | 7.0 | 23.6 |
| EF410.0025.04 | 4X0.25 | 4.3 | 9.3 | 28.9 |
| EF410.0025.05 | 5X0.25 | 4.7 | 11.6 | 34.9 |
| EF410.0025.06 | 6X0.25 | 5.2 | 14.0 | 41.4 |
| EF410.0025.07 | 7X0.25 | 5.6 | 16.3 | 48.2 |
| EF410.0025.08 | 8X0.25 | 6.1 | 18.6 | 55.5 |
| EF410.0025.09 | 9X0.25 | 6.5 | 20.9 | 63.8 |
| EF410.0025.10 | 10X0.25 | 7.0 | 23.3 | 73.3 |
| EF410.0025.12 | 12X0.25 | 7.9 | 27.9 | 90.1 |
| EF410.0025.14 | 14X0.25 | 7.2 | 32.6 | 81.9 |
| EF410.0025.16 | 16X0.25 | 7.6 | 37.2 | 92.3 |
| EF410.0025.18 | 18X0.25 | 8.1 | 41.9 | 103.3 |
| EF410.0025.20 | 20X0.25 | 8.5 | 46.5 | 114.0 |
| EF410.0025.21 | 21X0.25 | 9.1 | 48.9 | 122.4 |
| EF410.0025.24 | 24X0.25 | 9.4 | 55.9 | 140.3 |
| EF410.0025.25 | 25X0.25 | 9.4 | 58.2 | 144.7 |
| EF410.0025.27 | 27X0.25 | 9.9 | 62.8 | 148.9 |
| EF410.0025.30 | 30X0.25 | 10.1 | 69.8 | 162.2 |
| EF410.0025.32 | 32X0.25 | 10.5 | 74.5 | 174.4 |
| EF410.0025.36 | 36X0.25 | 11.0 | 83.8 | 192.4 |
| EF410.0030.02 | 2X0.3 | 3.9 | 5.7 | 22.0 |
| EF410.0030.03 | 3X0.3 | 4.1 | 8.5 | 26.4 |
| EF410.0030.04 | 4X0.3 | 4.5 | 11.3 | 32.5 |
| EF410.0030.05 | 5X0.3 | 4.9 | 14.2 | 39.3 |
| EF410.0030.06 | 6X0.3 | 5.4 | 17.0 | 46.6 |
| EF410.0030.07 | 7X0.3 | 5.9 | 19.9 | 54.3 |
| EF410.0030.08 | 8X0.3 | 6.3 | 22.7 | 62.6 |
| EF410.0030.09 | 9X0.3 | 6.8 | 25.5 | 72.0 |
| EF410.0030.10 | 10X0.3 | 7.3 | 28.4 | 82.6 |
| EF410.0030.12 | 12X0.3 | 8.3 | 34.0 | 101.6 |
| EF410.0030.14 | 14X0.3 | 7.6 | 39.7 | 93.0 |
| EF410.0030.16 | 16X0.3 | 8.0 | 45.4 | 104.9 |
| EF410.0030.18 | 18X0.3 | 8.5 | 51.1 | 117.4 |
| EF410.0030.20 | 20X0.3 | 8.9 | 56.7 | 129.7 |
| EF410.0030.21 | 21X0.3 | 9.5 | 59.6 | 139.1 |
| EF410.0030.24 | 24X0.3 | 9.9 | 68.1 | 159.6 |
| EF410.0030.25 | 25X0.3 | 9.9 | 70.9 | 164.7 |
| EF410.0030.27 | 27X0.3 | 10.4 | 76.6 | 169.7 |
| EF410.0030.30 | 30X0.3 | 10.6 | 85.1 | 185.0 |
| EF410.0030.32 | 32X0.3 | 11.1 | 90.8 | 198.9 |
| EF410.0030.36 | 36X0.3 | 11.5 | 102.1 | 219.7 |
| EF410.0034.03 | 2X0.34 | 4.3 | 6.1 | 26.3 |
| EF410.0034.03 | 3X0.34 | 4.2 | 9.2 | 27.6 |
| EF410.0034.04 | 4X0.34 | 4.6 | 12.2 | 34.0 |
| EF410.0034.05 | 5X0.34 | 5.0 | 15.3 | 41.1 |
| EF410.0034.06 | 6X0.34 | 5.5 | 18.3 | 48.8 |
| EF410.0034.07 | 7X0.34 | 6.0 | 21.4 | 56.9 |
| EF410.0034.08 | 8X0.34 | 6.5 | 24.4 | 65.6 |
| EF410.0034.09 | 9X0.34 | 6.9 | 27.5 | 75.4 |
| EF410.0034.10 | 10X0.34 | 7.4 | 30.5 | 86.5 |
| EF410.0034.12 | 12X0.34 | 8.4 | 36.7 | 106.4 |
| EF410.0034.14 | 14X0.34 | 7.7 | 42.8 | 97.7 |
| EF410.0034.16 | 16X0.34 | 8.2 | 48.9 | 110.2 |
| EF410.0034.18 | 18X0.34 | 8.6 | 55.0 | 123.4 |
| EF410.0034.20 | 20X0.34 | 9.1 | 61.1 | 136.3 |
| EF410.0034.21 | 21X0.34 | 9.7 | 64.1 | 146.2 |
| EF410.0034.24 | 24X0.34 | 10.1 | 73.3 | 167.7 |
| EF410.0034.25 | 25X0.34 | 10.1 | 76.4 | 173.1 |
| EF410.0034.27 | 27X0.34 | 10.6 | 82.5 | 178.4 |
| EF410.0034.30 | 30X0.34 | 10.8 | 91.6 | 194.6 |
| EF410.0034.32 | 32X0.34 | 11.3 | 97.7 | 209.3 |
| EF410.0034.36 | 36X0.34 | 11.8 | 110.0 | 231.2 |
| EF410.0050.02 | 2X0.5 | 4.8 | 9.3 | 34.4 |
| EF410.0050.03 | 3X0.5 | 5.1 | 14.0 | 41.5 |
| EF410.0050.04 | 4X0.5 | 5.6 | 18.6 | 51.5 |
| EF410.0050.05 | 5X0.5 | 6.2 | 23.3 | 62.6 |
| EF410.0050.06 | 6X0.5 | 6.8 | 27.9 | 74.6 |
| EF410.0050.07 | 7X0.5 | 7.4 | 32.6 | 87.2 |
| EF410.0050.08 | 8X0.5 | 8.0 | 37.2 | 100.8 |
| EF410.0050.09 | 9X0.5 | 8.6 | 41.9 | 116.3 |
| EF410.0050.10 | 10X0.5 | 9.3 | 46.5 | 133.9 |
| EF410.0050.12 | 12X0.5 | 10.5 | 55.9 | 165.2 |
