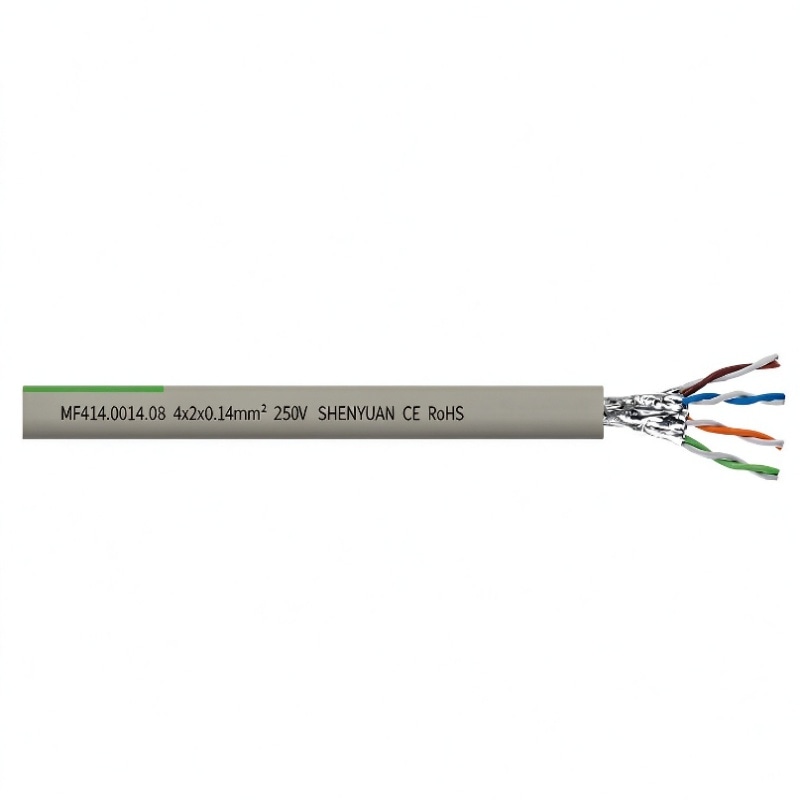

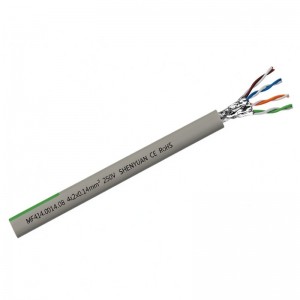

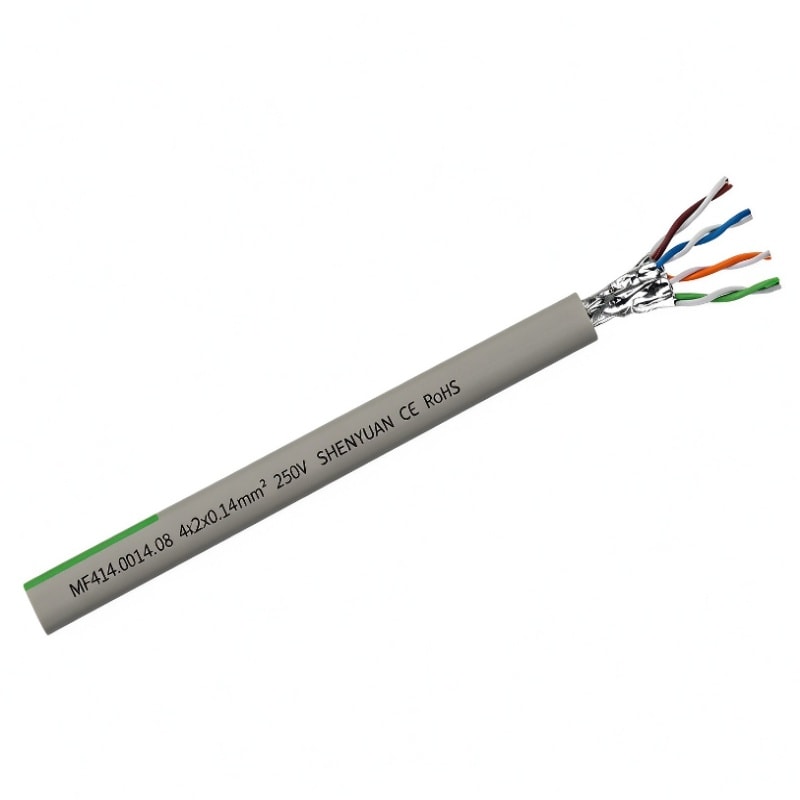

Medium Speed Drag Chain Data Cables MF414
Cable Construction
Stranded fine bare copper conductors, compliant with IEC 60228 Class 6
TPE elastomer insulation
Colour‑coded cores per DIN 47100
Pair‑twisted cores
Layered stranding of twisted pairs for optimized geometry
Separator layer
PVC outer sheath (TM4)
Light grey (RAL 7032)
Characteristics
Flame retardant to IEC 60332-1-2
Oil-resistant in accordance EN50290, 70 °C, 4 h
UVresistant; black outer sheath
Optional Upgrades
‑40 °C cold‑resistant material available for low‑temperature environments
105 °C‑rated material available for high‑temperature environments
High‑oil‑resistance PVC variant available for oil‑prone environments
Corresponding shielded model: MF415
Product Features
Stable data transmission
Short lay length for conductors and core wires
Core‑wire untwisting to reduce mechanical stress
Non‑adhesive core wires, easy stripping
High‑toughness, high‑elasticity, wear‑resistant outer sheath
Applications
Medium Speed Drag Chain Data Cables MF414 are designed for non‑load‑bearing moving drag‑chain applications. Suitable for indoor dry or damp environments; not suitable for open‑air outdoor exposure. This data cable is used for CNC machine tools, electronic equipment, computers, measuring instruments, automated warehouses and other equipment subject to repeated long‑distance movement requiring stable data transmission.
| Material Code | Size mm2 | OD mm | Copper Weight kg/km | Cable Weight kg/km |
| MF414.0014.02 | 1X2X0.14 | 3.6 | 2.6 | 16.5 |
| MF414.0014.04 | 2X2X0.14 | 5.2 | 5.3 | 31.9 |
| MF414.0014.06 | 3X2X0.14 | 5.5 | 7.9 | 36.6 |
| MF414.0014.08 | 4X2X0.14 | 6.0 | 10.6 | 44.0 |
| MF414.0014.10 | 5X2X0.14 | 6.6 | 13.2 | 52.5 |
| MF414.0014.12 | 6X2X0.14 | 7.2 | 15.9 | 57.5 |
| MF414.0014.14 | 7X2X0.14 | 7.8 | 18.5 | 67.5 |
| MF414.0014.16 | 8X2X0.14 | 8.4 | 21.1 | 78.3 |
| MF414.0014.18 | 9X2X0.14 | 9.0 | 23.8 | 89.8 |
| MF414.0014.20 | 10X2X0.14 | 9.6 | 26.4 | 102.1 |
| MF414.0014.22 | 11X2X0.14 | 10.2 | 29.1 | 115.1 |
| MF414.0014.24 | 12X2X0.14 | 10.8 | 31.7 | 128.9 |
| MF414.0014.26 | 13X2X0.14 | 9.9 | 34.4 | 104.8 |
| MF414.0014.28 | 14X2X0.14 | 9.9 | 37.0 | 109.0 |
| MF414.0014.30 | 15X2X0.14 | 10.5 | 39.7 | 118.7 |
| MF414.0014.32 | 16X2X0.14 | 10.5 | 42.3 | 122.9 |
| MF414.0014.34 | 17X2X0.14 | 11.1 | 44.9 | 133.4 |
| MF414.0014.36 | 18X2X0.14 | 11.1 | 47.6 | 137.6 |
| MF414.0014.38 | 19X2X0.14 | 11.1 | 50.2 | 139.2 |
| MF414.0014.40 | 20X2X0.14 | 11.7 | 52.9 | 153.1 |
| MF414.0014.42 | 21X2X0.14 | 12.4 | 55.5 | 166.9 |
| MF414.0014.44 | 22X2X0.14 | 12.3 | 58.2 | 169.5 |
| MF414.0014.46 | 23X2X0.14 | 12.7 | 60.8 | 180.2 |
| MF414.0014.48 | 24X2X0.14 | 12.9 | 63.4 | 186.6 |
| MF414.0014.50 | 25X2X0.14 | 12.9 | 66.1 | 190.8 |
| MF414.0020.02 | 1X2X0.2 | 3.8 | 3.8 | 19.2 |
| MF414.0020.04 | 2X2X0.2 | 5.6 | 7.6 | 37.8 |
| MF414.0020.06 | 3X2X0.2 | 5.9 | 11.5 | 44.0 |
| MF414.0020.08 | 4X2X0.2 | 6.5 | 15.3 | 53.3 |
| MF414.0020.10 | 5X2X0.2 | 7.1 | 19.1 | 63.9 |
| Material Code | Size mm2 | OD mm | Copper Weight kg/km | Cable Weight kg/km |
| MF414.0020.12 | 6X2X0.2 | 7.8 | 22.9 | 70.3 |
| MF414.0020.14 | 7X2X0.2 | 8.4 | 26.7 | 82.6 |
| MF414.0020.16 | 8X2X0.2 | 9.1 | 30.5 | 96.0 |
| MF414.0020.18 | 9X2X0.2 | 9.7 | 34.4 | 110.2 |
| MF414.0020.20 | 10X2X0.2 | 10.4 | 38.2 | 125.4 |
| MF414.0020.22 | 11X2X0.2 | 11.1 | 42.0 | 141.4 |
| MF414.0020.24 | 12X2X0.2 | 11.8 | 45.8 | 158.5 |
| MF414.0020.26 | 13X2X0.2 | 10.8 | 49.6 | 130.1 |
| MF414.0020.28 | 14X2X0.2 | 10.8 | 53.5 | 135.7 |
| MF414.0020.30 | 15X2X0.2 | 11.4 | 57.3 | 147.7 |
| MF414.0020.32 | 16X2X0.2 | 11.4 | 61.1 | 153.2 |
| MF414.0020.34 | 17X2X0.2 | 12.1 | 64.9 | 166.3 |
| MF414.0020.36 | 18X2X0.2 | 12.1 | 68.7 | 171.9 |
| MF414.0020.38 | 19X2X0.2 | 12.1 | 72.6 | 174.3 |
| MF414.0020.40 | 20X2X0.2 | 12.7 | 76.4 | 191.4 |
| MF414.0020.42 | 21X2X0.2 | 13.6 | 80.2 | 208.4 |
| MF414.0020.44 | 22X2X0.2 | 13.4 | 84.0 | 212.1 |
| MF414.0020.46 | 23X2X0.2 | 13.8 | 87.8 | 225.5 |
| MF414.0020.48 | 24X2X0.2 | 14.0 | 91.6 | 233.6 |
| MF414.0020.50 | 25X2X0.2 | 14.0 | 95.5 | 239.2 |
| MF414.0025.02 | 1X2X0.25 | 4.0 | 4.7 | 21.2 |
| MF414.0025.04 | 2X2X0.25 | 5.9 | 9.4 | 42.1 |
| MF414.0025.06 | 3X2X0.25 | 6.2 | 14.1 | 49.2 |
| MF414.0025.08 | 4X2X0.25 | 6.8 | 18.8 | 59.9 |
| MF414.0025.10 | 5X2X0.25 | 7.5 | 23.5 | 72.0 |
| MF414.0025.12 | 6X2X0.25 | 8.1 | 28.2 | 79.4 |
| MF414.0025.14 | 7X2X0.25 | 8.8 | 32.9 | 93.5 |
| MF414.0025.16 | 8X2X0.25 | 9.5 | 37.6 | 108.7 |
| MF414.0025.18 | 9X2X0.25 | 10.2 | 42.3 | 124.8 |
| MF414.0025.20 | 10X2X0.25 | 11.0 | 47.0 | 142.0 |
