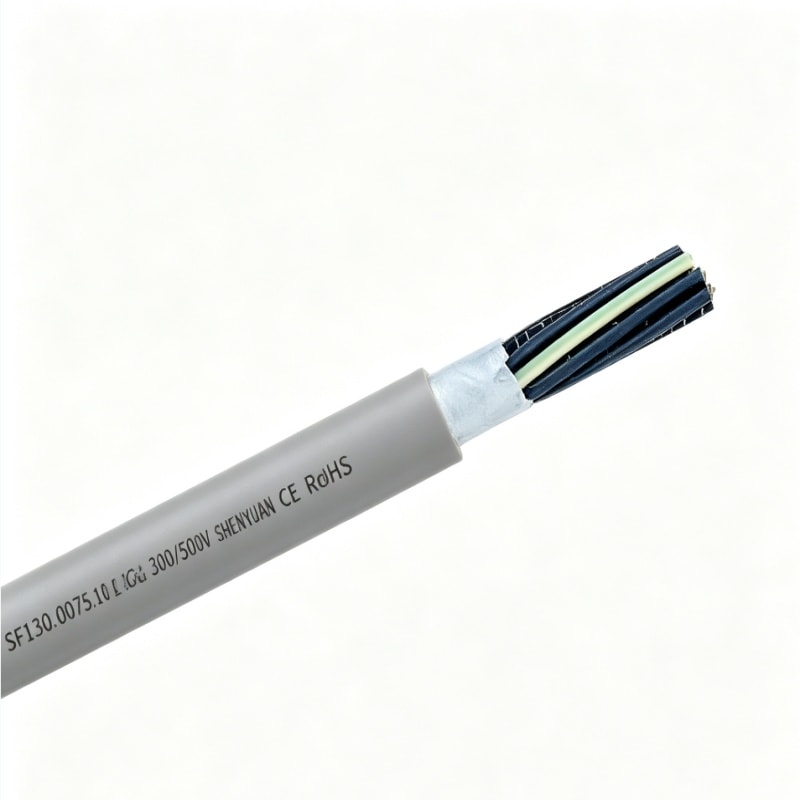

High Speed Drag Chain Control Cables SF130
Cable Construction
Stranded fine bare copper conductors complying with IEC 60228 for fine strand flexible copper
TPEE elastomer insulation complying with VDE 0293-308
Optimized layered stranding
PVC TM4 sheath, Grey (RAL 7001)
Properties
Flame retardant complying with IEC 60332-1-2
Oil resistant acc. to EN50290, 70 °C, 4 h
UV resistant; black sheath available
Optional Enhancements
-40 ℃ low temperature resistant compound for cold environment applications
105 ℃ high grade compound for high temperature environment applications
High oil resistance PVC for oily condition applications
Corresponding shielded version: SF131
ETFE insulation option for extended service life
Product Features
Short stranding pitch for conductors and core wires
Fatigue resistant & highly abrasion resistant insulation
Core twist relief structure to reduce mechanical stress
Small outer diameter to save wiring space
High toughness, high elasticity, wear resistant outer sheath
Applications
These cables are intended for drag chain applications without heavy gravitational torsion load. Suitable for indoor dry and damp environments; not suitable for open air outdoor use. As control cables, they apply to long travel moving devices requiring repeated flexing and high stability in industrial automation, such as machine tools, material handling conveyors, assembly lines, production lines and laser processing equipment. They are also suitable for robot arms and robot bodies with ±180° torsional motion.
| Material Code | Size mm2 | OD mm | Copper Weight kg/km | Cable Weight kg/km |
| SF130.0050.02 | 2X0.5 | 5.7 | 9.9 | 42.4 |
| SF130.0050.03 | 3G0.5 | 6.0 | 14.8 | 50.2 |
| SF130.0050.04 | 4G0.5 | 6.4 | 19.7 | 60.2 |
| SF130.0050.05 | 5G0.5 | 7.0 | 24.7 | 71.1 |
| SF130.0050.06 | 6G0.5 | 7.5 | 29.6 | 78.5 |
| SF130.0050.07 | 7G0.5 | 8.0 | 34.5 | 90.2 |
| SF130.0050.08 | 8G0.5 | 8.7 | 39.5 | 103.7 |
| SF130.0050.09 | 9G0.5 | 9.3 | 44.4 | 118.5 |
| SF130.0050.10 | 10G0.5 | 10.0 | 49.3 | 134.1 |
| SF130.0050.12 | 12G0.5 | 11.3 | 59.2 | 167.6 |
| SF130.0050.14 | 14G0.5 | 10.3 | 69.1 | 155.1 |
| SF130.0050.16 | 16G0.5 | 10.9 | 79.0 | 175.7 |
| SF130.0050.18 | 18G0.5 | 11.6 | 88.8 | 197.2 |
| SF130.0050.20 | 20G0.5 | 12.2 | 98.7 | 219.4 |
| SF130.0050.21 | 21G0.5 | 13.0 | 103.6 | 236.9 |
| SF130.0050.24 | 24G0.5 | 13.5 | 118.4 | 266.5 |
| SF130.0050.25 | 25G0.5 | 13.5 | 123.4 | 273.9 |
| SF130.0050.27 | 27G0.5 | 14.1 | 133.2 | 286.4 |
| SF130.0050.30 | 30G0.5 | 14.5 | 148.0 | 313.0 |
| SF130.0050.32 | 32G0.5 | 15.1 | 157.9 | 335.1 |
| SF130.0050.36 | 36G0.5 | 17.4 | 248.7 | 475.6 |
| Material Code | Size mm2 | OD mm | Copper Weight kg/km | Cable Weight kg/km |
| SF130.0075.02 | 2X0.75 | 6.1 | 13.8 | 50.3 |
| SF130.0075.03 | 3G0.75 | 6.4 | 20.7 | 60.4 |
| SF130.0075.04 | 4G0.75 | 6.9 | 27.6 | 73.1 |
| SF130.0075.05 | 5G0.75 | 7.5 | 34.5 | 86.8 |
| SF130.0075.06 | 6G0.75 | 8.1 | 41.5 | 96.3 |
| SF130.0075.07 | 7G0.75 | 8.8 | 48.4 | 112.6 |
| SF130.0075.08 | 8G0.75 | 9.5 | 55.3 | 130.5 |
| SF130.0075.09 | 9G0.75 | 10.2 | 62.2 | 149.2 |
| SF130.0075.10 | 10G0.75 | 10.9 | 69.1 | 168.9 |
| SF130.0075.12 | 12G0.75 | 12.4 | 82.9 | 211.1 |
| SF130.0075.14 | 14G0.75 | 11.4 | 96.7 | 197.2 |
| SF130.0075.16 | 16G0.75 | 12.0 | 110.5 | 223.7 |
| SF130.0075.18 | 18G0.75 | 12.7 | 124.4 | 251.4 |
| SF130.0075.20 | 20G0.75 | 13.4 | 138.2 | 279.9 |
| SF130.0075.21 | 21G0.75 | 14.3 | 145.1 | 301.9 |
| SF130.0075.24 | 24G0.75 | 14.9 | 165.8 | 340.2 |
| SF130.0075.25 | 25G0.75 | 14.9 | 172.7 | 350.0 |
| SF130.0075.27 | 27G0.75 | 15.6 | 186.5 | 366.5 |
| SF130.0075.30 | 30G0.75 | 16.0 | 207.3 | 401.2 |
| SF130.0075.32 | 32G0.75 | 16.7 | 221.1 | 429.5 |
| SF130.0075.36 | 36G0.75 | 17.4 | 248.7 | 478.7 |
