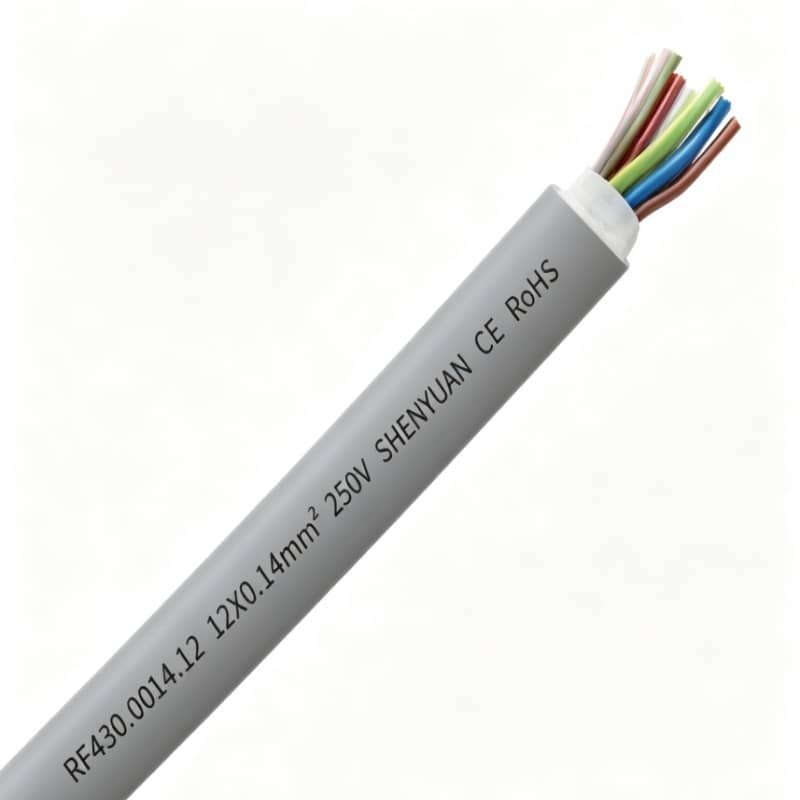

Medium Speed Robot Data Cable RF430
Cable Construction
Stranded fine bare copper conductors complying with IEC 60228 fine strand flexible copper
TPEE elastomer insulation
Colored cores to DIN 47100
Layered stranding for 2-11 cores; grouped stranding for 12 cores and above
Separator layer
PVC sheath, TM4
Grey (RAL 7001)
Properties
Flame retardant per IEC 60332-1-2
Oil resistant in accordance with EN50290, 70℃, 4 h
UV resistant; black outer sheath
Optional Enhancements
-40 ℃ cold resistant compound for low temperature environments
105 ℃ rated material for high temperature environments
High oil resistance PVC for oily condition applications
Corresponding shielded model: RF431
Product Features
Stable data transmission
Short stranding pitch for conductors
Fatigue resistant, highly abrasion resistant insulation
Core twist relief design to reduce mechanical stress
Suitable for twist optimized cable stranding
High toughness, high elasticity, abrasion resistant outer sheath
Applications
These cables are for dynamic movement applications without heavy gravitational torsion load. For indoor dry or damp environments; not for open air outdoor use. Robot cable application for robot arms / robot bodies with ±180° torsional motion. Also suitable for CNC machine tools, electronic equipment, computers, measuring instruments, automated warehouses and other equipment requiring stable long distance data transmission under repeated flexing.
| Material Code | Size mm2 | OD mm | Copper Weight kg/km | Cable Weight kg/km |
| RF430.0014.02 | 2X0.14 | 4.5 | 2.6 | 24.4 |
| RF430.0014.03 | 3X0.14 | 4.6 | 3.9 | 27.1 |
| RF430.0014.04 | 4X0.14 | 4.9 | 5.2 | 30.7 |
| RF430.0014.05 | 5X0.14 | 5.2 | 6.5 | 34.7 |
| RF430.0014.06 | 6X0.14 | 5.5 | 7.8 | 37.7 |
| RF430.0014.07 | 7X0.14 | 5.8 | 9.1 | 42.0 |
| RF430.0014.08 | 8X0.14 | 6.1 | 10.4 | 46.6 |
| RF430.0014.09 | 9X0.14 | 6.4 | 11.7 | 51.2 |
| RF430.0014.10 | 10X0.14 | 6.7 | 13.0 | 56.0 |
| RF430.0014.12 | 12X0.14 | 7.6 | 15.6 | 68.0 |
| RF430.0014.14 | 14X0.14 | 8.3 | 18.2 | 69.9 |
| RF430.0014.16 | 16X0.14 | 8.3 | 20.9 | 74.3 |
| RF430.0014.18 | 18X0.14 | 8.9 | 23.5 | 82.4 |
| RF430.0014.20 | 20X0.14 | 8.9 | 26.1 | 87.4 |
| RF430.0014.21 | 21X0.14 | 8.9 | 27.4 | 90.1 |
| RF430.0014.24 | 24X0.14 | 9.7 | 31.3 | 101.3 |
| RF430.0014.25 | 25X0.14 | 9.7 | 32.6 | 103.6 |
| RF430.0014.27 | 27X0.14 | 10.6 | 35.2 | 112.9 |
| RF430.0014.30 | 30X0.14 | 10.6 | 39.1 | 119.2 |
| RF430.0014.32 | 32X0.14 | 11.7 | 41.7 | 133.3 |
| RF430.0014.36 | 36X0.14 | 11.7 | 46.9 | 141.9 |
| Material Code | Size mm2 | OD mm | Copper Weight kg/km | Cable Weight kg/km |
| RF430.0020.02 | 2X0.2 | 4.7 | 3.7 | 27.2 |
| RF430.0020.03 | 3X0.2 | 4.8 | 5.6 | 30.5 |
| RF430.0020.04 | 4X0.2 | 5.1 | 7.4 | 35.0 |
| RF430.0020.05 | 5X0.2 | 5.4 | 9.3 | 39.8 |
| RF430.0020.06 | 6X0.2 | 5.8 | 11.2 | 43.5 |
| RF430.0020.07 | 7X0.2 | 6.1 | 13.0 | 48.7 |
| RF430.0020.08 | 8X0.2 | 6.4 | 14.9 | 54.2 |
| RF430.0020.09 | 9X0.2 | 6.8 | 16.8 | 59.8 |
| RF430.0020.10 | 10X0.2 | 7.1 | 18.6 | 65.7 |
| RF430.0020.12 | 12X0.2 | 8.1 | 22.3 | 80.0 |
| RF430.0020.14 | 14X0.2 | 8.8 | 26.1 | 82.3 |
| RF430.0020.16 | 16X0.2 | 8.8 | 29.8 | 88.1 |
| RF430.0020.18 | 18X0.2 | 9.5 | 33.5 | 98.0 |
| RF430.0020.20 | 20X0.2 | 9.6 | 37.2 | 104.4 |
| RF430.0020.21 | 21X0.2 | 9.6 | 39.1 | 107.1 |
| RF430.0020.24 | 24X0.2 | 10.4 | 44.7 | 121.6 |
| RF430.0020.25 | 25X0.2 | 10.4 | 46.5 | 124.6 |
| RF430.0020.27 | 27X0.2 | 11.5 | 50.3 | 139.0 |
| RF430.0020.30 | 30X0.2 | 11.5 | 55.9 | 147.3 |
| RF430.0020.32 | 32X0.2 | 12.7 | 59.6 | 164.4 |
| RF430.0020.36 | 36X0.2 | 12.7 | 67.0 | 175.7 |
