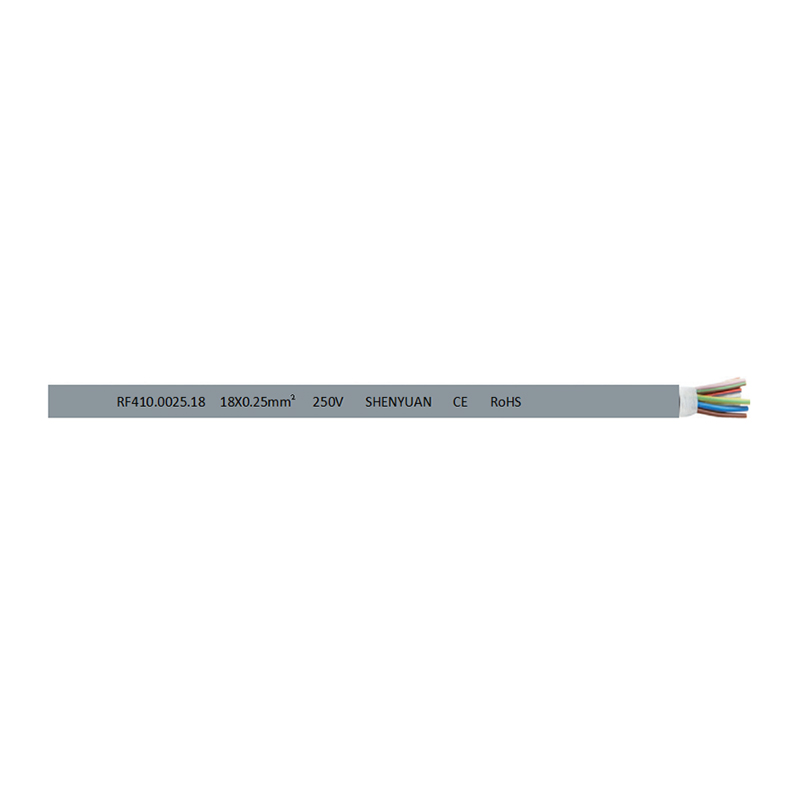

Low Speed Robot Data Cables RF410

Description:

Compliant with CRIA & 2PfG 2577

Rated voltage: 250 V

Peak voltage: 350 V

Test voltage:

1200 V/min for 0.14~0.34 mm² 2000 V/min for 0.5 mm² and above

Insulation resistance: ≥20 MΩ·km @20℃

Operating temperature:

Fixed installation: -15 ℃ ~ +70 ℃ Dynamic moving: -10 ℃ ~ +70 ℃

Minimum bending radius:

Fixed installation: 4 × cable outer diameter

Moving installation: 7.5 × cable outer diameter

Drag chain operation: travel 5 m, speed 3 m/s

Overhead operation: travel 20 m, speed 3 m/s

Drag chain cycle life: 10 million cycles

Drag chain cycle life: 15 million cycles (12 cores and above)

Mutual capacitance: ≈80 nF/km

Inductance: ≈0.65 mH/km

Torsion angle: ±180°, bending length ≥500 mm

Torsion cycle life: 5 million cycles

Send email to us

Product Detail

Product Tags

Cable Construction

Stranded fine bare copper conductors to IEC 60228 Class 6

TPE elastomer insulation

Core colour coding compliant with DIN 47100

Layered stranding for 2 11 cores; grouped stranding for 12 cores and above

Separator layer

PVC sheath (TM4 type),

Grey (RAL7001)

Properties

Flame retardant to IEC 60332-1-2

Oil resistant complying with EN50290, 70℃, 4 h

UV resistant; black outer sheath

Optional Enhancements

-40 ℃cold resistant compound available for low temperature environments

105 ℃high temperature resistant version available for high temperature conditions

High oil resistant PVC option for oily working environments

Corresponding shielded model: RF411

Product Features

Stable data transmission performance

Short stranding pitch for conductors

High elasticity, wear resistant insulation

Core wire de twisting design to reduce internal stress

Suitable for twist optimized cable stranding

High toughness, high elasticity, wear resistant outer sheath

Applications

These cables are designed for non-load bearing torsional and moving applications. Suitable for indoor dry or damp environments; not suitable for open air outdoor exposure. As robot cables, they are applicable to robot arms and robot bodies with ±180° torsional motion. They are also used for CNC machine tools, electronic equipment, computers, measuring instruments, automated warehouses and other equipment requiring repeated movement, long distance travel and stable data transmission.

Material Code	Size mm2	OD mm	Copper Weight kg/km	Cable Weight kg/km
RF410.0014.02	2X0.14	4.5	2.6	24.4
RF410.0014.03	3X0.14	4.6	3.9	27.1
RF410.0014.04	4X0.14	4.9	5.2	30.7
RF410.0014.05	5X0.14	5.2	6.5	34.7
RF410.0014.06	6X0.14	5.5	7.8	37.7
RF410.0014.07	7X0.14	5.8	9.1	42.0
RF410.0014.08	8X0.14	6.1	10.4	46.6
RF410.0014.09	9X0.14	6.4	11.7	51.2
RF410.0014.10	10X0.14	6.7	13.0	56.0
RF410.0014.12	12X0.14	7.6	15.6	68.0
RF410.0014.14	14X0.14	8.3	18.2	69.9
RF410.0014.16	16X0.14	8.3	20.9	74.3
RF410.0014.18	18X0.14	8.9	23.5	82.4
RF410.0014.20	20X0.14	8.9	26.1	87.4
RF410.0014.21	21X0.14	8.9	27.4	90.1
RF410.0014.24	24X0.14	9.7	31.3	101.3
RF410.0014.25	25X0.14	9.7	32.6	103.6
RF410.0014.27	27X0.14	10.6	35.2	112.9
RF410.0014.30	30X0.14	10.6	39.1	119.2
RF410.0014.32	32X0.14	11.7	41.7	133.3
RF410.0014.36	36X0.14	11.7	46.9	141.9
Material Code	Size mm2	OD mm	Copper Weight kg/km	Cable Weight kg/km
RF410.0025.02	2X0.25	4.8	4.7	29.3
RF410.0025.03	3X0.25	5.0	7.0	33.1
RF410.0025.04	4X0.25	5.3	9.3	38.3
RF410.0025.05	5X0.25	5.6	11.6	43.8
RF410.0025.06	6X0.25	6.0	14.0	48.0
RF410.0025.07	7X0.25	6.3	16.3	54.0
RF410.0025.08	8X0.25	6.7	18.6	60.2
RF410.0025.09	9X0.25	7.0	20.9	66.7
RF410.0025.10	10X0.25	7.4	23.3	73.3
RF410.0025.12	12X0.25	8.5	27.9	89.5
RF410.0025.14	14X0.25	9.2	32.6	92.2
RF410.0025.16	16X0.25	9.2	37.2	99.1
RF410.0025.18	18X0.25	10.0	41.9	110.3
RF410.0025.20	20X0.25	10.0	46.5	118.0
RF410.0025.21	21X0.25	10.0	48.9	121.2
RF410.0025.24	24X0.25	10.9	55.9	137.8
RF410.0025.25	25X0.25	10.9	58.2	141.4
RF410.0025.27	27X0.25	12.2	62.8	159.9
RF410.0025.30	30X0.25	12.2	69.8	169.8
RF410.0025.32	32X0.25	13.4	74.5	189.3
RF410.0025.36	36X0.25	13.4	83.8	202.8
RF410.0030.02	2X0.3	4.9	5.6	31.3
RF410.0030.03	3X0.3	5.1	8.5	35.9
RF410.0030.04	4X0.3	5.4	11.2	41.5
RF410.0030.05	5X0.3	5.8	14.0	45.9
RF410.0030.06	6X0.3	6.1	16.8	52.4
RF410.0030.07	7X0.3	6.5	19.5	59.1
RF410.0030.08	8X0.3	6.9	22.3	66.1
RF410.0030.09	9X0.3	7.3	25.1	73.3
RF410.0030.10	10X0.3	7.6	27.9	80.7
RF410.0030.12	12X0.3	8.8	33.5	98.6
RF410.0030.14	14X0.3	9.6	39.1	101.7
RF410.0030.16	16X0.3	9.6	44.7	109.7
RF410.0030.18	18X0.3	10.4	50.3	122.3
RF410.0030.20	20X0.3	10.4	55.9	131.1
RF410.0030.21	21X0.3	10.4	58.6	134.9
RF410.0030.24	24X0.3	11.3	67.0	153.6
RF410.0030.25	25X0.3	11.4	69.8	157.7
RF410.0030.27	27X0.3	12.8	75.4	180.2
RF410.0030.30	30X0.3	12.8	83.8	191.8
RF410.0030.32	32X0.3	14.1	89.4	213.5
RF410.0030.36	36X0.3	14.1	100.5	229.3
RF410.0034.02	2X0.34	5.0	6.3	32.8
RF410.0034.03	3X0.34	5.2	9.5	37.7
RF410.0034.04	4X0.34	5.5	12.7	43.9
RF410.0034.05	5X0.34	5.9	15.8	50.7
RF410.0034.06	6X0.34	6.3	19.0	55.8
RF410.0034.07	7X0.34	6.7	22.2	63.1
RF410.0034.08	8X0.34	7.1	25.3	70.6
RF410.0034.09	9X0.34	7.5	28.5	78.4
RF410.0034.10	10X0.34	7.8	31.6	86.5
RF410.0034.12	12X0.34	9.1	38.0	105.8
RF410.0034.14	14X0.34	9.8	44.3	109.2
RF410.0034.16	16X0.34	9.9	50.6	118.1
RF410.0034.18	18X0.34	10.7	57.0	131.7
RF410.0034.20	20X0.34	10.7	63.3	141.4
RF410.0034.21	21X0.34	10.7	66.5	145.6
RF410.0034.24	24X0.34	11.6	76.0	165.9
RF410.0034.25	25X0.34	11.7	79.1	170.5
RF410.0034.27	27X0.34	13.2	85.5	196.2
RF410.0034.30	30X0.34	13.2	94.9	209.0
RF410.0034.32	32X0.34	14.6	101.3	232.6
RF410.0034.36	36X0.34	14.6	113.9	250.0
RF410.0050.02	2X0.5	5.7	9.9	43.2
RF410.0050.03	3X0.5	5.9	14.8	50.6
RF410.0050.04	4X0.5	6.4	19.7	60.0
RF410.0050.05	5X0.5	6.8	24.7	70.1
RF410.0050.06	6X0.5	7.3	29.6	77.6
RF410.0050.07	7X0.5	7.8	34.5	88.5
RF410.0050.08	8X0.5	8.3	39.5	99.8
RF410.0050.09	9X0.5	8.8	44.4	111.5
RF410.0050.10	10X0.5	9.3	49.3	123.6
RF410.0050.12	12X0.5	10.8	59.2	152.2
