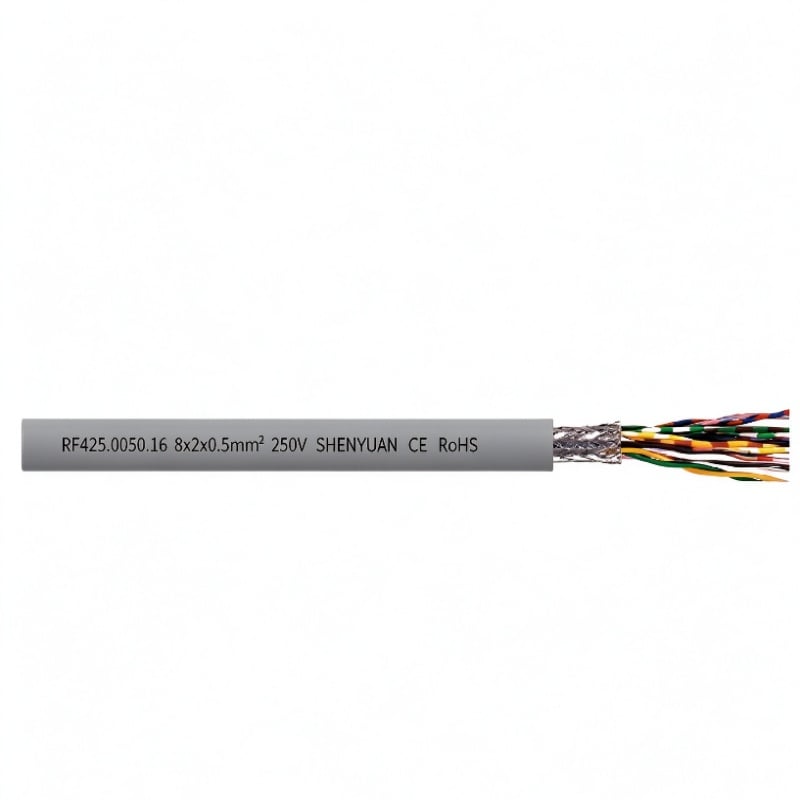

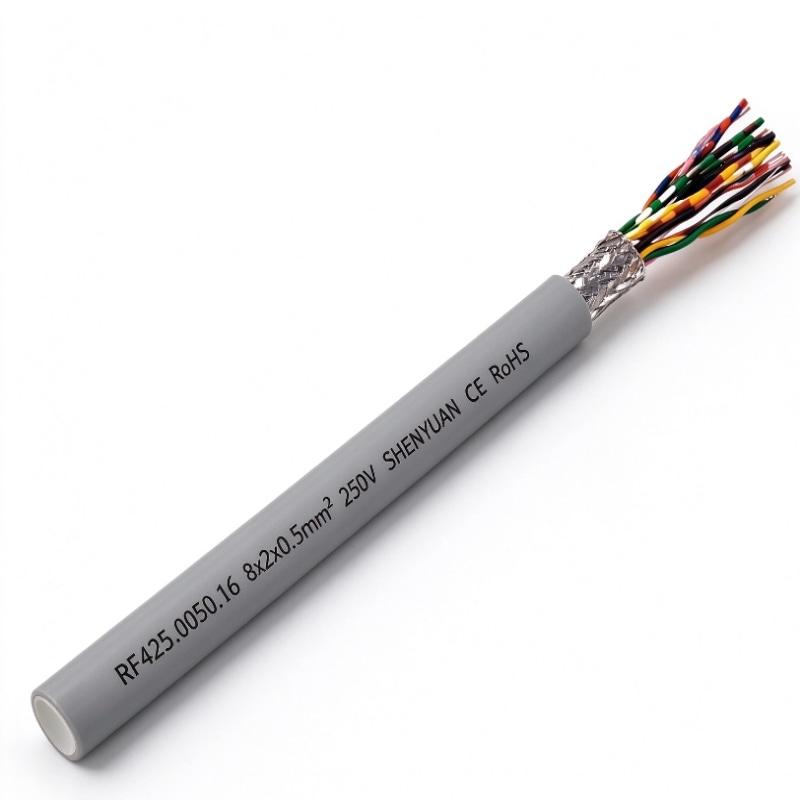

Low Speed Robot Data Cables RF425

Description:

Compliant with CRIA & 2PfG 2577

Nominal voltage: 250 V

Peak voltage: 350 V ‑ Test voltage: 1200 V/min (0.14~0.34 mm²)

Test voltage: 2000 V/min (0.5 mm² and above) ‑ Insulation resistance ≥20 MΩ·km @20 ℃

Temperature range (fixed installation): ‑40 ℃ ~ 80 ℃

Temperature range (moving installation): ‑20 ℃ ~ 80 ℃

Min. bending radius (fixed): 6 × cable outer diameter

Min. bending radius (moving): 10 × cable outer diameter

Drag‑chain travel: 10 m, speed: 3 m/s

Overhead travel: 30 m, speed: 3 m/s

Drag‑chain cycle life: 15 million cycles

Drag‑chain cycle life: 20 million cycles (12 cores and above)

Mutual capacitance ≈80 nF/km

Inductance ≈0.65 mH/km

Torsion angle ±180°, bending length ≥500 mm

Torsion cycle life: 6 million cycles

MOQ: 500m

Is sample available: Yes
Quote within 24h.

Send email to us

Product Detail

Product Tags

Cable Construction

Stranded fine bare copper wires

Fine flexible copper conductors conforming to IEC 60228

TPE elastomer insulation

Core colour‑coding per DIN47100

Pair‑twisted for each signal pair

Optimized layered stranding for twisted pairs

Separator layer

Tinned copper braided shield

Separator layer

Polyether‑based PUR sheath, grey (RAL7001)

Characteristics

Flame‑retardant: IEC 60332‑1‑2

Oil resistance: Compliant with EN50290, 90 ℃, 168 hours

EMC performance compliant with EU EMC directive

Abrasion‑resistant, scratch‑resistant, chemical‑resistant, hydrolysis‑resistant

Cold‑resistant down to ‑40 ℃, microbe‑resistant, UV‑resistant

Optional Upgrades

Alloy conductors available

Alloy braid shielding wires available

Product Features

Designed for harsh‑environment operation

Stable data transmission

Short lay‑length for both conductors and core assemblies

Fatigue‑resistant, high‑wear‑resistance insulation

Untwisted core wires to reduce mechanical stress

Non‑sticky core wires, easy‑to‑strip insulation

High‑toughness, high‑elasticity and wear‑resistant outer sheath

Anti‑electromagnetic interference performance

Applications

Low Speed Robot Data Cables RF425 are suitable for indoor dry or damp locations for applications without gravity‑loaded torsion. Not for open‑air outdoor use. Robot cable for robot arms / robot bodies with ±180° torsional motion. Also suitable for CNC machine tools, electronic equipment, computers, measuring instruments, automated warehouses and other equipment subject to repeated motion requiring reliable long‑distance data transmission, where braided shielding is required for electromagnetic interference suppression.

Material Code	Size mm2	OD mm	Copper Weight kg/km	Cable Weight kg/km
RF425.0014.02	1X2X0.14	5.0	10.2	31.9
RF425.0014.04	2X2X0.14	6.3	17.4	50.3
RF425.0014.06	3X2X0.14	6.6	20.9	55.8
RF425.0014.08	4X2X0.14	7.0	24.9	63.8
RF425.0014.10	5X2X0.14	7.5	29.2	69.4
RF425.0014.12	6X2X0.14	8.0	33.4	78.9
RF425.0014.14	7X2X0.14	8.5	37.7	88.8
RF425.0014.16	8X2X0.14	9.1	42.1	99.2
RF425.0014.18	9X2X0.14	9.6	46.4	110.0
RF425.0014.20	10X2X0.14	10.2	50.8	122.4
RF425.0014.22	11X2X0.14	10.8	55.1	136.2
RF425.0014.24	12X2X0.14	11.4	59.5	150.6
RF425.0014.26	13X2X0.14	10.5	59.6	128.4
RF425.0014.28	14X2X0.14	10.5	62.3	132.5
RF425.0014.30	15X2X0.14	11.1	66.5	143.4
RF425.0014.32	16X2X0.14	11.1	69.1	147.5
RF425.0014.34	17X2X0.14	11.7	73.4	159.3
RF425.0014.36	18X2X0.14	11.7	76.0	163.4
RF425.0014.38	19X2X0.14	11.7	78.7	165.5
RF425.0014.40	20X2X0.14	12.3	82.9	179.9
RF425.0014.42	21X2X0.14	13.1	87.8	195.2
RF425.0014.44	22X2X0.14	12.9	89.9	197.4
RF425.0014.46	23X2X0.14	13.3	93.6	208.5
RF425.0014.48	24X2X0.14	13.5	96.9	215.4
RF425.0014.50	25X2X0.14	13.5	99.5	219.5
RF425.0020.02	1X2X0.2	5.1	12.0	35.1
RF425.0020.04	2X2X0.2	6.7	20.7	56.5
RF425.0020.06	3X2X0.2	7.0	25.4	63.3
RF425.0020.08	4X2X0.2	7.4	30.7	73.2
RF425.0020.10	5X2X0.2	8.0	36.2	79.9
Material Code	Size mm2	OD mm	Copper Weight kg/km	Cable Weight kg/km
RF425.0020.12	6X2X0.2	8.5	41.8	91.3
RF425.0020.14	7X2X0.2	9.1	47.4	103.2
RF425.0020.16	8X2X0.2	9.6	53.0	115.8
RF425.0020.18	9X2X0.2	10.3	58.6	130.4
RF425.0020.20	10X2X0.2	11.0	64.3	146.3
RF425.0020.22	11X2X0.2	11.6	69.9	162.9
RF425.0020.24	12X2X0.2	12.3	75.6	180.5
RF425.0020.26	13X2X0.2	11.4	76.6	154.7
RF425.0020.28	14X2X0.2	11.4	80.4	160.2
RF425.0020.30	15X2X0.2	12.0	85.9	173.4
RF425.0020.32	16X2X0.2	12.0	89.7	178.9
RF425.0020.34	17X2X0.2	12.6	95.2	193.1
RF425.0020.36	18X2X0.2	12.6	99.0	198.6
RF425.0020.38	19X2X0.2	12.6	102.7	201.5
RF425.0020.40	20X2X0.2	13.3	108.3	219.0
RF425.0020.42	21X2X0.2	14.1	114.5	237.4
RF425.0020.44	22X2X0.2	14.0	117.7	240.6
RF425.0020.46	23X2X0.2	14.4	122.7	254.2
RF425.0020.48	24X2X0.2	14.6	127.1	262.8
RF425.0020.50	25X2X0.2	14.6	130.9	268.3
RF425.0025.02	1X2X0.25	5.3	13.4	37.5
RF425.0025.04	2X2X0.25	6.9	23.4	61.3
RF425.0025.06	3X2X0.25	7.2	29.0	69.2
RF425.0025.08	4X2X0.25	7.7	35.4	80.4
RF425.0025.10	5X2X0.25	8.3	42.0	88.1
RF425.0025.12	6X2X0.25	8.9	48.6	101.1
RF425.0025.14	7X2X0.25	9.5	55.2	114.6
RF425.0025.16	8X2X0.25	10.1	61.9	129.8
RF425.0025.18	9X2X0.25	10.8	68.6	147.0
RF425.0025.20	10X2X0.25	11.5	75.3	165.1
