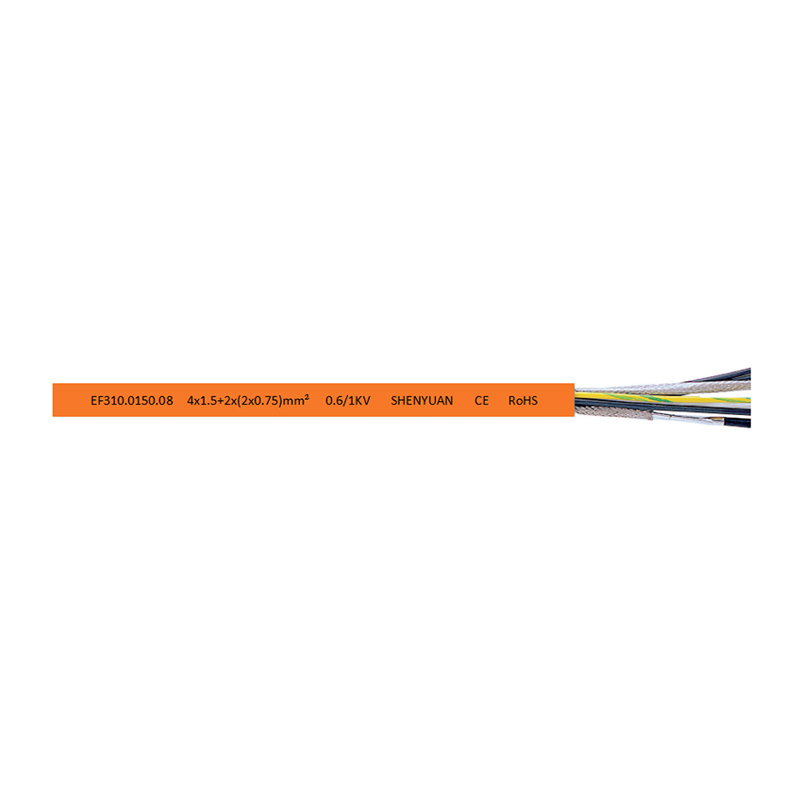

Low Speed Drag Chain Servo Cables EF310

Description:

Standards: EN50525, IEC 60502

Rated voltage:

300/500 V (0.5~1.0 mm²)

0.6/1 kV (≥1.5 mm²)

Test voltage:

2000 V / 5 min for 300/500 V grade

3500 V / 5 min for 0.6/1 kV grade

Insulation resistance: ≥20 MΩ·km @20℃

Operating temperature:

Fixed installation: -30 ℃ ~ +70 ℃ Dynamic moving: -10 ℃ ~ +70 ℃

Minimum bending radius:

Fixed installation: 4 × cable outer diameter Moving installation: 7.5 × cable outer diameter

Drag chain operation: travel 3 m, speed 1 m/s

Overhead operation: travel 6 m, speed 2 m/s

Drag chain cycle life: 5 million cycles

Send email to us

Product Detail

Product Tags

Cable Construction

Stranded fine barecopper conductors, complying with IEC 60228 Class 6

PVC insulation (TI2 type), complying with VDE 0293-308

Optimized layered stranding

PVC sheath (TM4 type),

orange (RAL2003)

Note: Each data pair of composite cores is individually braid shielded.

Properties

Flame retardant to IEC 60332-1-2

Oil resistant complying with EN50290, 70℃, 4 h

EMC performance conforming to EU EMC Directive

Optional Enhancements

-40℃coldresistant compound available for lowtemperature environments

105 ℃ high temperature resistant version available for high temperature conditions

High oil resistant PVC option for oily working environments

Light weight design with non woven tape wrapping is available

Corresponding shielded models: EF311, EF312

Product Features

Short stranding pitch for conductors and core wires

Core wire de twisting design to reduce internal stress

Anti electromagnetic interference capability

High toughness, high elasticity, wear resistant outer sheath

Applications

These cables are intended for non load bearing moving drag chain applications. Suitable for indoor dry or damp environments; not suitable for open air outdoor exposure. As servo cables, they are used for pre fabricated connection of servo motors.

Material Code	Size mm2	OD mm	Cable Weight kg/km
EF310.0050.04	4G0.5	6.7	67.6
EF310.0075.04	4G0.75	7.3	83.7
EF310.0100.04	4G1.0	7.8	99.4
EF310.0150.04	4G1.5	11.3	191.9
EF310.0250.04	4G2.5	12.8	263.6
EF310.0400.04	4G4	15.2	385.7
EF310.0600.04	4G6	16.4	484.3
EF310.1000.04	4G10	17.4	688.6
EF310.1600.04	4G16	21.7	1000.7
EF310.2500.04	4G25	27.5	1571.3
EF310.3500.04	4G35	31.2	2107.3
EF310.5000.04	4G50	36.7	2956.1
EF310.0050.06	4x0.5+(2x0.5)	9.1	84.9
EF310.0050.08	4x0.5+2x(2x0.5)	10.8	112.0
EF310.0075.06	4x0.75+(2x0.5)	9.6	99.9
EF310.0075.08	4x0.75+2x(2x0.5)	11.3	122.4
EF310.0100.06	4x1.0+ (2x0.75)	10.3	121.3
EF310.0100.08	4x1.0+2x(2x0.75)	12.2	156.1
EF310.0150.06	4x1.5+(2x0.75)	26.1	201.2
EF310.0150.06.1	4x1.5+(2x1.0)	19.6	208.0
EF310.0150.06.2	4x1.5+(2x1.5)	13.4	231.2
EF310.0150.08	4x1.5+2x(2x0.75)	26.1	233.6
EF310.0150.08.1	4x1.5+2x(2x1.0)	19.6	247.1
EF310.0150.08.2	4x1.5+2x(2x1.5)	13.4	287.8
EF310.0250.06	4x2.5+(2x0.75)	14.7	259.0
EF310.0250.06.1	4x2.5+(2x1.0)	15.0	266.6
EF310.0250.06.2	4x2.5+(2x1.5)	15.8	288.2
