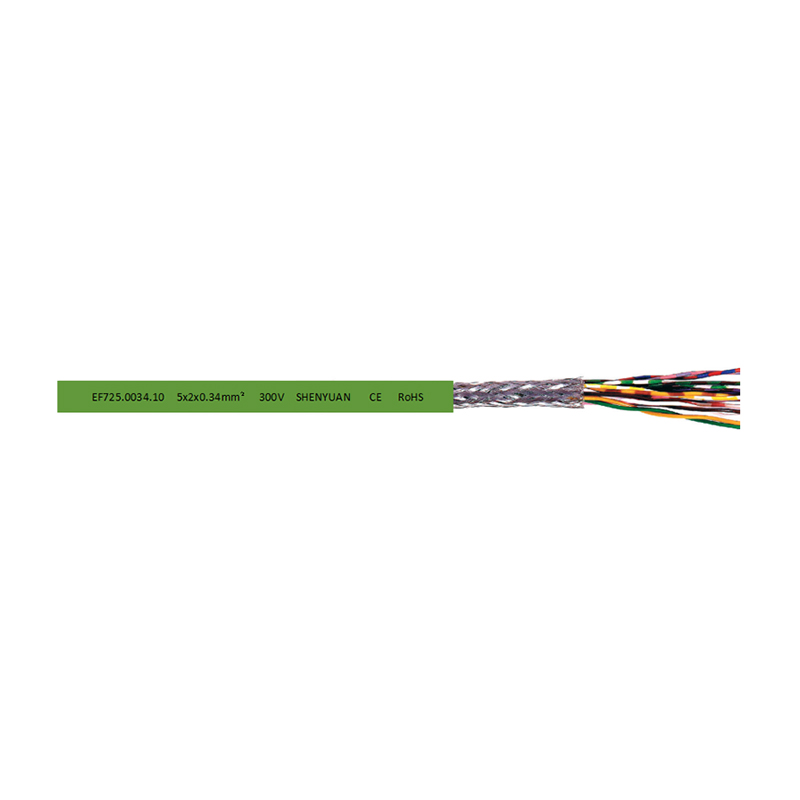

Low Speed Drag Chain Encoder Cables EF725

Description:

Standard: EN50290

Rated voltage: 300 V

Peak voltage: 350 V

Test voltage:

1200 V/min for 0.14~0.34 mm²

2000 V/min for 0.5 mm² and above

Insulation resistance: ≥10 MΩ·km @20℃

Operating temperature:

Fixed installation: -30 ℃ ~ +70 ℃ Dynamic moving: -10 ℃ ~ +70 ℃

Minimum bending radius:

Fixed installation: 6 × cable outer diameter

Moving installation: 10 × cable outer diameter

Drag chain operation: travel 3 m, speed 1 m/s

Overhead operation: travel 10 m, speed 2 m/s

Drag chain cycle life: 6 million cycles

Mutual capacitance:

C-C: max. 120 nF/km

C-S: ≈160 nF/km

Inductance: ≈0.65 mH/km

Send email to us

Product Detail

Product Tags

Cable Construction

Stranded fine bare copper conductors, complying with IEC 60228 Class 6

PVC insulation (TI2 type)

Core colour coding compliant with DIN 47100

Individual twisted pair for each signal pair

Optimized layered stranding of twisted pairs

Separator layer

Tinned copper braided shield Separator layer

Polyether based PUR sheath, Green (RAL6018)

Properties

Flame retardant to IEC 60332-1-2

Oil resistant complying with EN50290, 90℃, 168 h

EMC performance conforming to EU EMC Directive

Wear resistant,scratch resistant, chemical resistant, hydrolysis resistant,

-40 ℃ cold resistant,microbe resistant, UV resistant

Optional Enhancements

-40 ℃ cold resistant insulation version available for low temperature applications

Product Features

Suitable for harsh operating environments

Stable data transmission

Braiding coverage over 85%

Short stranding pitch for both conductors and core wires

Core wire de twisting design to reduce internal stress

Non adhesive cores for easy stripping

High toughness, high elasticity, wear resistant outer sheath

Applications

These cables are designed for non load bearing moving drag chain applications. They are suitable for indoor dry or damp conditions as well as harsh outdoor environments. As encoder cables, they apply to encoders, sensors and other repeatedlymoved equipment that requires stable movement and reliable data transmission in demanding industrial conditions. Braided shielding provides protection against electromagnetic interference.

Material Code	Size mm2	OD mm	Copper Weight kg/km	Cable Weight kg/km
EF725.0014.02	1X2X0.14	4.5	10.9	28.7
EF725.0014.04	2X2X0.14	6.2	18.2	50.1
EF725.0014.06	3X2X0.14	6.5	21.7	56.5
EF725.0014.08	4X2X0.14	7.0	25.9	66.4
EF725.0014.10	5X2X0.14	7.6	30.3	72.9
EF725.0014.12	6X2X0.14	8.2	34.6	85.0
EF725.0014.14	7X2X0.14	8.9	39.1	98.0
EF725.0014.16	8X2X0.14	9.5	43.6	111.9
EF725.0014.18	9X2X0.14	10.2	48.0	126.6
EF725.0014.20	10X2X0.14	10.8	52.5	142.2
EF725.0014.22	11X2X0.14	11.5	57.0	158.6
EF725.0014.24	12X2X0.14	12.1	61.5	175.9
EF725.0014.26	13X2X0.14	11.2	61.5	146.6
EF725.0014.28	14X2X0.14	11.2	64.1	151.5
EF725.0014.30	15X2X0.14	11.8	68.5	163.9
EF725.0014.32	16X2X0.14	11.8	71.1	168.8
EF725.0014.34	17X2X0.14	12.4	75.5	182.3
EF725.0014.36	18X2X0.14	12.4	78.2	187.3
EF725.0014.38	19X2X0.14	12.4	80.8	189.2
EF725.0014.40	20X2X0.14	13.0	85.2	206.5
EF725.0014.42	21X2X0.14	13.0	87.9	214.1
EF725.0014.44	22X2X0.14	13.9	92.9	229.0
EF725.0014.46	23X2X0.14	14.5	97.3	244.9
EF725.0014.48	24X2X0.14	14.5	99.9	249.8
EF725.0014.50	25X2X0.14	14.5	102.6	254.8
EF725.0020.02	1X2X0.2	4.7	12.7	32.3
EF725.0020.04	2X2X0.2	6.5	21.6	57.3
EF725.0020.06	3X2X0.2	6.9	26.4	65.2
EF725.0020.08	4X2X0.2	7.5	31.9	77.2
EF725.0020.10	5X2X0.2	8.1	37.6	85.1
Material Code	Size mm2	OD mm	Copper Weight kg/km	Cable Weight kg/km
EF725.0025.22	11X2X0.25	12.9	83.6	208.7
EF725.0025.24	12X2X0.25	13.7	90.5	231.8
EF725.0025.26	13X2X0.25	12.6	92.1	195.0
EF725.0025.28	14X2X0.25	12.6	96.8	202.5
EF725.0025.30	15X2X0.25	13.3	103.5	219.2
EF725.0025.32	16X2X0.25	13.3	108.2	226.6
EF725.0025.34	17X2X0.25	14.0	114.9	244.8
EF725.0025.36	18X2X0.25	14.0	119.6	252.2
EF725.0025.38	19X2X0.25	14.0	124.3	255.8
EF725.0025.40	20X2X0.25	14.7	131.0	278.8
EF725.0025.42	21X2X0.25	14.7	135.7	289.8
EF725.0025.44	22X2X0.25	15.7	143.1	309.6
EF725.0025.46	23X2X0.25	16.4	149.9	331.0
EF725.0025.48	24X2X0.25	16.4	154.6	338.4
EF725.0025.50	25X2X0.25	16.4	159.3	345.9
EF725.0030.02	1X2X0.3	5.1	15.5	37.5
EF725.0030.04	2X2X0.3	7.0	26.9	67.8
EF725.0030.06	3X2X0.3	7.4	33.7	78.1
EF725.0030.08	4X2X0.3	8.1	41.3	93.3
EF725.0030.10	5X2X0.3	8.8	49.0	103.4
EF725.0030.12	6X2X0.3	9.6	56.9	121.6
EF725.0030.14	7X2X0.3	10.3	64.8	141.2
EF725.0030.16	8X2X0.3	11.1	72.7	162.1
EF725.0030.18	9X2X0.3	11.9	80.7	184.1
EF725.0030.20	10X2X0.3	12.7	88.6	207.4
EF725.0030.22	11X2X0.3	13.5	96.6	232.0
EF725.0030.24	12X2X0.3	14.3	104.6	257.8
EF725.0030.26	13X2X0.3	13.2	107.1	217.7
EF725.0030.28	14X2X0.3	13.2	112.8	226.4
EF725.0030.30	15X2X0.3	13.9	120.6	245.1
EF725.0030.32	16X2X0.3	13.9	126.3	253.8
EF725.0030.34	17X2X0.3	14.6	134.2	274.1
EF725.0030.36	18X2X0.3	14.6	139.9	282.8
EF725.0030.38	19X2X0.3	14.6	145.7	287.1
EF725.0030.40	20X2X0.3	15.4	153.5	312.9
EF725.0030.42	21X2X0.3	15.4	159.3	325.5
EF725.0030.44	22X2X0.3	16.4	167.8	347.6
EF725.0030.46	23X2X0.3	17.2	175.7	371.4
EF725.0030.48	24X2X0.3	17.2	181.4	380.1
EF725.0030.50	25X2X0.3	17.2	187.2	388.8
EF725.0034.02	1X2X0.34	5.1	16.1	38.6
EF725.0034.04	2X2X0.34	7.2	28.0	70.1
EF725.0034.06	3X2X0.34	7.5	35.3	80.9
EF725.0034.08	4X2X0.34	8.2	43.4	96.8
EF725.0034.10	5X2X0.34	9.0	51.7	107.4
EF725.0034.12	6X2X0.34	9.7	60.0	126.5
EF725.0034.14	7X2X0.34	10.5	68.4	146.9
EF725.0034.16	8X2X0.34	11.3	76.8	168.7
EF725.0034.18	9X2X0.34	12.1	85.2	191.8
EF725.0034.20	10X2X0.34	12.9	93.7	216.1
EF725.0034.22	11X2X0.34	13.7	102.1	241.7
EF725.0034.24	12X2X0.34	14.5	110.6	268.7
EF725.0034.26	13X2X0.34	13.4	113.5	227.2
EF725.0034.28	14X2X0.34	13.4	119.6	236.4
EF725.0034.30	15X2X0.34	14.1	127.9	256.0
EF725.0034.32	16X2X0.34	14.1	134.1	265.2
EF725.0034.34	17X2X0.34	14.9	142.4	286.4
EF725.0034.36	18X2X0.34	14.9	148.6	295.6
EF725.0034.38	19X2X0.34	14.9	154.8	300.2
EF725.0034.40	20X2X0.34	15.7	163.1	327.2
EF725.0050.02	1X2X0.5	6.0	21.8	52.9
EF725.0050.04	2X2X0.5	8.6	38.5	99.5
EF725.0050.06	3X2X0.5	9.1	49.4	115.8
EF725.0050.08	4X2X0.5	10.0	61.2	139.8
EF725.0050.10	5X2X0.5	10.9	73.3	155.0
EF725.0050.12	6X2X0.5	11.9	85.5	184.0
EF725.0050.14	7X2X0.5	12.9	97.7	215.2
EF725.0050.16	8X2X0.5	13.9	110.0	248.6
EF725.0050.18	9X2X0.5	14.9	122.3	284.0
EF725.0050.20	10X2X0.5	16.0	134.6	321.5
