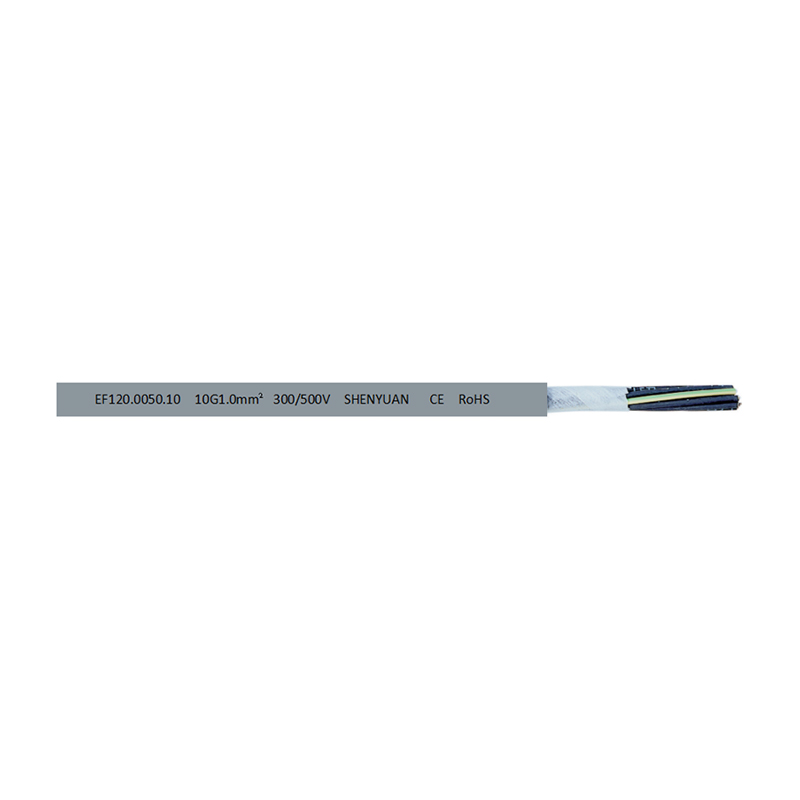

Low Speed Drag Chain Control Cables EF120
Cable Construction
Stranded fine bare copper conductors, IEC 60228 Class 6
PVC insulation (TI2 type)
complying with VDE 0293-308
Optimized layered stranding
Separator layer
Polyether based PUR sheath
Grey (RAL7001)
Properties
Flame retardant to IEC 60332-1-2
Oil resistant complying with EN50290, 90℃, 168h
Wear resistant, scratch resistant, chemical resistant, hydrolysis resistant、
-40℃ cold resistant, microbe resistant, UV resistant
Optional Enhancements
-40℃ cold resistant insulation version available for low temperature environments
For smaller outer diameter, select EF620
Corresponding shielded model: EF121
Product Features
Suitable for harsh operating conditions
Short stranding pitch for both conductors and core wires
Core wire de twisting design to reduce internal stress
High toughness, high elasticity, wear resistant outer sheath
Applications
These cables are designed for non load bearing moving drag chain applications. They can be used indoors in dry or damp conditions as well as for outdoor harsh environments. As control cables, they apply to industrial automation equipment subject to repeated motion requiring stable performance, such as machine tools, material handling systems, assembly lines and production lines, and other demanding industrial fields.
| Material Code | Size mm2 | OD mm | Copper Weight kg/km | Cable Weight kg/km |
| EF120.0050.02 | 2X0.5 | 6.0 | 9.3 | 43.3 |
| EF120.0050.03 | 3G0.5 | 6.4 | 14.0 | 52.8 |
| EF120.0050.04 | 4G0.5 | 7.1 | 18.6 | 65.7 |
| EF120.0050.05 | 5G0.5 | 7.8 | 23.3 | 80.2 |
| EF120.0050.06 | 6G0.5 | 8.5 | 27.9 | 90.4 |
| EF120.0050.07 | 7G0.5 | 9.3 | 32.6 | 107.0 |
| EF120.0050.08 | 8G0.5 | 10.0 | 37.2 | 124.9 |
| EF120.0050.09 | 9G0.5 | 10.8 | 41.9 | 143.9 |
| EF120.0050.10 | 10G0.5 | 11.6 | 46.5 | 164.0 |
| EF120.0050.12 | 12G0.5 | 13.1 | 55.9 | 207.8 |
| EF120.0050.14 | 14G0.5 | 12.0 | 65.2 | 183.5 |
| EF120.0050.16 | 16G0.5 | 12.7 | 74.5 | 208.6 |
| EF120.0050.18 | 18G0.5 | 13.4 | 83.8 | 235.0 |
| EF120.0050.20 | 20G0.5 | 14.2 | 93.1 | 262.5 |
| EF120.0050.21 | 21G0.5 | 15.2 | 97.7 | 284.5 |
| EF120.0050.24 | 24G0.5 | 15.7 | 111.7 | 321.4 |
| EF120.0050.25 | 25G0.5 | 15.7 | 116.4 | 330.5 |
| EF120.0050.27 | 27G0.5 | 16.5 | 125.7 | 340.9 |
| EF120.0050.30 | 30G0.5 | 16.9 | 139.6 | 373.2 |
| EF120.0050.32 | 32G0.5 | 17.6 | 148.9 | 400.1 |
| EF120.0050.36 | 36G0.5 | 18.4 | 167.6 | 446.5 |
| Material Code | Size mm2 | OD mm | Copper Weight kg/km | Cable Weight kg/km |
| EF120.0075.02 | 2X0.75 | 6.5 | 13.7 | 52.4 |
| EF120.0075.03 | 3G0.75 | 6.9 | 20.6 | 64.7 |
| EF120.0075.04 | 4G0.75 | 7.6 | 27.5 | 81.1 |
| EF120.0075.05 | 5G0.75 | 8.4 | 34.4 | 99.2 |
| EF120.0075.06 | 6G0.75 | 9.2 | 41.2 | 112.3 |
| EF120.0075.07 | 7G0.75 | 10.0 | 48.1 | 133.0 |
| EF120.0075.08 | 8G0.75 | 10.9 | 55.0 | 155.2 |
| EF120.0075.09 | 9G0.75 | 11.7 | 61.9 | 178.8 |
| EF120.0075.10 | 10G0.75 | 12.5 | 68.7 | 203.7 |
| EF120.0075.12 | 12G0.75 | 14.2 | 82.5 | 257.8 |
| EF120.0075.14 | 14G0.75 | 13.0 | 96.2 | 231.0 |
| EF120.0075.16 | 16G0.75 | 13.8 | 110.0 | 262.9 |
| EF120.0075.18 | 18G0.75 | 14.6 | 123.7 | 296.3 |
| EF120.0075.20 | 20G0.75 | 15.4 | 137.4 | 331.1 |
| EF120.0075.21 | 21G0.75 | 16.5 | 144.3 | 358.1 |
| EF120.0075.24 | 24G0.75 | 17.1 | 164.9 | 405.3 |
| EF120.0075.25 | 25G0.75 | 17.1 | 171.8 | 417.1 |
| EF120.0075.27 | 27G0.75 | 17.9 | 185.6 | 431.4 |
| EF120.0075.30 | 30G0.75 | 18.4 | 206.2 | 473.1 |
| EF120.0075.32 | 32G0.75 | 19.2 | 219.9 | 507.1 |
| EF120.0075.36 | 36G0.75 | 20.0 | 247.4 | 566.4 |
| Material Code | Size mm2 | OD mm | Copper Weight kg/km | Cable Weight kg/km |
| EF120.0100.02 | 2X1.0 | 6.9 | 18.3 | 61.3 |
| EF120.0100.03 | 3G1.0 | 7.4 | 27.5 | 76.4 |
| EF120.0100.04 | 4G1.0 | 8.1 | 36.7 | 96.1 |
| EF120.0100.05 | 5G1.0 | 8.9 | 45.8 | 117.9 |
| EF120.0100.06 | 6G1.0 | 9.8 | 55.0 | 133.7 |
| EF120.0100.07 | 7G1.0 | 10.7 | 64.1 | 158.5 |
| EF120.0100.08 | 8G1.0 | 11.6 | 73.3 | 185.0 |
| EF120.0100.09 | 9G1.0 | 12.5 | 82.5 | 213.0 |
| EF120.0100.10 | 10G1.0 | 13.4 | 91.6 | 242.6 |
| EF120.0100.12 | 12G1.0 | 15.2 | 110.0 | 306.7 |
| EF120.0100.14 | 14G1.0 | 13.9 | 128.3 | 277.9 |
| EF120.0100.16 | 16G1.0 | 14.7 | 146.6 | 316.5 |
| EF120.0100.18 | 18G1.0 | 15.6 | 164.9 | 356.9 |
| EF120.0100.20 | 20G1.0 | 16.5 | 183.3 | 398.8 |
| EF120.0100.21 | 21G1.0 | 17.6 | 192.4 | 430.8 |
| EF120.0100.24 | 24G1.0 | 18.3 | 219.9 | 488.0 |
| EF120.0100.25 | 25G1.0 | 18.3 | 229.1 | 502.6 |
| EF120.0100.27 | 27G1.0 | 19.2 | 247.4 | 520.9 |
| EF120.0100.30 | 30G1.0 | 19.7 | 274.9 | 571.8 |
| EF120.0100.32 | 32G1.0 | 20.5 | 293.2 | 612.9 |
| EF120.0100.36 | 36G1.0 | 21.4 | 329.9 | 685.1 |
| EF120.0150.02 | 2X1.5 | 8.0 | 27.5 | 85.1 |
| EF120.0150.03 | 3G1.5 | 8.6 | 41.2 | 107.1 |
| EF120.0150.04 | 4G1.5 | 9.5 | 55.0 | 135.4 |
| EF120.0150.05 | 5G1.5 | 10.5 | 68.7 | 166.5 |
| EF120.0150.06 | 6G1.5 | 11.5 | 82.5 | 189.3 |
| EF120.0150.07 | 7G1.5 | 12.6 | 96.2 | 224.8 |
| EF120.0150.08 | 8G1.5 | 13.6 | 110.0 | 262.8 |
| EF120.0150.09 | 9G1.5 | 14.7 | 123.7 | 302.9 |
| EF120.0150.10 | 10G1.5 | 15.8 | 137.4 | 345.3 |
| EF120.0150.12 | 12G1.5 | 18.0 | 164.9 | 437.1 |
| EF120.0150.14 | 14G1.5 | 16.4 | 192.4 | 397.5 |
| EF120.0150.16 | 16G1.5 | 17.4 | 219.9 | 453.3 |
| EF120.0150.18 | 18G1.5 | 18.4 | 247.4 | 511.7 |
| EF120.0150.20 | 20G1.5 | 19.5 | 274.9 | 572.3 |
| EF120.0150.21 | 21G1.5 | 20.9 | 288.6 | 617.9 |
| EF120.0150.24 | 24G1.5 | 21.6 | 329.9 | 701.0 |
| EF120.0150.25 | 25G1.5 | 21.6 | 343.6 | 722.4 |
| EF120.0150.27 | 27G1.5 | 22.7 | 371.1 | 749.2 |
| EF120.0150.30 | 30G1.5 | 23.3 | 412.3 | 823.2 |
| EF120.0150.32 | 32G1.5 | 24.3 | 439.8 | 882.6 |
| EF120.0150.36 | 36G1.5 | 25.4 | 494.8 | 987.5 |
| EF120.0250.02 | 2X2.5 | 9.9 | 46.3 | 133.4 |
| EF120.0250.03 | 3G2.5 | 10.6 | 69.4 | 169.5 |
| EF120.0250.04 | 4G2.5 | 11.8 | 92.5 | 215.5 |
| EF120.0250.05 | 5G2.5 | 12.8 | 115.7 | 260.9 |
| EF120.0250.06 | 6G2.5 | 14.3 | 138.8 | 303.1 |
| EF120.0250.07 | 7G2.5 | 15.7 | 161.9 | 360.7 |
| EF120.0250.08 | 8G2.5 | 17.0 | 185.1 | 422.2 |
| EF120.0250.09 | 9G2.5 | 18.4 | 208.2 | 487.2 |
| EF120.0250.10 | 10G2.5 | 19.8 | 231.3 | 555.9 |
| EF120.0250.12 | 12G2.5 | 22.6 | 277.6 | 704.6 |
