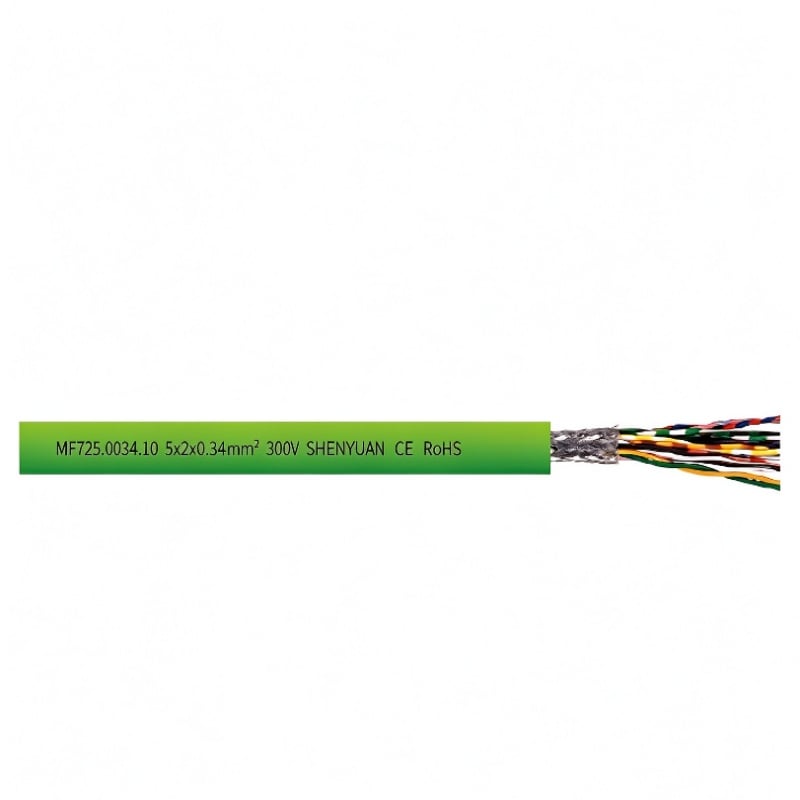

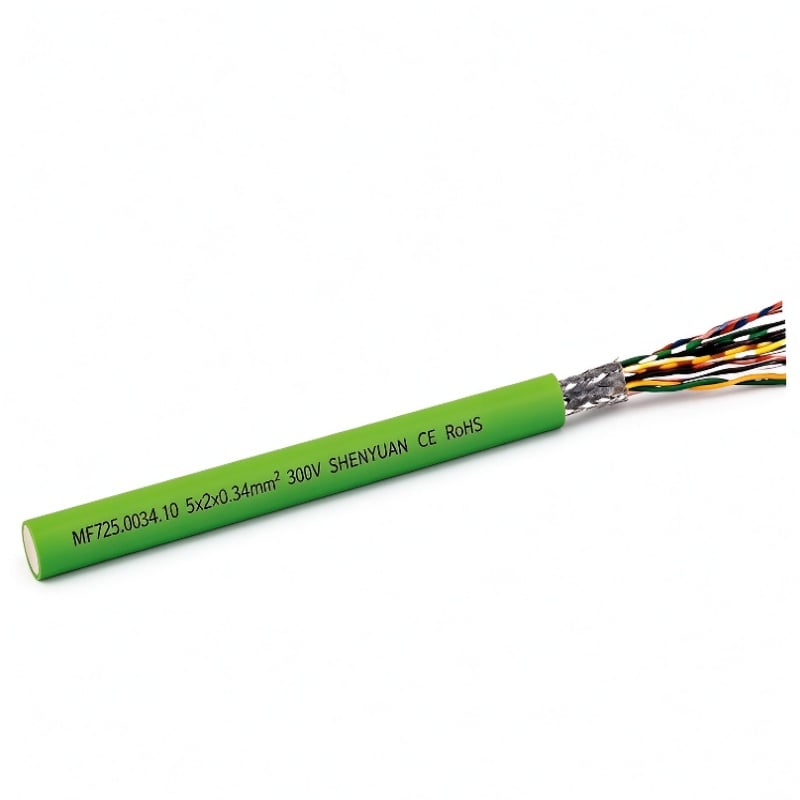

Medium Speed Drag Chain Encoder Cables MF725

Description:

Compliant with EN 50290
Nominal voltage: 250 V
Peak voltage: 350 V
Test voltage:

1200 V/min for cross‑sections 0.14 ~ 0.34 mm²

2000 V/min for cross‑sections ≥ 0.5 mm²
Insulation resistance ≥ 20 MΩ·km @ 20 °C
Temperature range:

Fixed installation: ‑40 °C ~ 80 °C

Moving operation: ‑20 °C ~ 80 °C
Minimum bending radius:

Fixed installation: 6 × cable outer diameter

Moving installation: 10 × cable outer diameter
Drag‑chain application: travel 5 m, speed 3 m/s
Free‑hanging application: travel 15 m, speed 2 m/s
Drag‑chain service life: 10 million cycles
Capacitance:

Core‑to‑core (C/C): max. 80 nF/km

Core‑to‑shield (C/S): approx. 120 nF/km
Inductance: approx. 0.65 mH/km

MOQ: 500m

Is sample available: Yes
Quote within 24h.

Send email to us

Product Detail

Product Tags

Cable Construction

Stranded fine bare copper conductors, compliant with IEC 60228 Class 6
TPE elastomer insulation
Colour‑coded cores per DIN 47100
Pair‑twisted cores
Layered stranding of twisted pairs for optimized geometry
Separator layer
Tinned‑copper braided shield
Separator layer
Polyether‑based PUR outer sheath
Black (RAL 9005), Grey (RAL 7001)

Characteristics

Flame‑retardant to IEC 60332‑1‑2
Oil‑resistant compliant with EN 50290, 90 °C, 168 hours
Electromagnetic compatibility complies with EU EMC Directive
Wear‑resistant, scratch‑resistant, chemical‑resistant, hydrolysis‑resistant
Cold‑resistant down to ‑40 °C; microbe‑resistant; UV‑resistant

Optional Upgrades

Halogen‑free auxiliary materials are available as an option

Product Features

Designed for harsh‑environment operation
Stable data transmission
Braided shielding coverage ≥ 85 %
Short lay length for conductors and core wires
Core wire untwisting to reduce mechanical stress
Non‑adhesive core wires, easy stripping
High‑toughness, high‑elasticity, wear‑resistant outer sheath
Excellent anti‑electromagnetic‑interference performance

Applications

Medium Speed Drag Chain Encoder Cables MF725 is designed for non‑load‑bearing moving drag‑chain applications. Suitable for indoor dry and damp environments, as well as cold harsh open‑air outdoor conditions in northern regions. This encoder cable applies to encoders, sensors and equipment under repeated long‑distance movement requiring stable data transmission. Braided shielding provides protection against electromagnetic interference.

Material Code	Size mm2	OD mm	Copper Weight kg/km	Cable Weightkg/km
MF725.0014.02	1X2X0.14	4.3	10.2	25.9
MF725.0014.04	2X2X0.14	5.9	17.4	45.7
MF725.0014.06	3X2X0.14	6.2	20.9	51.2
MF725.0014.08	4X2X0.14	6.7	25.0	60.0
MF725.0014.10	5X2X0.14	7.3	29.2	65.8
MF725.0014.12	6X2X0.14	7.8	33.5	76.5
MF725.0014.14	7X2X0.14	8.4	37.8	87.9
MF725.0014.16	8X2X0.14	9.0	42.2	100.2
MF725.0014.18	9X2X0.14	9.6	46.5	113.2
MF725.0014.20	10X2X0.14	10.3	50.9	126.9
MF725.0014.22	11X2X0.14	10.9	55.3	141.4
MF725.0014.24	12X2X0.14	11.5	59.7	156.6
MF725.0014.26	13X2X0.14	10.6	59.8	130.5
MF725.0014.28	14X2X0.14	10.6	62.5	134.7
MF725.0014.30	15X2X0.14	11.2	66.7	145.6
MF725.0014.32	16X2X0.14	11.2	69.3	149.8
MF725.0014.34	17X2X0.14	11.8	73.6	161.7
MF725.0014.36	18X2X0.14	11.8	76.3	165.9
MF725.0014.38	19X2X0.14	11.8	78.9	167.5
MF725.0014.40	20X2X0.14	12.3	83.2	182.6
MF725.0014.42	21X2X0.14	13.1	88.1	198.2
MF725.0014.44	22X2X0.14	12.9	90.2	200.4
MF725.0014.46	23X2X0.14	13.3	93.9	212.0
MF725.0014.48	24X2X0.14	13.6	97.2	218.8
MF725.0014.50	25X2X0.14	13.6	99.9	223.0
MF725.0020.02	1X2X0.2	4.5	12.1	29.3
MF725.0020.04	2X2X0.2	6.3	20.9	52.7
MF725.0020.06	3X2X0.2	6.6	25.6	59.7
MF725.0020.08	4X2X0.2	7.2	31.0	70.5
MF725.0020.10	5X2X0.2	7.8	36.6	77.6
Material Code	Size mm2	OD mm	Copper Weight kg/km	Cable Weightkg/km
MF725.0020.12	6X2X0.2	8.4	42.2	90.7
MF725.0020.14	7X2X0.2	9.1	47.9	104.6
MF725.0020.16	8X2X0.2	9.7	53.6	119.6
MF725.0020.18	9X2X0.2	10.4	59.3	135.4
MF725.0020.20	10X2X0.2	11.1	65.0	152.1
MF725.0020.22	11X2X0.2	11.8	70.7	169.7
MF725.0020.24	12X2X0.2	12.4	76.4	188.2
MF725.0020.26	13X2X0.2	11.5	77.5	157.7
MF725.0020.28	14X2X0.2	11.5	81.3	163.3
MF725.0020.30	15X2X0.2	12.1	86.9	176.7
MF725.0020.32	16X2X0.2	12.1	90.7	182.2
MF725.0020.34	17X2X0.2	12.7	96.4	196.8
MF725.0020.36	18X2X0.2	12.7	100.2	202.3
MF725.0020.38	19X2X0.2	12.7	104.0	204.7
MF725.0020.40	20X2X0.2	13.4	109.6	223.2
MF725.0020.42	21X2X0.2	14.2	115.9	242.0
MF725.0020.44	22X2X0.2	14.0	119.2	245.3
MF725.0020.46	23X2X0.2	14.5	124.2	259.6
MF725.0020.48	24X2X0.2	14.7	128.7	268.2
MF725.0020.50	25X2X0.2	14.7	132.5	273.8
MF725.0025.02	1X2X0.25	4.7	13.4	31.7
MF725.0025.04	2X2X0.25	6.5	23.4	57.6
MF725.0025.06	3X2X0.25	6.9	29.0	65.7
MF725.0025.08	4X2X0.25	7.5	35.4	77.9
MF725.0025.10	5X2X0.25	8.1	42.0	86.0
MF725.0025.12	6X2X0.25	8.8	48.6	100.7
MF725.0025.14	7X2X0.25	9.5	55.2	116.5
MF725.0025.16	8X2X0.25	10.2	61.9	133.4
MF725.0025.18	9X2X0.25	10.9	68.6	151.2
MF725.0025.20	10X2X0.25	11.6	75.3	170.0
