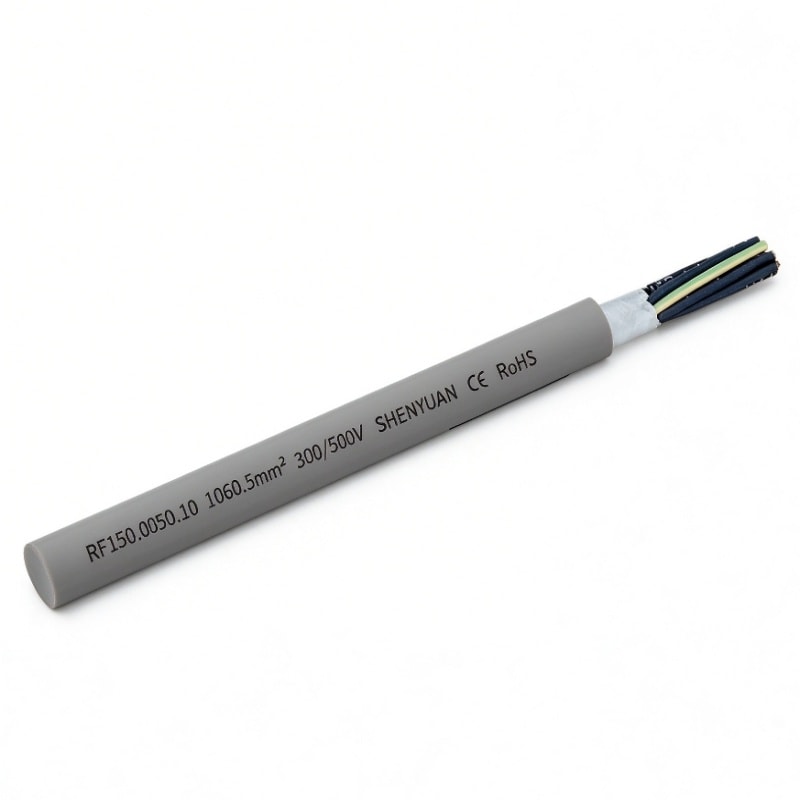

High speed Robot Control Cable RF150
Cable Construction
Stranded fine bare copper wires
Complying with IEC 60228 fine flexible copper wires
ETFE insulation
Compliant with VDE 0293-308
Layered stranding for 2-11 cores
Grouped stranding for 12+ cores
Separator layer
PVC jacket TM4
Gray (RAL7001)
Properties
Flame retardant IEC 60332-1-2
Oil resistant per EN50290, 70°C, 4H
UV resistant, black jacket
Optional Enhancements
Low temperature: optional -40°C cold-resistant compound
High temperature: optional 105°C rated
Oil environment: optional highly oil-resistant PVC
Shielded version: RF151
Product Features
Small lay length for conductors
Fatigue-resistant, high abrasion-resistant insulation
Core un-twisting to reduce stress
Suitable for torsion cable stranding
High toughness, high elasticity, abrasion-resistant jacket
Applications
These cables are suitable for torsion or moving applications without gravitational load. For indoor use in dry or humid environments; not suitable for open outdoor exposure. Robot cables for ±270° torsion robot arms or bodies. Also suitable for industrial automation such as machine tools, logistics conveying, assembly lines, production lines, and laser printing, where repeated long-distance movement and high stability are required.
| Material Code | Size mm2 | OD mm | Copper Weight kg/km | Cable Weight kg/km |
| RF150.0050.02 | 2X0.5 | 5.7 | 9.9 | 44.8 |
| RF150.0050.03 | 3G0.5 | 5.9 | 14.8 | 52.9 |
| RF150.0050.04 | 4G0.5 | 6.4 | 19.7 | 63.1 |
| RF150.0050.05 | 5G0.5 | 6.8 | 24.7 | 74.0 |
| RF150.0050.06 | 6G0.5 | 7.3 | 29.6 | 82.2 |
| RF150.0050.07 | 7G0.5 | 7.8 | 34.5 | 93.9 |
| RF150.0050.08 | 8G0.5 | 8.3 | 39.5 | 106.0 |
| RF150.0050.09 | 9G0.5 | 8.8 | 44.4 | 118.5 |
| RF150.0050.10 | 10G0.5 | 9.3 | 49.3 | 131.4 |
| RF150.0050.12 | 12G0.5 | 10.8 | 59.2 | 161.5 |
| RF150.0050.14 | 14G0.5 | 11.8 | 69.1 | 166.9 |
| RF150.0050.16 | 16G0.5 | 11.8 | 79.0 | 182.6 |
| RF150.0050.18 | 18G0.5 | 12.8 | 88.8 | 204.5 |
| RF150.0050.20 | 20G0.5 | 12.9 | 98.7 | 221.4 |
| RF150.0050.21 | 21G0.5 | 12.9 | 103.6 | 230.6 |
| RF150.0050.24 | 24G0.5 | 14.1 | 118.4 | 262.0 |
| RF150.0050.25 | 25G0.5 | 14.9 | 123.4 | 296.3 |
| RF150.0050.27 | 27G0.5 | 16.5 | 133.2 | 322.8 |
| RF150.0050.30 | 30G0.5 | 16.5 | 148.0 | 345.7 |
| RF150.0050.32 | 32G0.5 | 18.2 | 157.9 | 383.8 |
| RF150.0050.36 | 36G0.5 | 20.3 | 248.7 | 529.6 |
| Material Code | Size mm2 | OD mm | Copper Weight kg/km | Cable Weight kg/km |
| RF150.0100.02 | 2X1.0 | 6.5 | 18.4 | 62.1 |
| RF150.0100.03 | 3G1.0 | 6.8 | 27.6 | 75.4 |
| RF150.0100.04 | 4G1.0 | 7.3 | 36.8 | 91.6 |
| RF150.0100.05 | 5G1.0 | 7.9 | 46.1 | 108.8 |
| RF150.0100.06 | 6G1.0 | 8.5 | 55.3 | 121.7 |
| RF150.0100.07 | 7G1.0 | 9.1 | 64.5 | 140.1 |
| RF150.0100.08 | 8G1.0 | 9.7 | 73.7 | 159.2 |
| RF150.0100.09 | 9G1.0 | 10.4 | 82.9 | 181.2 |
| RF150.0100.10 | 10G1.0 | 11.2 | 92.1 | 204.5 |
| RF150.0100.12 | 12G1.0 | 13.4 | 110.5 | 262.3 |
| RF150.0100.14 | 14G1.0 | 14.9 | 129.0 | 280.1 |
| RF150.0100.16 | 16G1.0 | 14.9 | 147.4 | 306.9 |
| RF150.0100.18 | 18G1.0 | 16.4 | 165.8 | 352.1 |
| RF150.0100.20 | 20G1.0 | 16.5 | 184.2 | 381.4 |
| RF150.0100.21 | 21G1.0 | 16.5 | 193.5 | 396.8 |
| RF150.0100.24 | 24G1.0 | 18.3 | 221.1 | 461.1 |
| RF150.0100.25 | 25G1.0 | 18.4 | 230.3 | 475.4 |
| RF150.0100.27 | 27G1.0 | 20.3 | 248.7 | 517.6 |
| RF150.0100.30 | 30G1.0 | 20.3 | 276.4 | 556.4 |
| RF150.0100.32 | 32G1.0 | 22.4 | 294.8 | 616.4 |
| RF150.0100.36 | 36G1.0 | 22.4 | 331.6 | 669.0 |
| RF150.0150.02 | 2X1.5 | 7.1 | 27.6 | 78.3 |
| RF150.0150.03 | 3G1.5 | 7.5 | 41.5 | 96.9 |
| RF150.0150.04 | 4G1.5 | 8.1 | 55.3 | 119.1 |
| RF150.0150.05 | 5G1.5 | 8.7 | 69.1 | 142.6 |
| RF150.0150.06 | 6G1.5 | 9.4 | 82.9 | 160.5 |
| RF150.0150.07 | 7G1.5 | 10.2 | 96.7 | 186.8 |
| RF150.0150.08 | 8G1.5 | 11.0 | 110.5 | 216.0 |
| RF150.0150.09 | 9G1.5 | 11.8 | 124.4 | 246.4 |
| RF150.0150.10 | 10G1.5 | 12.7 | 138.2 | 278.1 |
| RF150.0150.12 | 12G1.5 | 15.3 | 165.8 | 356.0 |
| RF150.0150.14 | 14G1.5 | 16.9 | 193.5 | 381.5 |
| RF150.0150.16 | 16G1.5 | 17.0 | 221.1 | 419.5 |
| RF150.0150.18 | 18G1.5 | 18.7 | 248.7 | 481.2 |
| RF150.0150.20 | 20G1.5 | 18.8 | 276.4 | 522.5 |
| RF150.0150.21 | 21G1.5 | 18.8 | 290.2 | 544.2 |
| RF150.0150.24 | 24G1.5 | 20.8 | 331.6 | 632.3 |
| RF150.0150.25 | 25G1.5 | 20.9 | 345.4 | 652.5 |
