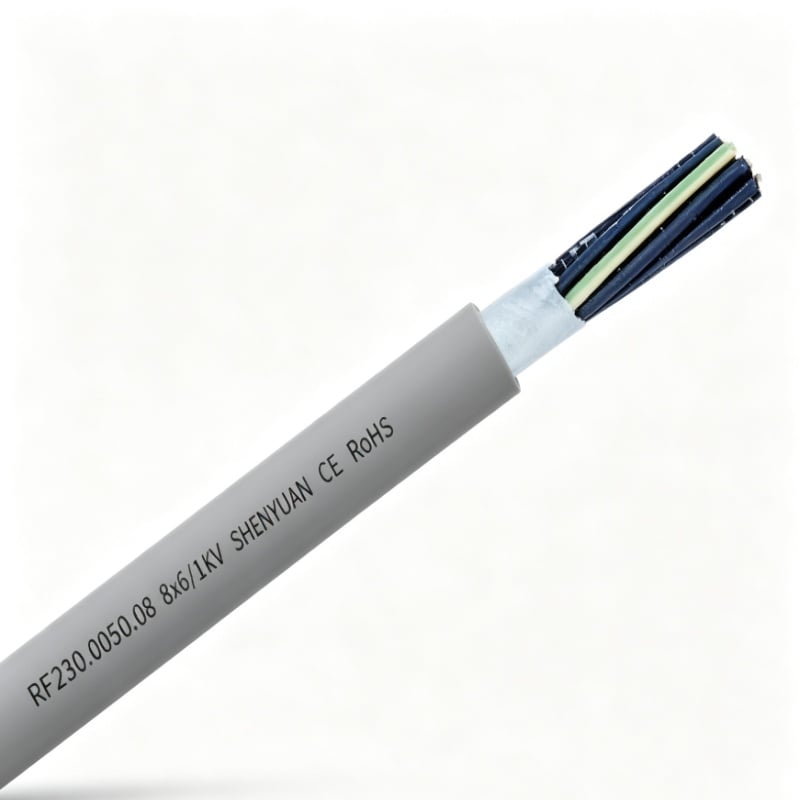

Medium Speed Robot Control Cable RF230
Cable Construction
Stranded fine bare copper conductors complying with IEC 60228 fine strand flexible copper
TPEE elastomer insulation conforming to VDE 0293-308
Layered stranding for 2~11 cores; grouped stranding for 12 cores and above
Separator layer
PVC sheath, TM4
Grey (RAL 7001)
Properties
Flame retardant to IEC 60332-1-2
Oil resistant complying with EN50290, 70℃, 4 h
UV resistant; black outer sheath
Optional Enhancements
-40℃ cold resistant compound for low temperature environments
105 ℃ rated material for high temperature environments
High oil resistance PVC for oily condition applications
Corresponding shielded model: RF231
Product Features
Short stranding pitch for conductors
Fatigue resistant, highly abrasion resistant insulation
Core twist relief design to reduce mechanical stress
Suitable for twist optimized cable stranding
High toughness, high elasticity, abrasion resistant outer sheath
Applications
These cables are intended for dynamic movement applications without heavy gravitational torsion load. For indoor dry or damp environments; not for open air outdoor use. Suitable as robot cables for robot arms and robot bodies with ±180° torsional motion. Also applied in industrial automation such as machine tools, material handling conveyors, assembly lines, production lines, laser printers and other long distance moving equipment requiring high stability under repeated flexing.
| Material Code | Size mm2 | OD mm | Copper Weight kg/km | Cable Weight kg/km |
| RF230.0050.02 | 2X0.5 | 7.7 | 9.9 | 72.9 |
| RF230.0050.03 | 3G0.5 | 8.0 | 14.8 | 82.6 |
| RF230.0050.04 | 4G0.5 | 8.5 | 19.7 | 95.6 |
| RF230.0050.05 | 5G0.5 | 9.1 | 24.7 | 109.9 |
| RF230.0050.06 | 6G0.5 | 9.7 | 29.6 | 120.0 |
| RF230.0050.07 | 7G0.5 | 10.3 | 34.5 | 135.5 |
| RF230.0050.08 | 8G0.5 | 10.9 | 39.5 | 151.7 |
| RF230.0050.09 | 9G0.5 | 11.5 | 44.4 | 168.6 |
| RF230.0050.10 | 10G0.5 | 12.2 | 49.3 | 186.0 |
| RF230.0050.12 | 12G0.5 | 14.1 | 59.2 | 228.6 |
| RF230.0050.14 | 14G0.5 | 15.3 | 69.1 | 231.7 |
| RF230.0050.16 | 16G0.5 | 15.4 | 79.0 | 249.2 |
| RF230.0050.18 | 18G0.5 | 16.6 | 88.8 | 278.0 |
| RF230.0050.20 | 20G0.5 | 16.7 | 98.7 | 297.5 |
| RF230.0050.21 | 21G0.5 | 16.7 | 103.6 | 308.4 |
| RF230.0050.24 | 24G0.5 | 18.2 | 118.4 | 351.4 |
| RF230.0050.25 | 25G0.5 | 18.4 | 123.4 | 361.3 |
| RF230.0050.27 | 27G0.5 | 20.3 | 133.2 | 394.4 |
| RF230.0050.30 | 30G0.5 | 20.3 | 148.0 | 419.4 |
| RF230.0050.32 | 32G0.5 | 22.4 | 157.9 | 470.4 |
| RF230.0050.36 | 36G0.5 | 24.5 | 248.7 | 627.4 |
| Material Code | Size mm2 | OD mm | Copper Weight kg/km | Cable Weight kg/km |
| RF230.0075.02 | 2X0.75 | 8.1 | 13.8 | 82.6 |
| RF230.0075.03 | 3G0.75 | 8.4 | 20.7 | 94.7 |
| RF230.0075.04 | 4G0.75 | 9.0 | 27.6 | 110.8 |
| RF230.0075.05 | 5G0.75 | 9.6 | 34.5 | 128.2 |
| RF230.0075.06 | 6G0.75 | 10.3 | 41.5 | 140.6 |
| RF230.0075.07 | 7G0.75 | 11.0 | 48.4 | 159.5 |
| RF230.0075.08 | 8G0.75 | 11.7 | 55.3 | 179.3 |
| RF230.0075.09 | 9G0.75 | 12.3 | 62.2 | 199.8 |
| RF230.0075.10 | 10G0.75 | 13.0 | 69.1 | 221.1 |
| RF230.0075.12 | 12G0.75 | 15.1 | 82.9 | 272.3 |
| RF230.0075.14 | 14G0.75 | 16.5 | 96.7 | 276.4 |
| RF230.0075.16 | 16G0.75 | 16.5 | 110.5 | 299.0 |
| RF230.0075.18 | 18G0.75 | 17.9 | 124.4 | 334.1 |
| RF230.0075.20 | 20G0.75 | 18.1 | 138.2 | 360.9 |
| RF230.0075.21 | 21G0.75 | 18.1 | 145.1 | 374.8 |
| RF230.0075.24 | 24G0.75 | 19.9 | 165.8 | 437.5 |
| RF230.0075.25 | 25G0.75 | 20.1 | 172.7 | 450.1 |
| RF230.0075.27 | 27G0.75 | 22.2 | 186.5 | 491.1 |
| RF230.0075.30 | 30G0.75 | 22.2 | 207.3 | 523.7 |
| RF230.0075.32 | 32G0.75 | 24.5 | 221.1 | 586.1 |
| RF230.0075.36 | 36G0.75 | 24.5 | 248.7 | 630.6 |
