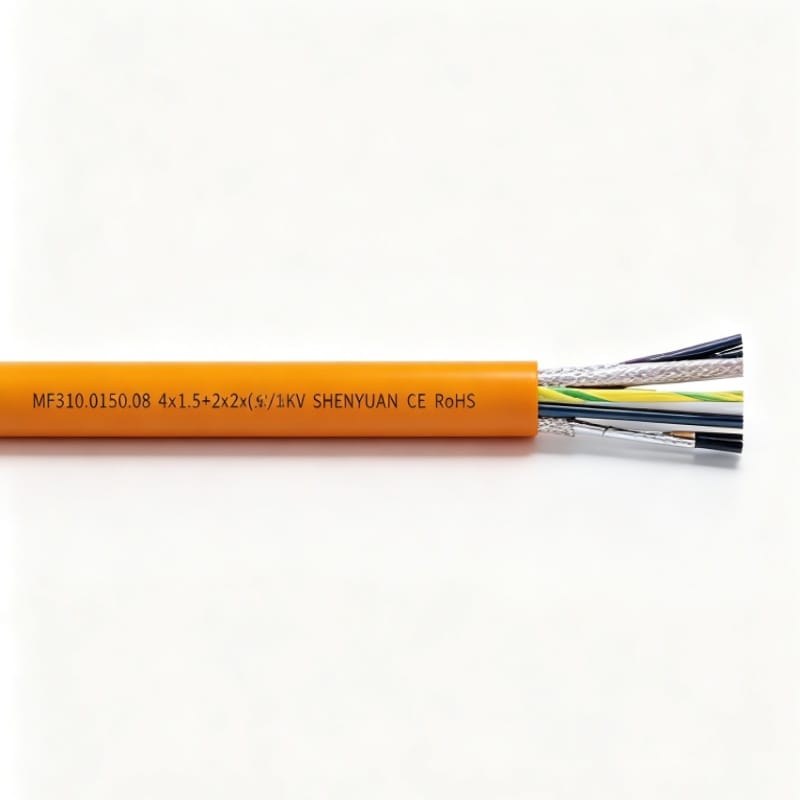

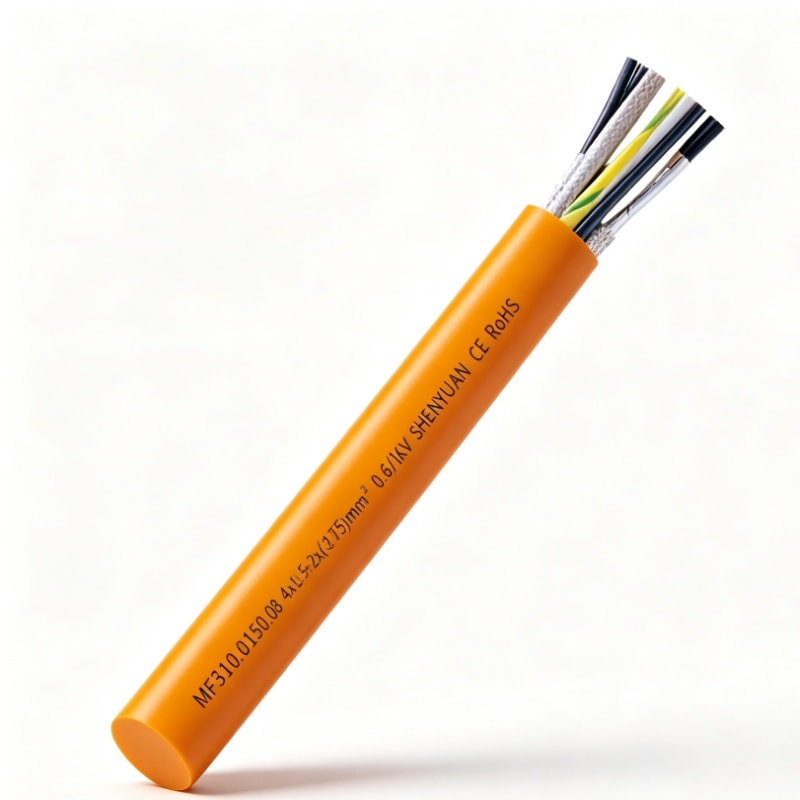

Medium Speed Drag Chain Servo Cable MF310
Cable Construction
Stranded fine bare copper conductors, compliant with IEC 60228 Class 6
TPE elastomer insulation, compliant with VDE 0293-308
Optimized layered stranding
PVC sheath, TM4
Orange (RAL2003)
Note: Each data pair of composite cables is individually braid shielded.
Properties
Flame retardant to IEC 60332-1-2
Oil resistant complying with EN50290, 70℃, 4h
Electromagnetic compatibility compliant with EU EMC Directive
Optional Enhancements
-40℃ cold resistant compound available for low temperature environments
105℃ rated material available for high temperature environments
High oil resistance PVC available for oily environments
Non-woven tape wrapping design for weight reduction
Corresponding shielded models: MF311, MF312
Product Features
Short stranding pitch for conductors and cores
Highly elastic, abrasion resistant insulation
Core twist relief design to reduce mechanical stress
Anti electromagnetic interference performance
High toughness, high elasticity, abrasion resistant outer sheath
Applications
These cables are designed for dynamically moving equipment requiring high stability under repeated flexing with no heavy mechanical load. Suitable for indoor dry or damp conditions. Not for open air outdoor use. Used for connection of servo motors and prefabricated motors.
| Material Code | Size mm2 | OD mm | Cable Weight kg/km |
| MF310.0050.04 | 4G0.5 | 5.6 | 50.1 |
| MF310.0075.04 | 4G0.75 | 6.2 | 64.5 |
| MF310.0100.04 | 4G1.0 | 6.7 | 78.7 |
| MF310.0150.04 | 4G1.5 | 9.8 | 153.4 |
| MF310.0250.04 | 4G2.5 | 11.3 | 219.2 |
| MF310.0400.04 | 4G4 | 13.3 | 316.1 |
| MF310.0600.04 | 4G6 | 14.5 | 408.0 |
| MF310.1000.04 | 4G10 | 16.1 | 617.0 |
| MF310.1600.04 | 4G16 | 20.3 | 915.4 |
| MF310.2500.04 | 4G25 | 24.8 | 1388.2 |
| MF310.3500.04 | 4G35 | 29.2 | 1937.2 |
| MF310.5000.04 | 4G50 | 34.1 | 2713.1 |
| MF310.0050.06 | 4x0.5+(2x0.5) | 9.9 | 100.8 |
| MF310.0050.08 | 4x0.5+2x(2x0.5) | 11.4 | 131.3 |
| MF310.0075.06 | 4x0.75+(2x0.5) | 10.4 | 134.1 |
| MF310.0075.08 | 4x0.75+2x(2x0.5) | 11.9 | 173.3 |
| MF310.0100.06 | 4x1.0+ (2x0.75) | 11.1 | 162.3 |
| MF310.0100.08 | 4x1.0+2x(2x0.75) | 12.8 | 209.9 |
| MF310.0150.06 | 4x1.5+(2x0.75) | 11.0 | 157.8 |
| MF310.0150.06.1 | 4x1.5+(2x1.0) | 11.2 | 169.3 |
| MF310.0150.06.2 | 4x1.5+(2x1.5) | 11.6 | 184.2 |
| MF310.0150.08 | 4x1.5+2x(2x0.75) | 12.8 | 207.5 |
| MF310.0150.08.1 | 4x1.5+2x(2x1.0) | 13.3 | 230.6 |
| MF310.0150.08.2 | 4x1.5+2x(2x1.5) | 14.0 | 261.0 |
| MF310.0250.06 | 4x2.5+(2x0.75) | 13.3 | 240.3 |
| MF310.0250.06.1 | 4x2.5+(2x1.0) | 13.5 | 251.4 |
| MF310.0250.06.2 | 4x2.5+(2x1.5) | 13.8 | 265.9 |
| Material Code | Size mm2 | OD mm | Cable Weight kg/km |
| MF310.0250.08 | 4x2.5+2 x(2x0.75) | 14.8 | 285.4 |
| MF310.0250.08.1 | 4x2.5+2x(2x1.0) | 15.2 | 308.5 |
| MF310.0250.08.2 | 4x2.5+2x(2x1.5) | 15.8 | 337.0 |
| MF310.0400.06 | 4x4+(2x0.75) | 15.2 | 324.0 |
| MF310.0400.06.1 | 4x4+(2x1.0) | 15.5 | 335.2 |
| MF310.0400.06.2 | 4x4+(2x1.5) | 15.8 | 349.6 |
| MF310.0400.08 | 4x4+2x(2x0.75) | 16.6 | 369.1 |
| MF310.0400.08.1 | 4x4+2x(2x1.0) | 17.0 | 391.1 |
| MF310.0400.08.2 | 4x4+2x(2x1.5) | 17.6 | 2316.0 |
| MF310.0600.06 | 4x6+(2x0.75) | 15.2 | 406.3 |
| MF310.0600.06.1 | 4x6+(2x1.0) | 15.5 | 417.4 |
| MF310.0600.06.2 | 4x6+(2x1.5) | 15.8 | 431.9 |
| MF310.0600.08 | 4x6+2x(2x0.75) | 17.9 | 462.1 |
| MF310.0600.08.1 | 4x6+2x(2x1.0) | 18.3 | 484.1 |
| MF310.0600.08.2 | 4x6+2x(2x1.5) | 18.9 | 512.7 |
| MF310.1000.06 | 4x10+(2x0.75) | 19.3 | 600.9 |
| MF310.1000.06.1 | 4x10+(2x1.0) | 19.6 | 612.1 |
| MF310.1000.06.2 | 4x10+(2x1.5) | 19.6 | 623.8 |
| MF310.1000.08 | 4x10+2x(2x0.75) | 20.4 | 646.5 |
| MF310.1000.08.1 | 4x10+2x(2x1.0) | 20.9 | 672.0 |
| MF310.1000.08.2 | 4x10+2x(2x1.5) | 21.6 | 705.5 |
| MF310.1600.06 | 4x16+(2x1.5) | 24.4 | 950.3 |
| MF310.1600.08 | 4x16+2x(2x1.5) | 26.0 | 1002.8 |
| MF310.2500.06 | 4x25+(2x1.5) | 28.6 | 1376.5 |
| MF310.2500.08 | 4x25+2x(2x1.5) | 30.0 | 1427.9 |
| MF310.3500.06 | 4x35+2x(2x1.5) | 31.2 | 1818.6 |
| MF310.5000.08 | 4 x50+2x(2x1.5) | 36.8 | 2497.4 |
