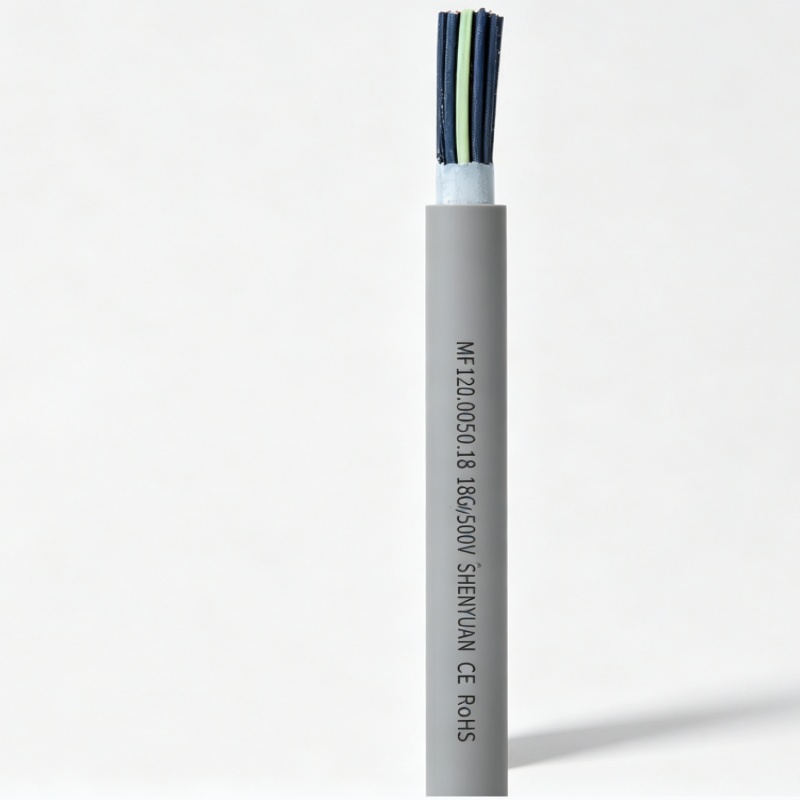

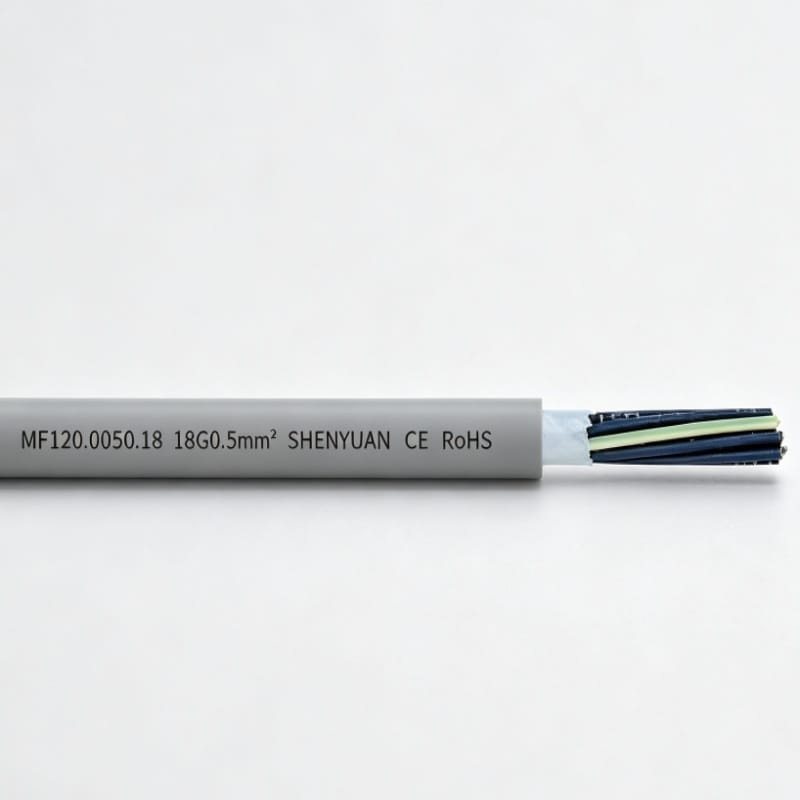

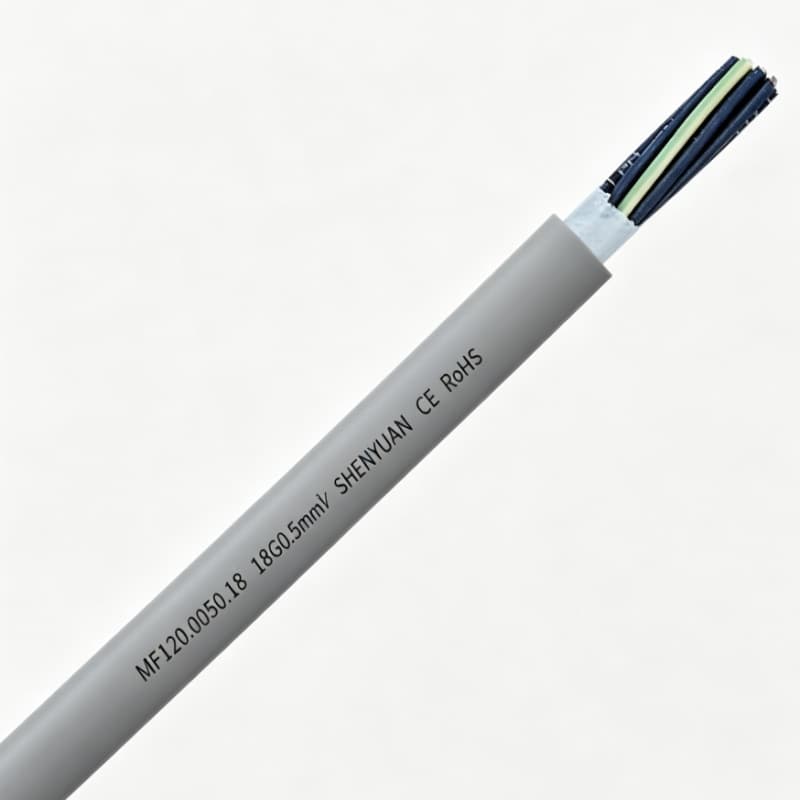

Medium Speed Drag Chain Control Cables MF120
Cable Construction
Stranded fine bare copper conductors, Class 6 acc. to IEC 60228
TPE elastomer insulation acc. to VDE 0293-308
Optimized layered stranding
Separator layer
Polyether based PUR outer sheath
Colours: Black (RAL 9005)
Grey (RAL 7001)
Properties
Flame retardant acc. to IEC 60332-1-2
Oil resistant acc. to EN 50290 (90 ℃, 168 H)
Wear resistant, scratch resistant, chemical resistant, hydrolysis resistant
Cold resistant down to −40 ℃, microbe resistant, UV resistant
Optional Enhancements
Halogen free auxiliary materials are available
Corresponding shielded model: MF121
Product Features
Suitable for harsh environment applications
Short lay length for conductors & core wires
Highly elastic, wear resistant insulation
Twist neutralized cores to reduce internal stress
Small outer diameter, saves installation space
High toughness, high elasticity, wear resistant outer sheath
Applications
These cables are designed for non load bearing moving drag chain applications. They are suitable for indoor dry or damp conditions, as well as outdoor cold and harsh northern climate environments. As control cables, they are used in industrial automation equipment such as machine tools, material handling systems, assembly lines and production lines, for repeatedly moving equipment requiring high operational stability and other demanding industrial applications.
| Material Code | Size mm2 | OD mm | Copper Weight kg/km | Cable Weight kg/km |
| MF120.0050.02 | 2X0.5 | 5.1 | 9.3 | 32.4 |
| MF120.0050.03 | 3G0.5 | 5.4 | 14.0 | 39.7 |
| MF120.0050.04 | 4G0.5 | 5.9 | 18.6 | 49.3 |
| MF120.0050.05 | 5G0.5 | 6.5 | 23.3 | 60.0 |
| MF120.0050.06 | 6G0.5 | 7.1 | 27.9 | 67.8 |
| MF120.0050.07 | 7G0.5 | 7.7 | 32.6 | 80.0 |
| MF120.0050.08 | 8G0.5 | 8.3 | 37.2 | 92.9 |
| MF120.0050.09 | 9G0.5 | 9.0 | 41.9 | 106.5 |
| MF120.0050.10 | 10G0.5 | 9.6 | 46.5 | 121.0 |
| MF120.0050.12 | 12G0.5 | 10.8 | 55.9 | 152.1 |
| MF120.0050.14 | 14G0.5 | 9.9 | 65.2 | 137.5 |
| MF120.0050.16 | 16G0.5 | 10.5 | 74.5 | 156.1 |
| MF120.0050.18 | 18G0.5 | 11.1 | 83.8 | 175.5 |
| MF120.0050.20 | 20G0.5 | 11.7 | 93.1 | 195.7 |
| MF120.0050.21 | 21G0.5 | 12.5 | 97.7 | 211.3 |
| MF120.0050.24 | 24G0.5 | 13.0 | 111.7 | 238.6 |
| MF120.0050.25 | 25G0.5 | 13.0 | 116.4 | 245.4 |
| MF120.0050.27 | 27G0.5 | 13.6 | 125.7 | 254.3 |
| MF120.0050.30 | 30G0.5 | 13.9 | 139.6 | 278.4 |
| MF120.0050.32 | 32G0.5 | 14.5 | 148.9 | 298.2 |
| MF120.0050.36 | 36G0.5 | 15.1 | 167.6 | 332.5 |
| Material Code | Size mm2 | OD mm | Copper Weight kg/km | Cable Weight kg/km |
| MF120.0100.02 | 2X1.0 | 6.0 | 18.3 | 48.7 |
| MF120.0100.03 | 3G1.0 | 6.4 | 27.5 | 61.1 |
| MF120.0100.04 | 4G1.0 | 7.0 | 36.7 | 76.9 |
| MF120.0100.05 | 5G1.0 | 7.7 | 45.8 | 94.2 |
| MF120.0100.06 | 6G1.0 | 8.4 | 55.0 | 107.3 |
| MF120.0100.07 | 7G1.0 | 9.2 | 64.1 | 126.7 |
| MF120.0100.08 | 8G1.0 | 9.9 | 73.3 | 147.3 |
| MF120.0100.09 | 9G1.0 | 10.7 | 82.5 | 169.0 |
| MF120.0100.10 | 10G1.0 | 11.4 | 91.6 | 191.8 |
| MF120.0100.12 | 12G1.0 | 12.9 | 110.0 | 240.8 |
| MF120.0100.14 | 14G1.0 | 11.9 | 128.3 | 223.5 |
| MF120.0100.16 | 16G1.0 | 12.5 | 146.6 | 254.2 |
| MF120.0100.18 | 18G1.0 | 13.3 | 164.9 | 286.3 |
| MF120.0100.20 | 20G1.0 | 14.0 | 183.3 | 319.5 |
| MF120.0100.21 | 21G1.0 | 15.0 | 192.4 | 344.0 |
| MF120.0100.24 | 24G1.0 | 15.5 | 219.9 | 389.6 |
| MF120.0100.25 | 25G1.0 | 15.5 | 229.1 | 401.5 |
| MF120.0100.27 | 27G1.0 | 16.3 | 247.4 | 418.0 |
| MF120.0100.30 | 30G1.0 | 16.7 | 274.9 | 459.0 |
| MF120.0100.32 | 32G1.0 | 17.4 | 293.2 | 491.6 |
| MF120.0100.36 | 36G1.0 | 18.1 | 329.9 | 549.4 |
| MF120.0150.02 | 2X1.5 | 6.7 | 27.5 | 64.0 |
| MF120.0150.03 | 3G1.5 | 7.1 | 41.2 | 81.6 |
| MF120.0150.04 | 4G1.5 | 7.8 | 55.0 | 103.3 |
| MF120.0150.05 | 5G1.5 | 8.6 | 68.7 | 127.0 |
| MF120.0150.06 | 6G1.5 | 9.4 | 82.5 | 145.2 |
| MF120.0150.07 | 7G1.5 | 10.3 | 96.2 | 171.6 |
| MF120.0150.08 | 8G1.5 | 11.1 | 110.0 | 199.6 |
| MF120.0150.09 | 9G1.5 | 12.0 | 123.7 | 229.0 |
| MF120.0150.10 | 10G1.5 | 12.8 | 137.4 | 259.8 |
| MF120.0150.12 | 12G1.5 | 14.6 | 164.9 | 325.9 |
| MF120.0150.14 | 14G1.5 | 13.3 | 192.4 | 306.8 |
| MF120.0150.16 | 16G1.5 | 14.1 | 219.9 | 349.5 |
| MF120.0150.18 | 18G1.5 | 15.0 | 247.4 | 393.9 |
| MF120.0150.20 | 20G1.5 | 15.8 | 274.9 | 439.6 |
| MF120.0150.21 | 21G1.5 | 16.9 | 288.6 | 472.6 |
| MF120.0150.24 | 24G1.5 | 17.5 | 329.9 | 536.0 |
| MF120.0150.25 | 25G1.5 | 17.5 | 343.6 | 553.1 |
| MF120.0150.27 | 27G1.5 | 18.4 | 371.1 | 577.2 |
| MF120.0150.30 | 30G1.5 | 18.9 | 412.3 | 634.8 |
| MF120.0150.32 | 32G1.5 | 19.7 | 439.8 | 679.8 |
| MF120.0150.36 | 36G1.5 | 20.5 | 494.8 | 760.6 |
| MF120.0250.02 | 2X2.5 | 8.5 | 46.3 | 106.4 |
| MF120.0250.03 | 3G2.5 | 9.1 | 69.4 | 136.5 |
| MF120.0250.04 | 4G2.5 | 10.1 | 92.5 | 173.9 |
| MF120.0250.05 | 5G2.5 | 10.9 | 115.7 | 210.1 |
| MF120.0250.06 | 6G2.5 | 12.3 | 138.8 | 245.6 |
| MF120.0250.07 | 7G2.5 | 13.4 | 161.9 | 291.2 |
| MF120.0250.08 | 8G2.5 | 14.5 | 185.1 | 339.6 |
| MF120.0250.09 | 9G2.5 | 15.7 | 208.2 | 390.5 |
| MF120.0250.10 | 10G2.5 | 16.8 | 231.3 | 444.0 |
| MF120.0250.12 | 12G2.5 | 19.2 | 277.6 | 559.1 |
