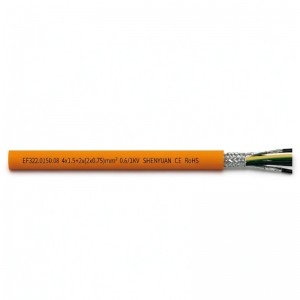

Low Speed Drag Chain Servo Cables EF322

Description:

Compliant with EN 50525, IEC 60502
Rated voltage: 300/500 V (0.5~1.0 mm²), test voltage 2000 V / 5 min
Rated voltage: 0.6/1 kV (≥1.5 mm²), test voltage 3500 V / 5 min
Insulation resistance ≥ 20 MΩ·km @ 20 °C
Static operating temperature:‑30 °C ~ 70 °C
Dynamic operating temperature:‑10 °C ~ 70 °C
Minimum bending radius (static installation): 6 × cable outer diameter
Minimum bending radius (dynamic installation): 10 × cable outer diameter
Drag‑chain travel: 3 m, speed 1 m/s
Overhead travel: 10 m, speed 2 m/s
Drag‑chain service life: 6 million cycles

MOQ: 500m

Is sample available: Yes
Quote within 24h.

Send email to us

Product Detail

Product Tags

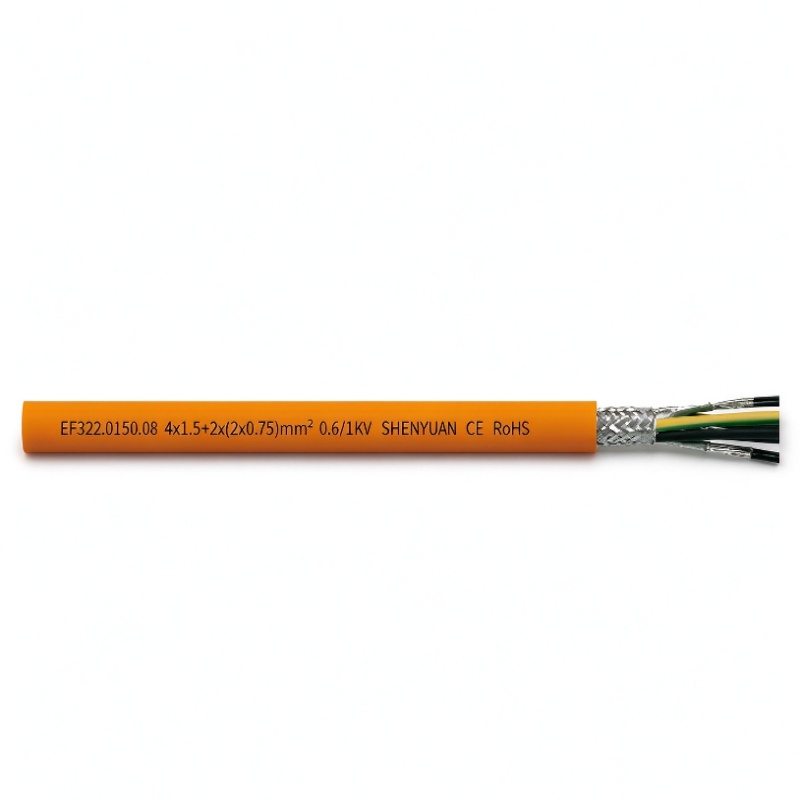

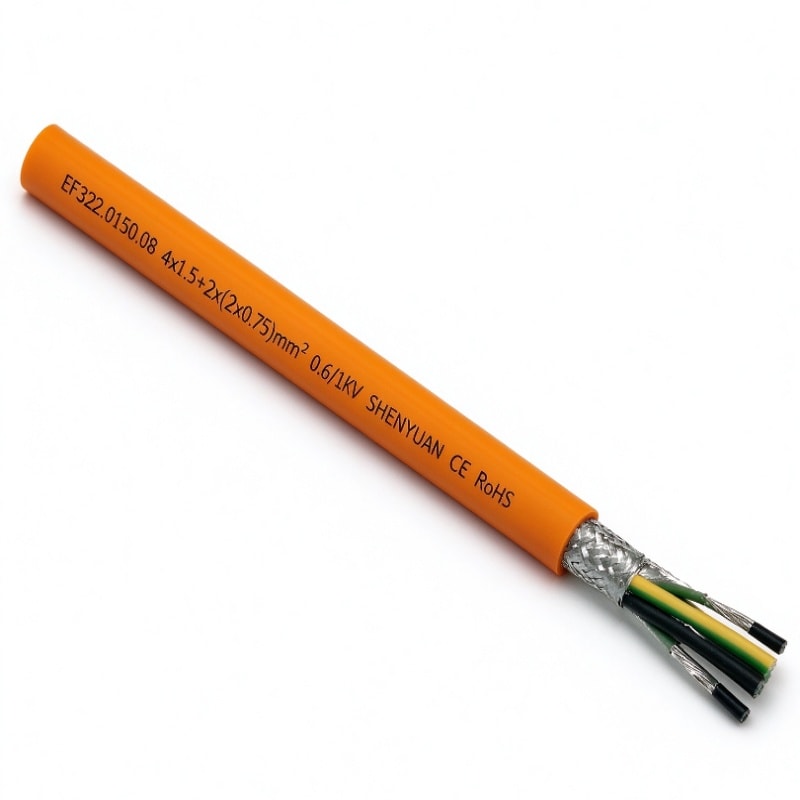

Cable Construction

Stranded fine bare copper wires, IEC 60228 Class 6
PVC insulation TI2, compliant with VDE 0293‑308
Optimized layered stranding
Separator layer
Tinned‑copper braided shield
Separator layer
Polyether‑based PUR outer sheath, orange (RAL 2003)

Note: Each data pair of composite wires is individually braid‑shielded

Characteristics

Flame retardant per IEC 60332‑1‑2
Oil‑resistant complying with EN 50290, 90 °C, 168 hours
EMC performance compliant with EU directives
Wear‑resistant, scratch‑resistant, chemical‑resistant, hydrolysis‑resistant
Cold‑resistant down to ‑40 °C, microbe‑resistant, UV‑resistant

Optional Upgrades

‑40 °C cold‑resistant insulation material available for low‑temperature environments

Product Features

Suitable for harsh‑environment conditions
Optimized stranding geometry for round stable cable profile
EMI suppression performance

Applications

Low Speed Drag Chain Servo Cables EF322 are intended for non-load-bearing moving drag-chain applications, for indoor use in dry or humid conditions. Not suitable for open-air outdoor exposure.As data cables, they are used in CNC machine tools, electronic equipment computers, measuring instruments, automated warehouses and other equipment requiring repeated movement together with stable signal & data transmission.

Material Code	Size mm2	OD mm	Cable Weight kg/km
EF322.0050.06	4x0.5+(2x0.5)	9.6	120.6
EF322.0050.08	4x0.5+2x(2x0.5)	11.6	158.8
EF322.0075.06	4x0.75+(2x0.5)	10.4	145.2
EF322.0075.08	4x0.75+2x(2x0.5)	12.0	170.9
EF322.0100.06	4x1.0+ (2x0.75)	11.1	168.7
EF322.0100.08	4x1.0+2x(2x0.75)	12.8	206.5
EF322.0150.06	4x1.5+(2x0.75)	13.8	237.6
EF322.0150.06.1	4x1.5+(2x1.0)	14.0	245.1
EF322.0150.06.2	4x1.5+(2x1.5)	15.0	271.7
EF322.0150.08	4x1.5+2x(2x0.75)	15.4	275.4
EF322.0150.08.1	4x1.5+2x(2x1.0)	15.8	290.3
EF322.0150.08.2	4x1.5+2x(2x1.5)	17.1	335.5
EF322.0250.06	4x2.5+(2x0.75)	15.2	300.2
EF322.0250.06.1	4x2.5+(2x1.0)	15.5	308.8
EF322.0250.06.2	4x2.5+(2x1.5)	16.3	333.1
Material Code	Size mm2	OD mm	Cable Weight kg/km
EF322.0250.08	4x2.5+2 x(2x0.75)	16.7	336.8
EF322.0250.08.1	4x2.5+2x(2x1.0)	17.1	351.7
EF322.0250.08.2	4x2.5+2x(2x1.5)	18.9	402.3
EF322.0400.06	4x4+(2x0.75)	17.6	413.3
EF322.0400.06.1	4x4+(2x1.0)	17.9	421.6
EF322.0400.06.2	4x4+(2x1.5)	19.0	449.4
EF322.0400.08	4x4+2x(2x0.75)	19.0	448.5
EF322.0400.08.1	4x4+2x(2x1.0)	19.1	459.9
EF322.0400.08.2	4x4+2x(2x1.5)	20.8	509.7
EF322.0600.06	4x6+(2x0.75)	19.2	523.4
EF322.0600.06.1	4x6+(2x1.0)	19.4	530.9
EF322.0600.06.2	4x6+(2x1.5)	20.2	555.2
EF322.0600.08	4x6+2x(2x0.75)	20.5	557.1
EF322.0600.08.1	4x6+2x(2x1.0)	21.0	573.1
EF322.0600.08.2	4x6+2x(2x1.5)	22.4	619.4
EF322.1000.06	4x10+(2x0.75)	21.6	715.7
EF322.1000.06.1	4x10+(2x1.0)	21.8	723.1
EF322.1000.06.2	4x10+(2x1.5)	22.6	747.5
EF322.1000.08	4x10+2x(2x0.75)	22.8	748.8
EF322.1000.08.1	4x10+2x(2x1.0)	23.1	762.6
EF322.1000.08.2	4x10+2x(2x1.5)	24.4	807.7
EF322.1600.06	4x16+(2x1.5)	25.6	1034.3
EF322.1600.08	4x16+2x(2x1.5)	27.6	1106.5
EF322.2500.06	4x25+(2x1.5)	30.0	1476.2
EF322.2500.08	4x25+2x(2x1.5)	31.6	1546.9
EF322.3500.06	4x35+2x(2x1.5)	32.8	1942.3
EF322.5000.08	4 x50+2x(2x1.5)	38.7	2670.7
