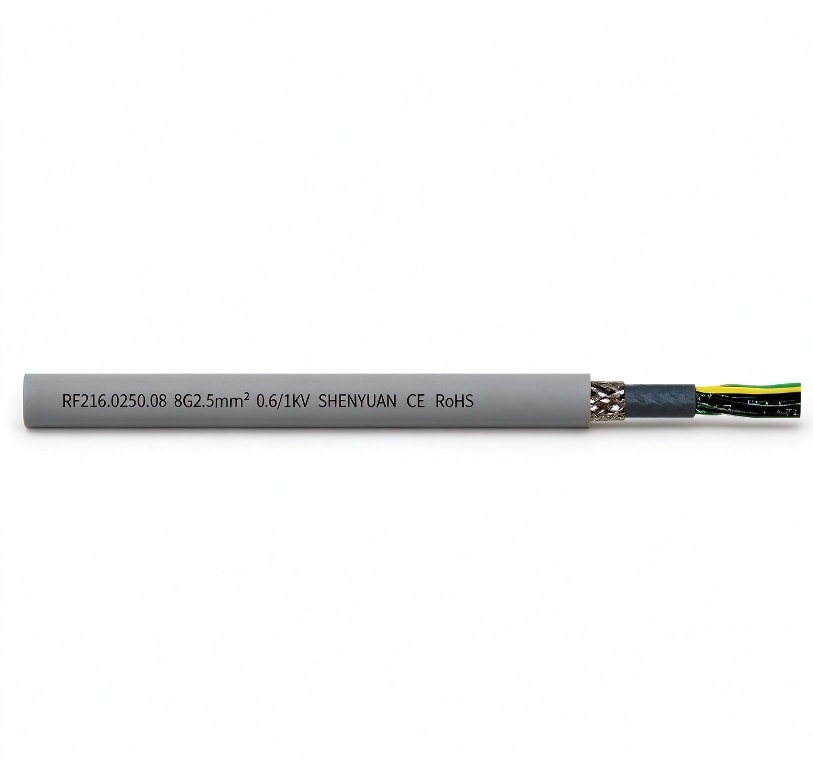

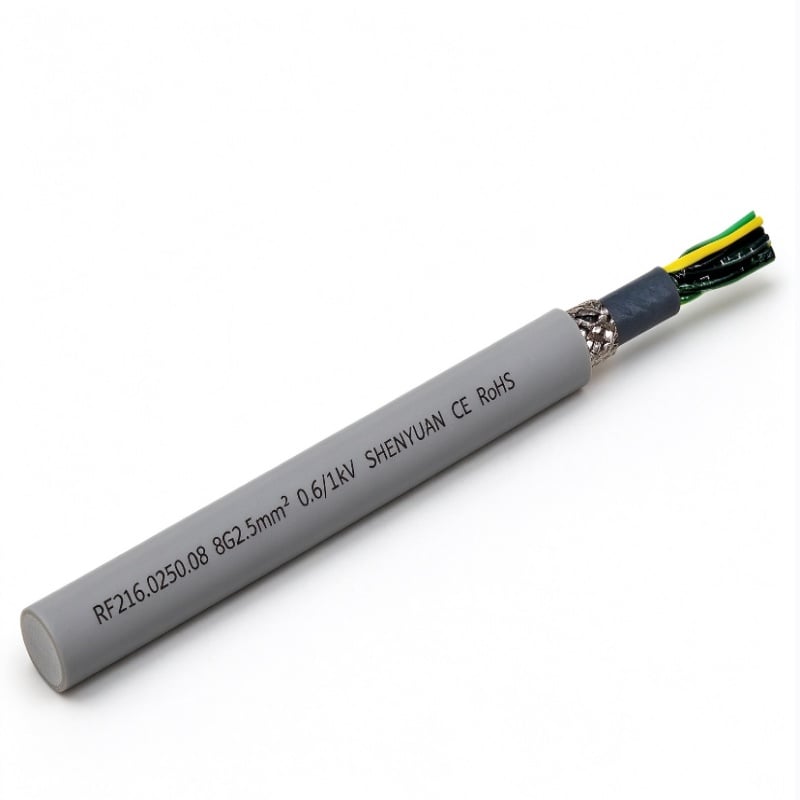

Low Speed Robot Control Cables RF216
Cable Construction
Stranded fine bare‑copper wires Fine flexible copper conductors conforming to IEC 60228
TPE elastomer insulation Compliant with VDE 0293‑308
Layered stranding for 2‑11 cores
Grouped stranding for 12 cores and above
Separator layer
Tinned‑copper braided shield
PVC sheath TM4, grey (RAL7001)
Characteristics
Flame‑retardant: IEC 60332‑1‑2
Oil resistance: Compliant with EN50290, 70 ℃, 4 h
EMC performance compliant with EU EMC Directive
UV‑resistant, black outer sheath
Optional Upgrades
For low‑temperature environments: ‑40 ℃ cold‑resistant compound available
For high‑temperature environments: 105 ℃ rated material available
For oily environments: high‑oil‑resistance PVC available
Product Features
Short conductor lay‑length
High‑elasticity, abrasion‑resistant insulation
Untwisted core wires to reduce mechanical stress
Suitable for stranding under torsional conditions
High‑toughness, high‑elasticity and wear‑resistant outer sheath
Round and compact outer profile for improved shielding and core‑wire protection
Applications
Low Speed Robot Control Cables RF216 are intended for applications without gravity‑loaded torsion, for indoor dry or damp conditions. Not for open‑air outdoor use. Robot cable for robot arms / robot bodies with ±180° torsional motion. Also suitable for industrial‑automation equipment subject to repeated movements requiring stable long‑distance transmission, such as machine tools, material‑handling systems, assembly lines, production lines and laser printers, where braided shielding is required for electromagnetic‑interference suppression.
| Material Code | Size mm2 | OD mm | Copper Weight kg/km | Cable Weight kg/km |
| RF216.0050.02 | 2X0.5 | 9.5 | 28.3 | 125.5 |
| RF216.0050.03 | 3G0.5 | 9.9 | 34.1 | 136.6 |
| RF216.0050.04 | 4G0.5 | 10.4 | 40.7 | 153.7 |
| RF216.0050.05 | 5G0.5 | 11.0 | 47.5 | 172.6 |
| RF216.0050.06 | 6G0.5 | 11.7 | 54.4 | 192.7 |
| RF216.0050.07 | 7G0.5 | 12.3 | 61.3 | 213.2 |
| RF216.0050.08 | 8G0.5 | 13.0 | 68.3 | 235.0 |
| RF216.0050.09 | 9G0.5 | 13.6 | 75.2 | 258.9 |
| RF216.0050.10 | 10G0.5 | 14.3 | 82.2 | 285.6 |
| RF216.0050.12 | 12G0.5 | 16.4 | 98.5 | 343.9 |
| RF216.0050.14 | 14G0.5 | 17.8 | 124.0 | 369.5 |
| RF216.0050.16 | 16G0.5 | 17.8 | 133.7 | 387.6 |
| RF216.0050.18 | 18G0.5 | 19.4 | 148.8 | 440.3 |
| RF216.0050.20 | 20G0.5 | 19.6 | 158.9 | 460.9 |
| RF216.0050.21 | 21G0.5 | 19.6 | 163.7 | 473.9 |
| RF216.0050.24 | 24G0.5 | 21.4 | 184.4 | 548.2 |
| RF216.0050.25 | 25G0.5 | 21.5 | 189.6 | 561.3 |
| RF216.0050.27 | 27G0.5 | 23.5 | 206.2 | 613.3 |
| RF216.0050.30 | 30G0.5 | 23.5 | 220.6 | 638.3 |
| RF216.0050.32 | 32G0.5 | 25.8 | 238.1 | 718.6 |
| RF216.0050.36 | 36G0.5 | 25.8 | 257.2 | 750.2 |
| Material Code | Size mm2 | OD mm | Copper Weight kg/km | Cable Weight kg/km |
| RF216.0075.02 | 2X0.75 | 10.0 | 34.6 | 141.1 |
| RF216.0075.03 | 3G0.75 | 10.4 | 43.0 | 155.3 |
| RF216.0075.04 | 4G0.75 | 11.0 | 52.2 | 176.4 |
| RF216.0075.05 | 5G0.75 | 11.7 | 61.6 | 199.7 |
| RF216.0075.06 | 6G0.75 | 12.4 | 71.1 | 224.4 |
| RF216.0075.07 | 7G0.75 | 13.1 | 80.7 | 249.7 |
| RF216.0075.08 | 8G0.75 | 13.8 | 90.3 | 276.5 |
| RF216.0075.09 | 9G0.75 | 14.7 | 108.9 | 316.0 |
| RF216.0075.10 | 10G0.75 | 15.4 | 119.2 | 349.4 |
| RF216.0075.12 | 12G0.75 | 17.7 | 142.9 | 421.8 |
| RF216.0075.14 | 14G0.75 | 19.4 | 163.3 | 449.9 |
| RF216.0075.16 | 16G0.75 | 19.5 | 177.8 | 474.3 |
| RF216.0075.18 | 18G0.75 | 21.2 | 198.2 | 539.6 |
| RF216.0075.20 | 20G0.75 | 21.4 | 213.2 | 567.0 |
| RF216.0075.21 | 21G0.75 | 21.4 | 220.4 | 584.1 |
| RF216.0075.24 | 24G0.75 | 23.4 | 249.0 | 676.9 |
| RF216.0075.25 | 25G0.75 | 23.5 | 256.6 | 693.9 |
| RF216.0075.27 | 27G0.75 | 25.8 | 278.9 | 757.9 |
| RF216.0075.30 | 30G0.75 | 25.8 | 300.4 | 791.9 |
| RF216.0075.32 | 32G0.75 | 28.3 | 323.5 | 890.5 |
| RF216.0075.36 | 36G0.75 | 28.3 | 352.3 | 933.8 |
