Gigabit Ethernet Cable

Gigabit Ethernet Cable Featured Image
  • Gigabit Ethernet Cable
  • Gigabit Ethernet Cable

Description:

Product Features:Gigabit Ethernet cables is a general term for Ethernet cables supporting transmission rates of 1 Gbps and above. They enable high-speed data transmission and use oxygen-free copper conductors to reduce attenuation, and come with shielding structures.

Application:Gigabit Ethernet cables is widely used to connect computers, routers and switches, building local area networks (LANs) for homes, offices and data centers.


Product Detail

Product Tags

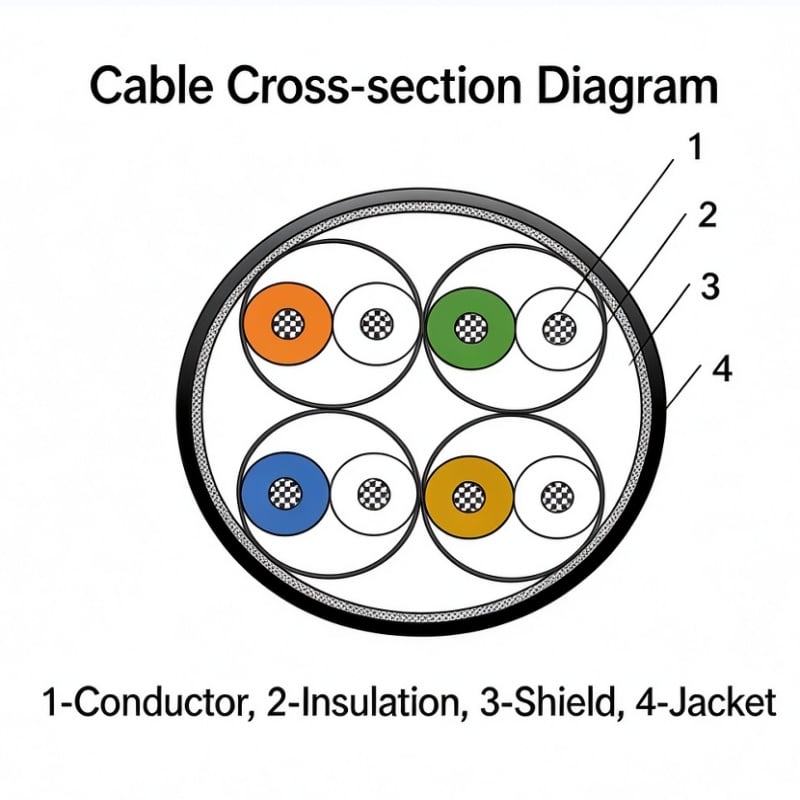

Product Construction Parameters

Product Performance Parameters

Product Part No. Product Performance
Electrical Properties Mechanical Properties Environmental Properties
Characteristic Impedance Operating Frequency(MHz) Attenuation（≤dB/m） Data Transmission Rate Voltage Withstand
(Conductor-Conductor)		 Voltage Withstand
(Conductor-Shield)		 Bending Radius Mold Resistance Flame Retardant
HSDCS-100F-2*24F-5 100±10 10 0.099 69 2.0kV 1.5kV 10D Class II strains, *Scopulariopsis brevicaulis*, Grade 1 or better. Compliant with VW-1
50 0.222
100 0.321
200 0.469
500 0.802
1000 1.198
1250 1.358
1500 1.543
2000 1.790
HSDCS-100F-2*26F-5 100±10 10 0.109 69 2.0kV 1.5kV 10D Class II strains, *Scopulariopsis brevicaulis*, Grade 1 or better. Compliant with VW-1
50 0.244
100 0.353
200 0.516
500 0.883
1000 1.317
1250 1.494
1500 1.698
2000 1.969
HSDCS-100F-2*30F-5 100±10 10 0.120 69 1.5kV 1.5kV 10D Class II strains, *Scopulariopsis brevicaulis*, Grade 1 or better. Compliant with VW-1
50 0.269
100 0.388
200 0.568
500 0.971
1000 1.449
1250 1.643
1500 1.867
2000 2.166
HSDCS-100F-4*24F-5 100±10 10 0.099 69 2.0kV 1.5kV 10D Class II strains, *Scopulariopsis brevicaulis*, Grade 1 or better. Compliant with VW-1
50 0.210
100 0.309
200 0.457
500 0.765
1000 1.049
1250 1.173
1500 1.296
2000 1.506
HSDCS-100F-4*26F-5 100±10 10 0.109 69 2.0kV 1.5kV 10D Class II strains, *Scopulariopsis brevicaulis*, Grade 1 or better. Compliant with VW-1
50 0.231
100 0.340
200 0.502
500 0.842
1000 1.154
1250 1.290
1500 1.426
2000 1.657
HSDCS-100FK-2*24FK-5 100±10 10 0.099 69 2.0kV 1.5kV 10D Class II strains, *Scopulariopsis brevicaulis*, Grade 1 or better. Compliant with VW-1
50 0.222
100 0.321
200 0.469
500 0.802
1000 1.198
1250 1.358
1500 1.543
2000 1.790
HSDCS-100FK-2*26FK-5 100±10 10 0.120 69 2.0kV 1.5kV 10D Class II strains, *Scopulariopsis brevicaulis*, Grade 1 or better. Compliant with VW-1
50 0.254
100 0.373
200 0.553
500 0.926
1000 1.270
1250 1.419
1500 1.569
2000 1.822
HSDCS-100FK-2*30FK-5 100±10 10 0.131 69 1.5kV 1.5kV 10D Class II strains, *Scopulariopsis brevicaulis*, Grade 1 or better. Compliant with VW-1
50 0.279
100 0.411
200 0.608
500 1.019
1000 1.397
1250 1.561
1500 1.725
2000 2.005
HSDCS-100FK-4*24FK-5 100±10 10 0.099 69 2.0kV 1.5kV 10D Class II strains, *Scopulariopsis brevicaulis*, Grade 1 or better. Compliant with VW-1
50 0.210
100 0.309
200 0.457
500 0.765
1000 1.049
1250 1.173
1500 1.296
2000 1.506
HSDCS-100FK-4*26FK-5 100±10 10 0.109 69 2.0kV 1.5kV 10D Class II strains, *Scopulariopsis brevicaulis*, Grade 1 or better. Compliant with VW-1
50 0.231
100 0.340
200 0.502
500 0.842
1000 1.154
1250 1.290
1500 1.426
2000 1.657
