RS485 Cable

Description:

Product Features:RS-485 cables is industrial serial communication bus cables that comply with the RS-485 standard.RS-485 cables adopt twisted-pair differential transmission with a characteristic impedance of 120Ω. They support long-distance communication (up to 1200 meters) and multi-drop networking, and offer strong common-mode noise immunity.

Application:RS-485 cable is used in industrial automation (connections between PLCs and sensors), building automation, smart instruments and security systems.

Send email to us

Product Detail

Product Tags

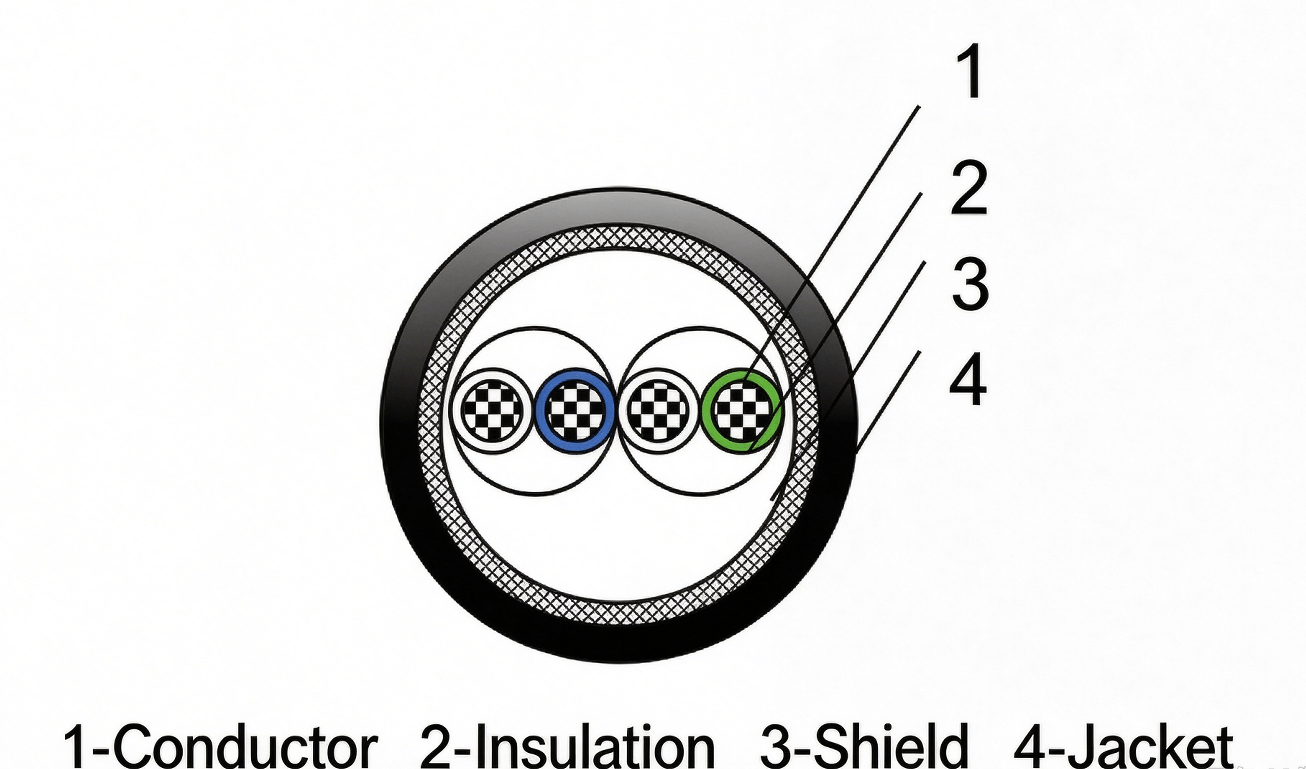

Product Construction Parameters

Product Performance Parameters

Product Part No.	Product Performance
	Electrical Properties						Mechanical Properties	Environmental Properties
	Characteristic Impedance	Operating Frequency(MHz)	Attenuation（≤dB/m）	Data Transmission Rate	Voltage Withstand (Conductor-Conductor)	Voltage Withstand (Conductor-Shield)	Bending Radius	Mold Resistance	Flame Retardant
RS485S-120F-2220F-3	120±20	100	0.239	69	2.0kV	1.5kV	10D	/	Compliant with VW-1
RS485S-120F-2222F-3	120±20	100	0.281	69	2.0kV	1.5kV	10D	/	Compliant with VW-1
RS485S-120F-2224F-3	120±20	100	0.348	69	2.0kV	1.5kV	10D	/	Compliant with VW-1
RS485S-120F-2226F-3	120±20	100	0.461	69	2.0kV	1.5kV	10D	/	Compliant with VW-1
RS485S-120F-2228F-3	120±20	100	0.758	69	1.5kV	1.5kV	10D	/	Compliant with VW-1
RS485S-120FK-2220FK-3	120±20	100	0.263	69	2.0kV	1.5kV	10D	Class II strains, Scopulariopsis brevicaulis, Grade 1 or better.	Compliant with VW-1
RS485S-120FK-2222FK-3	120±20	100	0.310	69	2.0kV	1.5kV	10D	Class II strains, Scopulariopsis brevicaulis, Grade 1 or better.	Compliant with VW-1
RS485S-120FK-2224FK-3	120±20	100	0.383	69	2.0kV	1.5kV	10D	Class II strains, Scopulariopsis brevicaulis, Grade 1 or better.	Compliant with VW-1
RS485S-120FK-2226FK-3	120±20	100	0.507	69	2.0kV	1.5kV	10D	Class II strains, Scopulariopsis brevicaulis, Grade 1 or better.	Compliant with VW-1
RS485S-120FK-2228FK-3	120±20	100	0.833	69	1.5kV	1.5kV	10D	Class II strains, Scopulariopsis brevicaulis, Grade 1 or better.	Compliant with VW-1
