LVDS Cable

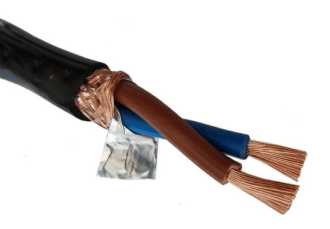

LVDS Cable Featured Image
  • LVDS Cable
  • LVDS Cable

Description:

Product Features:LVDS cables is high-speed data transmission cables for Low Voltage Differential Signaling. Adopting differential transmission technology, they feature high data rate, low power consumption, low signal delay and strong anti-interference capability, with a characteristic impedance typically of 100Ω

Application:LVDS cable is widely used in high-speed signal transmission fields such as aerospace, missile systems, industrial automation and medical imaging equipment.


Product Detail

Product Tags

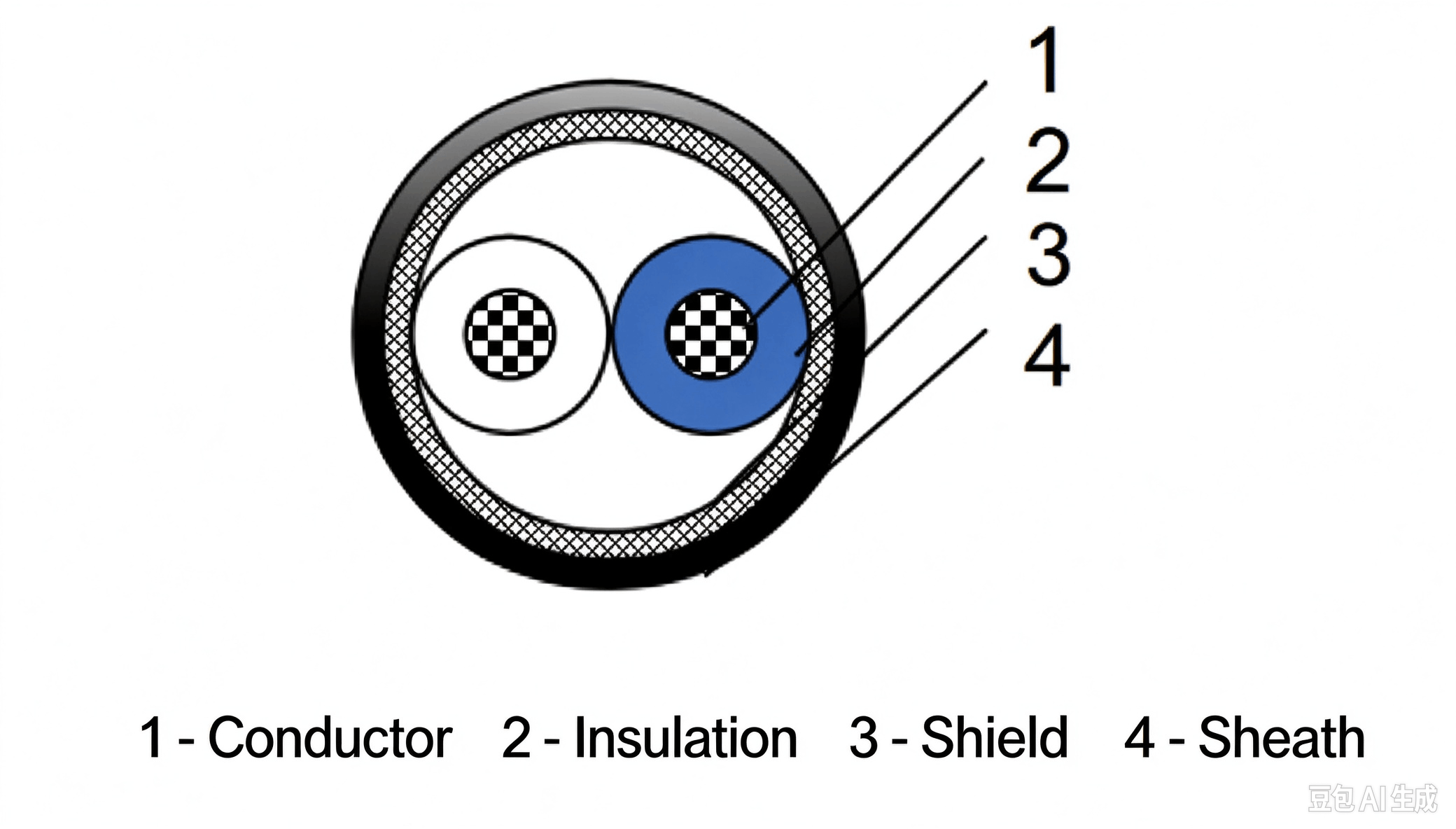

Product Construction Parameters

Product Performance Parameters

Product Part No. Product Performance
Electrical Properties Mechanical Properties Environmental Properties
Characteristic Impedance Operating Frequency(MHz) Attenuation（≤dB/m） Data Transmission Rate Voltage Withstand
(Conductor-Conductor)		 Voltage Withstand
(Conductor-Shield)		 Bending Radius Mold Resistance Flame Retardant
LVDSS-100FR-2*22FK-1 100±10 10MHz 0.062 75 2.0kV 1.5kV 10D Class II strains, *Scopulariopsis brevicaulis*, Grade 1 or better. Compliant with VW-1
100MHz 0.190
LVDSS-100FR-2*24FK-1 100±10 10MHz 0.077 75 2.0kV 1.5kV 10D Class II strains, *Scopulariopsis brevicaulis*, Grade 1 or better. Compliant with VW-1
100MHz 0.260
LVDSS-100FR-2*26FK-1 100±10 10MHz 0.085 75 2.0kV 1.5kV 10D Class II strains, *Scopulariopsis brevicaulis*, Grade 1 or better. Compliant with VW-1
100MHz 0.311
LVDSS-100FR-2*28FK-1 100±10 10MHz 0.093 75 1.5kV 1.5kV 10D Class II strains, *Scopulariopsis brevicaulis*, Grade 1 or better. Compliant with VW-1
100MHz 0.342
